IEC 60529 Figure 6 IP Test Equipment Jet Nozzle For IPX5 IPX6

Minimum Order Quantity : 1 Set Price : Negotiatable
Packaging Details : Plastic box Delivery Time : 3 days
Supply Ability : 20 set per month
Place of Origin: China Brand Name: HeJin
Certification: calibration certificate (cost additional) Model Number: HH0804

Detail Information

Name: Handheld Jet Nozzle Standard: IEC60529
Material: Stainless Steel Usage: Water Ingress Protection Test
High Light:

IEC 60529 Jet Nozzle

,

IP Test Equipment Jet Nozzle

,

Jet Nozzle For IPX5

Product Description

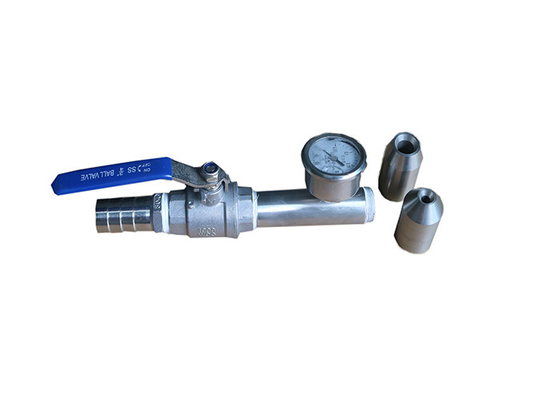

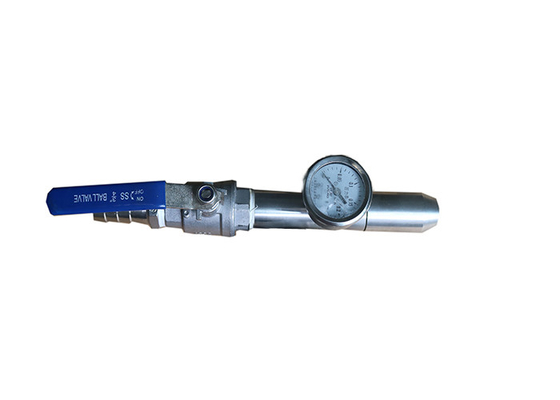

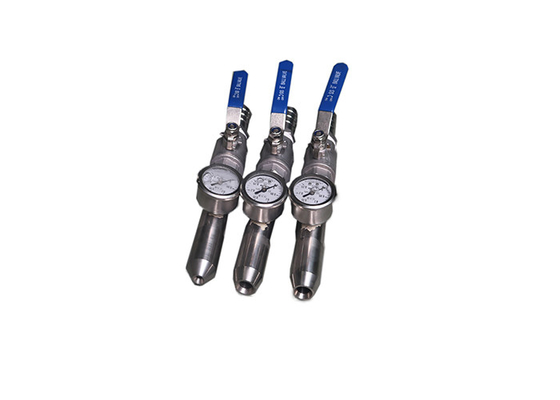

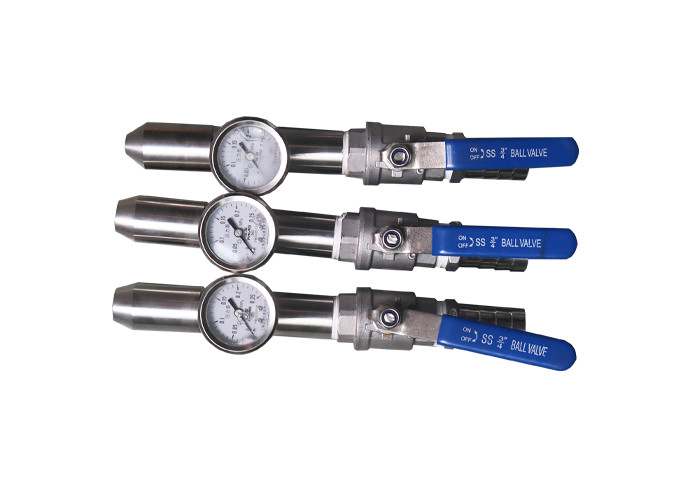

IEC 60529 Figure 6 IP Test Equipment Jet Nozzle For IPX5 IPX6



Standard:

IEC 60529 Degrees of protection provided by enclosures (IP Code) clause 14.2.5 Test for second characteristic numeral 5 with the 6,3 mm nozzle and clause 14.2.6 Test for second characteristic numeral 6 with the 1 2,5 mm nozzle and figure 6, IEC 60598-1 clause 9.2.6 and 9.2.7.



Test sample:

Electronic components, outdoor lamps, auto parts and etc.



Feature:

The handle and nozzle are made of stainless steel, good anti-rust performance.

The nozzle can be replaced to test for IPX5 or IPX6.

Can match the complete set of waterproof system.



Test conditions:

internal diameter of the nozzle: 6.3 mm(IPX5) and 12.5mm(IPX6);

– delivery rate: 12.5 l/min ± 5 % (IPX5) and 100 l/min ± 5 % (IPX6);

– water pressure: to be adjusted to achieve the specified delivery rate;

– core of the substantial stream: circle of approximately 40 mm(IPX5) and 120mm(IPX6) diameter at 2.5 m distance from nozzle;

– test duration per square metre of enclosure surface area likely to be sprayed: 1 min;

– minimum test duration: 3 min;

– distance from nozzle to enclosure surface: between 2,5 m and 3 m.



Parameter:

Model HH0804-1 HH0804-2
Item IPX5 IPX6
The nozzle diameter Ф6.3mm Ф12.5mm
Water flow 12.5±0.625L/min, Flow meter is adjustable 100±5 L/min, Flow meter is adjustable
The distance from jet nozzle to enclosure 2.5~3m
Testing time Not less than 1min/m²(not less than 3 mins)
Pressure gauge 0~0.25MPa
Site requirements

Dedicated IP waterproof test room whose width is more than 3m,

With good function of inflow and drainage. Wall installation

Water supply

Water flow rate > 12.5L/min±5% clean water without inclusion.

It can be achieved by the stainless steel water tank and pressurized equipment

Water flow rate >100L/min±5% clean water without inclusion.

It can be achieved by the stainless steel water tank and pressurized equipment


IEC 60529 Figure 6 IP Test Equipment Jet Nozzle For IPX5 IPX6 0
IEC 60529 Figure 6 IP Test Equipment Jet Nozzle For IPX5 IPX6 1
