Wall Mounted IEC 60529 Figure 4 IP Test Equipment Oscillating Tube

Wall Mounted IEC 60529 Figure 4 IP Test Equipment Oscillating Tube

Brand Name:	HeJin
Model Number:	HH0802
MOQ:	1 Set
Price:	Negotiatable
Supply Ability:	10 set per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

calibration certificate (cost additional)

Standard:

IEC60529

Application:

Rain Test

Power Supply:

AC220V 10% 50HZ

Function:

Ingress Protection Level Test,Testing For Water Resistance

Turntable Rotation Speed:

1r/min

Water Flow:

1~10L/min(adjustable)

Packaging Details:

Plywood

Highlight:

IP Test Equipment Oscillating Tube

IEC 60529 Test Equipment Oscillating Tube

Wall Mounted Test Equipment Oscillating Tube

Product Description

IEC 60529 Figure 4 IP Test Equipment Oscillating Tube For IPX3 IPX4 Wall-Mounted Type

Standard:

IEC 60529 Degrees of protection provided by enclosures (IP Code) clause 14.2.3 a) Test for second characteristic numeral 3 with oscillating tube and clause 14.2.4 a) Test for second characteristic numeral 4 with oscillating tube and figure 4, IEC 60598-1 clause 9.2.4.

Test sample:

Electronic components, outdoor lamps, auto parts and etc.

Feature:

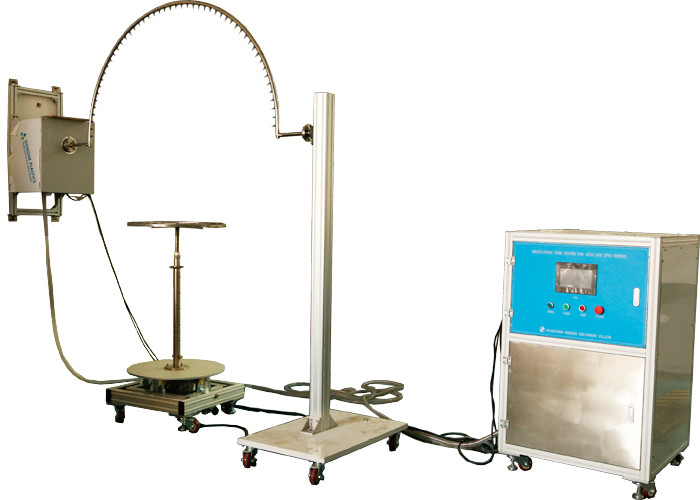

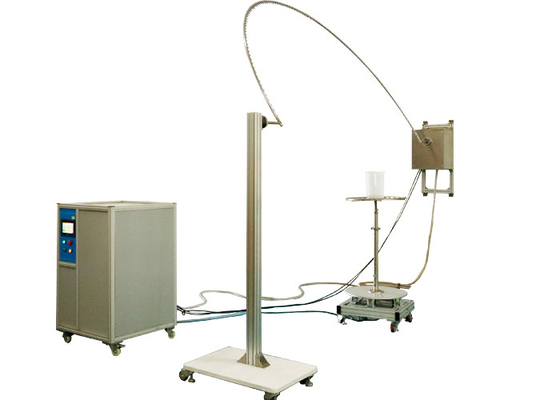

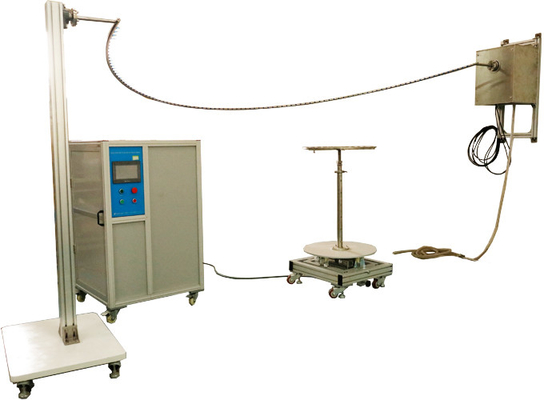

The system consists of oscillating tube, a control cabinet (include water tank) and a turntable. Using PLC control, motor drive oscillating tube to do the reciprocating motion at a certain angle, at the same time control the water flow, the turntable rotates at a certain speed, so that to make every side of the sample testing uniformly.

The water tank is equipped with a water level float valve to automatically control water intake, and has high and low water level alarm detection.

Parameter:

Item	Parameters
Input power	Single-phase AC220V,50Hz
Water supply	Water flow rate＞10L/min±5% clean water without inclusion. This device is equipped with clean water filtration unit
Control and operation	PLC intelligent control, 7 inch color touch screen operation

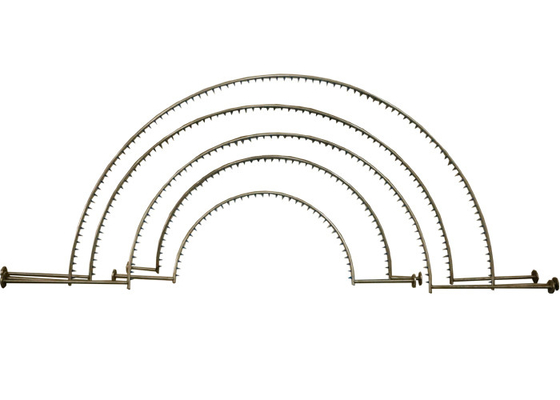

The size of the oscillating tube	R200 , R400, R600, R800, R1000, R1200, R1400, R1600mm Optional, made of stainless steel (The default configuration is 3 oscillating tubes)
Needle hole	Φ0.4mm
Included angle of two holes	IPX3: 120°; IPX4: 180°
Pendulum angle	IPX3: 120°(±60°); IPX4: 350°(±175°)
Raining speed	IPX3: 4 s/time(2×120°); IPX4: 12 s/time(2×350°);
Water flow	1-10L/min adjustable
Testing time	0.01S～99hours 59min, can be preset
Turntable	Diameter: Φ600mm; Rotate speed:1r/min, Can be paused at four aspects, Load bearing≤150kg electrical equipment
Pressure gauge	0~0.25MPa
Site requirements	Dedicated IP waterproof test room, The ground should be flat with illumination 10A waterproof leakage switch(or socket)used for equipment. With good function of inflow and drainage. Ground installation
Area covered	It is set according to the selected oscillating tube
