Sand And Dust Test Chamber Vacuum Pump 60-600 L/H IP Test Equipment HH0810
Contact Person : Anglia Chen
Phone Number : +86 17724266108
WhatsApp : +8617724266108
| Minimum Order Quantity : | 1 Set | Price : | Negotiatable |
|---|---|---|---|
| Packaging Details : | Plywood | Delivery Time : | 30 days |
| Supply Ability : | 10 set per month |
| Place of Origin: | China | Brand Name: | HeJin |
|---|---|---|---|
| Certification: | calibration certificate (cost additional) | Model Number: | HH0801 |
|
Detail Information |
|||
| Warranty: | 1 Year | Usage: | Water Ingress Protection Test,rain Simulation Testing,dripping Test Equipment,Rain Test Equipment |
|---|---|---|---|
| Product Name: | IPX1- 2 Water Dripping Test Equipment Drip Test Device,Drip Box Test Equipment | Standard: | IEC60529 |
| Testing Time: | 0-999.9min | Needle Hole: | Φ0.4mm |
| High Light: | IEC 60529 IP Test Equipment,IP Test Equipment For IPX1,IP Test Equipment For IPX2 |
||
Product Description

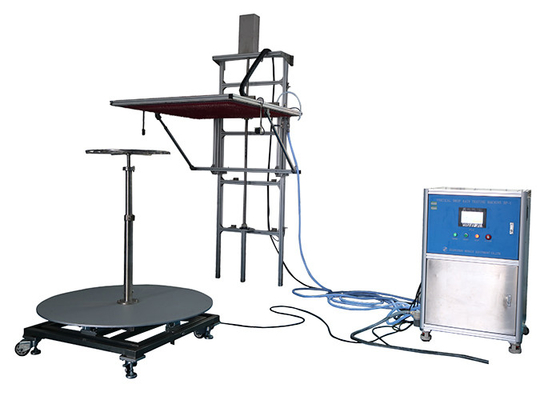

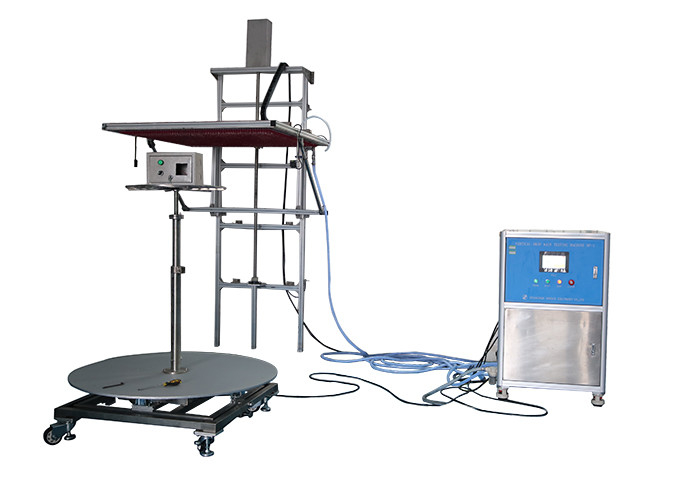

IEC 60529 IP Test Equipment Vertically Falling Water Drops For IPX1 IPX2
Standard:
IEC 60529 Degrees of protection provided by enclosures (IP Code) clause 14.2.1 Test for second characteristic numeral 1 with the drip box and clause 14.2.2 Test for second characteristic numeral 2 with the drip box and figure 3. IEC 60598-1 clause 9.2.3.
Test sample:
Electronic appliances, lamps, electrical cabinets, electrical components, car, motorcycle, electrical products (such as automotive instrument, all kinds of switches, micro motors, etc.). IP Test Equipment
Feature:

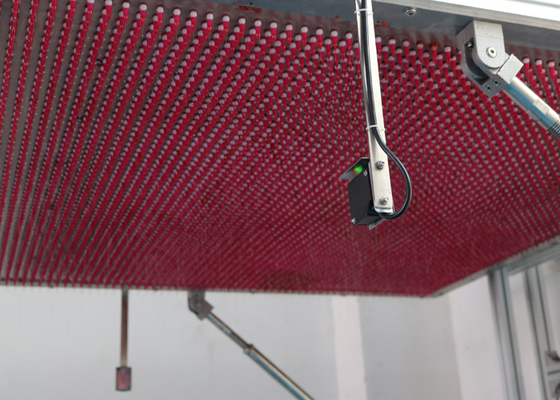

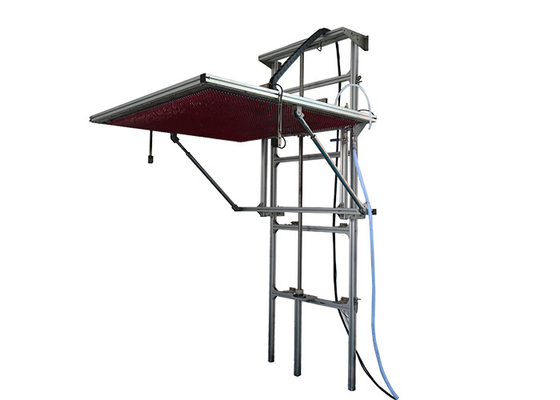

The frame is fixed on the wall to ensure the stable operation of the drip box; the screw lifting device has low resistance and controls the drip box to rise and fall smoothly; equipped with an infrared sensor, the dripping distance is accurate, and meets the standard requirements.
Parameters:
| Item | Parameter |
| Input power | Single-phase AC220V,50Hz |
| Water supply | Water flow rate＞10L/min±5% clean water without inclusion. This device is equipped with clean water filtration unit |
| Control and operation | PLC intelligent control, 7 inch color touch screen operation |
| Testing time | 0-999.9min |
| Water tank size | Outline dimension: WDH=1100×800×350mm, fully enclosed water tank, SUS304 material |
| Drip test area | 1000×600mm, customizable |
| Drip height | 200mm, adjustable |
| Dripping rate (Water flow) |
1+0.05 0mm/min or 3+0.05 0mm/min switchable, adopt digital controlled rainfall technology |
| Needle hole | Φ0.4mm |
| Distance between holes | 20mm |
| Rotary table | Diameter: Φ600mm Rotating speed1r/min. Can be paused 150s at four aspects, Load bearing≤150kg electrical equipment |
| Supporting sample | 15°bevel |
| Water tank lifting drive | Motor drive, screw guide rail to ensure the stable lifting and self-locking |
| Installation method | Wall mounted or floor type |
| Site requirements |
Dedicated IP waterproof test room, The ground should be flat with illumination 10A waterproof leakage switch(or socket)used for equipment. With good function of inflow and drainage. Ground installation |
| Area covered | The size can be set according to customer’s requirement |
