IEC 60332 1KW Metal Enclosure Flammability Testing Equipment

IEC 60332 1KW Metal Enclosure Flammability Testing Equipment

Brand Name:	HeJin
Model Number:	VF-1
MOQ:	1 set
Price:	Negotiable
Payment Terms:	L/C, T/T
Supply Ability:	15 set per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Calibration Certificate(cost additional)

Working Voltage:

220V/50Hz

Timing Device:

9999X0.1S

Burner Bunsen:

According To IEC60695-11-2

Flame Power:

1KW

Packaging Details:

Plywood

Highlight:

Metal Enclosure Flammability Testing Equipment

1KW Flammability Testing Equipment

IEC 60332 Flammability Testing Equipment

Product Description

IEC 60332 Metal Enclosure Flammability Testing Equipment For Vertical Flame Ignition Source Comply With IEC60695-11-2

Product information:

This apparatus conforms to the standard requirement of IEC60332-1-1 Tests on electric and optical fibre cables under fire conditions – Part 1-1: Test for vertical flame propagation for a single insulated wire or cable – Apparatus, IEC60332-1-2, IEC60332-1-3.

Application:

It is applicable for vertical combustion test of the single electric wire or cable. It is used to measure the combustion characteristic of insulation. The burning time can be preset according to the specimen. It is convenient to adjust the flame height.

Feature:

The test apparatus shall comprise the following:

a) a metal enclosure;

b) an ignition source;

c) a suitable chamber.

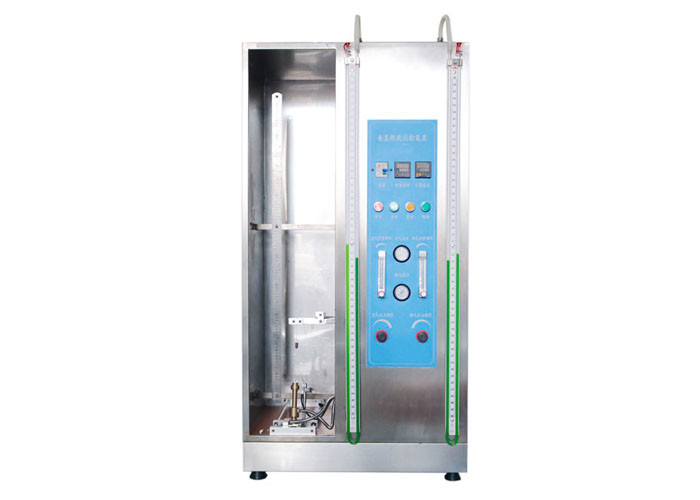

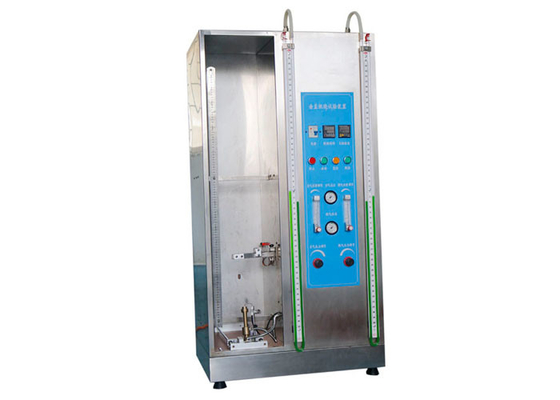

A metal enclosure (1 200 ± 25) mm high, (300 ± 25) mm wide and (450 ± 25) mm deep with open front and closed top and bottom, (see Figure 1 ), shall be used, in order to protect the test sample from draughts. It shall be constructed of rigid sheet metal.

The ignition source shall comply with IEC 60695-11 -2, which includes a method of confirmation of the test flame, except that the laboratory fumehood/chamber shall comply the below:

The metal enclosure and ignition source shall be contained within a suitable chamber, substantially free from draughts during the test duration, but with facilities for disposing of noxious gases resulting from burning. The chamber shall be maintained at a temperature of (23 ± 1 0) °C.

Technical parameters:

Working voltage	220V/50Hz
Control operation mode	Electrical control, button operation
Blast burner standard	IEC60695-11-2 Annex A, Burner opening:Φ7±0.05mm,made of brass
Gas flow and gas category	Mixture gas: 650±30mL/min propane；10±0.5L/min air,Dual flow meter adjustment
Burning time	9999X0.1S
Burning angle	Tilt 45°±2°, Adjustable

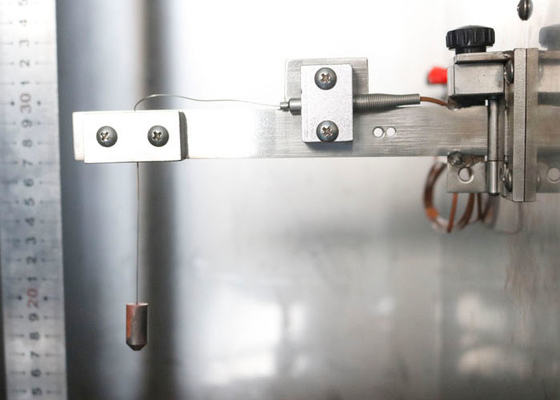

Test flame calibration	Temperature measuring copper head: 500W: Ф9mm±0.01mm, weight before drilling:10 ± 0 .05g
	Thermocouple: The American original Omega φ0.5 armour nickel-chromium/nickel aluminum wire K-Thermocouple, temperature resistance 1100°
	Distance between the bunsen burner port to temperature measuring copper block:95 mm
	Flame height: Inner flame:55±5mm, outer flame:180±10mm
	Temperature rise time from 100±5°C to 700°±3°C 45±5s
Combustion chamber	WDH: 300×450×1200±25mm
Gas	>95% propane or coal gas
Test sample	Length:600±25mm, distance from the bottom:50mm
Fixed horizontal support of the sample	2, distance:550mm
