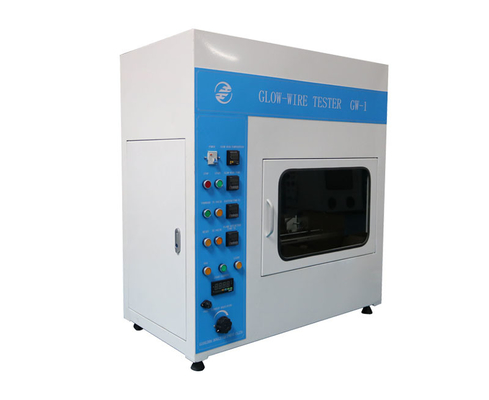

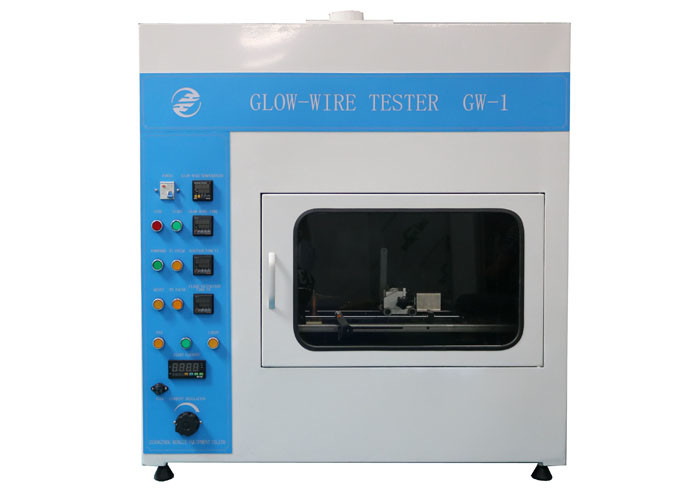

IEC60695-2-10 1kVA Button Operation Glow Wire Tester

IEC60695-2-10 1kVA Button Operation Glow Wire Tester

Brand Name: HeJin
Model Number: GW-1
MOQ: 1 set
Price: Negotiatable
Payment Terms: L/C, T/T
Supply Ability: 10 set /month
Detail Information
Place of Origin:
China
Certification:
calibration certificate (cost additional )
Standard:
IEC60695-2-10
Testing Time:
30s±0.1s
Heating Temperature:
500 ℃ - 960 ℃
Thermocouple:
1mm Import K Thermocouple
Glow-wire Diameter:
4.0 Mm ± 0.04 Mm
Glow-wire Material:
Nickel/Chromium (80/20)
Packaging Details:
plywood
Highlight:

1kVA Button Operation Glow Wire Tester

,

1kVA Glow Wire Tester

,

IEC60695-2-10 Glow Wire Tester

Product Description

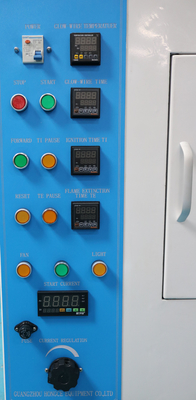

IEC60695-2-10 Flammability Testing Equipment Glowing/Hot-Wire Tester With Button Operation



Standard:

IEC60695-2-10 Fire hazard testing – Part 2-10: Glowing/hot-wire based test methods – Glow-wire apparatus and common test procedure;

IEC60695-2-11 Fire hazard testing – Part 2-11 : Glowing/hot-wire based test methods – Glow-wire flammability test method for end-products;

IEC60695-2-12 Fire hazard testing – Part 2-12: Glowing/hot-wire based test methods – Glow-wire flammability index (GWFI) test method for materials;

IEC60695-2-13 Fire hazard testing – Part 2-13: Glowing/hot-wire based test methods – Glow-wire ignitability test method for materials.



Application:

This device simulates the thermal stress caused by the heat source or ignition source such as the glowing elements or overload power within the short period of time, applicable to the fire hazard test for the electric and electronic products, household appliances and the materials, and also used for the no-flame ignition source fire test in order to measure the ignition temperature, flammability and heat-resistance index of the glow wire made of the relevant materials.



Feature:

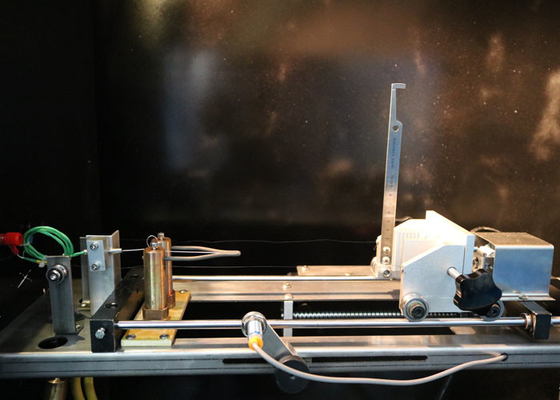

The test equipment adopts to solenoid valve switch to control the burning depth of test sample and equipped with measuring gauge. The test sample will break away automatically from glowing filament after reaching the set time. Also adopting the original imported UK LAB K type armour (Ф1mm) whose temperature resistance is up to 1100° (exceed 1050°of standard requirement), this device is with accuracy temperature control.



Parameters:

Glowing filament Ф4mm ± 0.04mm Ni/Cr(77/20) special standard ring shape,horizontal standing
Thermocouple 1mm import K thermocouple,the temperature resistance of armour is 1100 ℃ ( better than the standard of 1050 ℃ )
Ohmic heating temperature of glowing filament 500 ℃ - 960 ℃ ( digital display can be preset ) ,temperature fluctuation < 3 ℃
Specimen pressure on glowing filament 0.95N±0.1N( adjustable )
Maximum depth of heating 7mm ± 0.5mm
Specimen movement speed 10mm /s - 25mm /s
Testing time 30s±0.1s(1s - 999.9s digital display preset )
Thickness of ignite bedding board thickness10mm ,white pine board cover 12g /m 2 - 30g /m² standard silk paper
Volume of test site ≥ 0.5m 3 black background ,background illuminance ≤ 20Lx
Dimension and weight

W: 1105mm × D: 580mm × H: 1300mm

Gas vent:100mm ,140kg

Power 1kVA 220V±10% /50Hz
