Explosion-Proof High and Low Temperature Environmental Test Chamber with Customizable Dimensions for EV Battery and Automotive Safety Testing

Brand Name:	HeJin
Model Number:	HJ-EMTC-015
MOQ:	1 Set
Price:	Negotiatable
Payment Terms:	L/C,T/T
Supply Ability:	20 sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Third party calibration certificate(cost additional)

Cooling Method:

Air Cooling (water Cooling Optional)

Temperature Deviation:

±2.0℃

Heating Time:

-20℃ ~ +100℃ Approximately 35 Minutes Under No-load Conditions

Cooling Time:

+20℃ ~ -20℃ Approximately 45 Minutes Under No-load Conditions

Internal Dimensions:

500*400*500mm (customizable)

External Dimensions:

650*1665*1260mm (customizable)

Packaging Details:

Plywood

Highlight:

Explosion-Proof Environmental Test Chamber

High and Low Temperature Climate Chamber

Customizable Dimensions Temperature Test Chamber

Product Description

Explosion-Proof High and Low Temperature Test Chamber

Advanced Environmental Climate Chamber for EV Battery & Automotive Safety Testing

At HeJin, safety is the foundation of innovation. As manufacturers of our own equipment, we build durable testing chambers designed for longevity and reliability.

Our explosion-proof temperature chamber serves industries requiring advanced testing capabilities. Whether testing electric vehicle batteries or sensitive aerospace sensors, our chamber provides a stable, sealed environment for critical laboratory work. Built-in gas detection and pressure relief systems ensure comprehensive product testing without compromising safety.

International Reference Standards

IEC 60068-2-1/2: Environmental testing - Cold and Dry Heat
MIL-STD-810H: Department of Defense Test Method Standard for Environmental Engineering
ISO 16750-4: Road vehicles — Environmental conditions and testing for electrical and electronic equipment
UL 2580: Standard for Batteries for Use in Electric Vehicles
GB/T 2423: Environmental testing for electric and electronic products

Applications & Testing Scope

Testing Capabilities

Energy Storage: Lithium-ion battery packs, cells, and modules
Automotive: Electronic Control Units (ECUs), LED lighting, and powertrain sensors
Aerospace: Circuit boards and communication hardware exposed to extreme altitudes
Chemicals: Volatile samples requiring stable thermal aging

Test Items

High-Temperature Storage: Assessing material degradation
Low-Temperature Start-up: Testing battery discharge at sub-zero levels
Thermal Cycling: Simulating years of environmental stress in days
Safety Abuse Testing: Monitoring behavior during controlled thermal runaway

Technical Specifications

Specification	Details/Performance Data
Internal Volume	150 liters (customizable)
Temperature Range	-70°C to +150°C (customizable)
Temperature Fluctuation	±0.5°C
Temperature Uniformity	≤2.0°C
Heating Rate	3.0°C ~ 5.0°C/min (linear/non-linear)
Cooling Rate	1.0°C ~ 1.5°C/min (linear/non-linear)
Internal Material	SUS#304 high-temperature resistant stainless steel
External Material	Cold-rolled steel plate, anti-static powder coating
Insulation Layer	Ultra-fine glass fiber + polyurethane foam
Controller	7-inch programmable color touchscreen (PLC)
Cooling Mode	Mechanical compression/two-stage cascade compressor
Noise Level	≤ 70 dB
Power Supply	AC 380V; 50Hz; three-phase

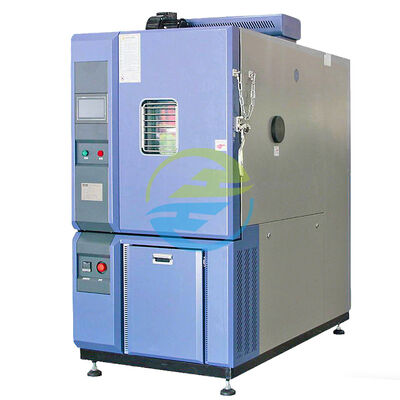

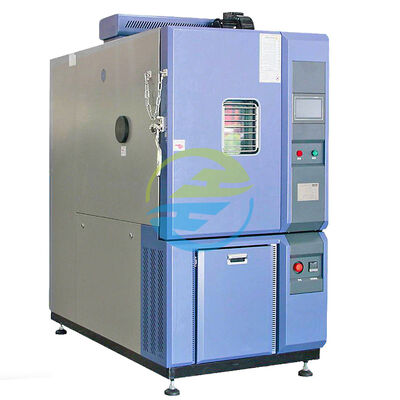

Product Images

Frequently Asked Questions

Q1: Can the chamber be customized for specific samples?

Yes. Chamber size, temperature range, safety level, and internal fixtures can all be customized.

Q2: Is the explosion-proof design certified?

The chamber is designed according to international safety standards and validated through internal testing. Third-party certification is available upon request.

Q3: Can it support long-duration testing?

Absolutely. The system is designed for continuous operation and long-cycle testing.

Q4: What industries typically use this chamber?

Automotive, battery manufacturing, electronics, aerospace, energy, and research laboratories.

Q5: How long is the delivery time?

Standard models typically ship within 4–6 weeks; customized solutions may vary.
