Compact High and Low Temperature Test Chamber for Precision Environmental Reliability Testing

Brand Name:	HeJin
Model Number:	HJ-EMTC-012
MOQ:	1 Set
Price:	Negotiatable
Payment Terms:	T/T,L/C
Supply Ability:	10 sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Third party calibration certificate(cost additional)

Internal Dimensions:

400*500*400 (Customizable)

External Dimensions:

650*1700*1260 (Customizable)

Internal Volume:

80L (Customizable)

Inner Cabinet Material:

Imported High-grade SUS304# Matte Stainless Steel Plate

Outer Cabinet Material:

Rigid Polyurethane Foam Insulation Layer (fire Rating B2) + Fiberglass (fire Rating A)

Control:

PLC + Touch Screen

Power Supply:

AC 380V/50Hz

Power:

7kW

Packaging Details:

Plywood

Highlight:

compact temperature test chamber

high low temperature chamber

precision environmental test chamber

Product Description

Compact High and Low Temperature Test Chamber for Precision Environmental Reliability Testing

80L Benchtop Environmental Test Chamber for Automotive Parts, Electronics & Materials

In modern product development, temperature is often the silent factor behind performance failure. Components that perform flawlessly at room temperature may crack, drift, or fail entirely under thermal stress.

The HeJin Small High and Low Temperature Test Chamber is developed specifically for precision testing of small to medium samples, offering stable temperature control, fast response, and long-term operational reliability.

Despite its compact footprint, the chamber meets international testing standards and supports a wide range of industries—from automotive electronics and EV components to sensors, PCBs, plastics, and composite materials.

Every unit is manufactured in-house by HeJin, ensuring strict quality control from design to final assembly.

International Reference Standards

IEC 60068-2-1 - Test A: Cold – Low temperature testing method for electrical and electronic products
IEC 60068-2-2 - Test B: Dry Heat – High temperature endurance and aging evaluation
IEC 60068-2-14 - Test N: Change of Temperature – Temperature cycling and thermal stress tests
ISO 16750-4 - Road vehicles – Environmental conditions and testing for electrical and electronic equipment
GB/T 2423.1 / GB/T 2423.2 - Chinese national standards equivalent to IEC temperature tests

Applications

Automotive electronic components
EV battery accessories and sensors
PCBs, ICs, connectors, relays
Plastic parts, rubber, composite materials
Small mechanical components
Research samples for universities and labs

Technical Parameters

Test Items	Parameters
Model	HJ-EMTC-012
Temperature Range	-20℃ ~ 150℃ (Customizable)
Temperature Fluctuation	±0.5℃
Temperature Uniformity	≤2.0℃
Temperature Deviation	±2.0℃
Heating Time	-20℃ ~ +100℃, approx. 35min, no load
Cooling Time	+20℃ ~ -20℃, approx. 45min, no load
Noise	≤70dB

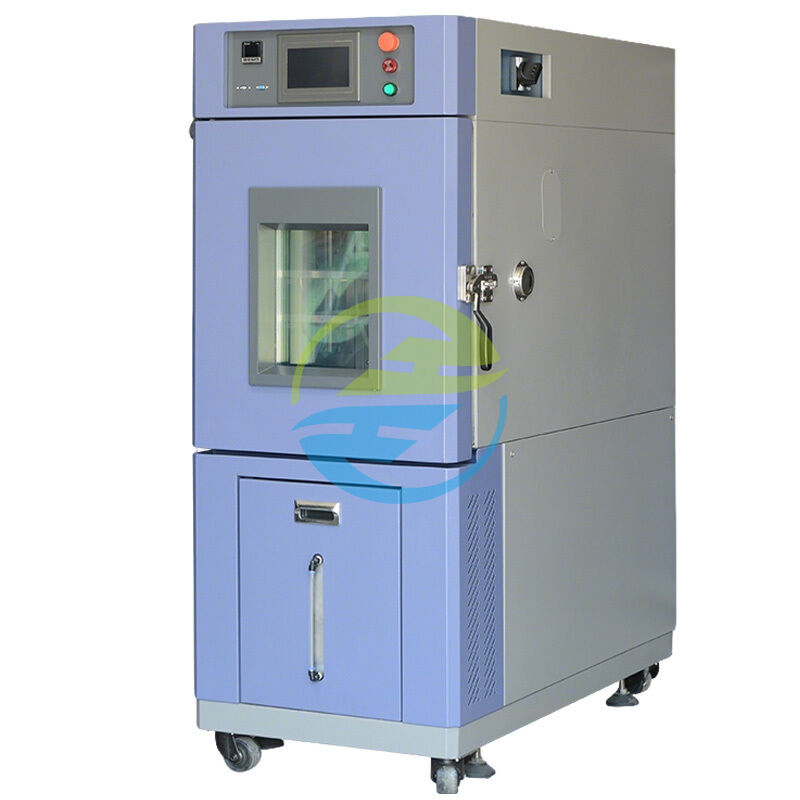

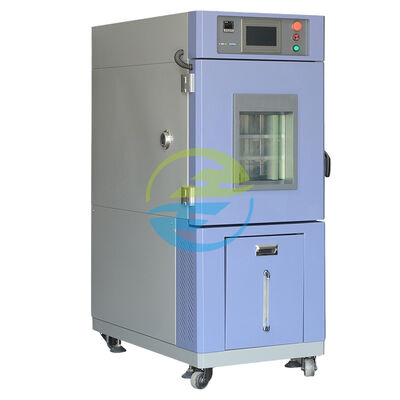

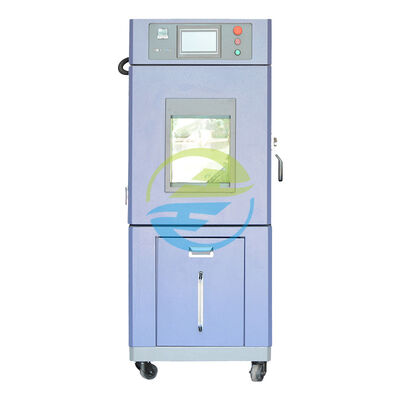

Product Images

Frequently Asked Questions

Q1: Is this chamber suitable for continuous aging tests?

Yes. The system is designed for long-duration operation with stable temperature control.

Q2: Can the temperature range be customized?

Absolutely. HeJin supports customized temperature ranges and control accuracy.

Q3: Is this chamber suitable for automotive standards testing?

Yes, it aligns with ISO 16750 and IEC 60068 standards commonly used in automotive testing.

Q4: How long is the delivery time?

Standard models usually ship within 20–45 working days.

Q5: Do you provide calibration support?

Yes, calibration guidance and third-party calibration compatibility are supported.
