Recovery Time ≤3S Helium Recovery Machine for Accuracy 5% Vacuum Testing Equipment

Product Description

Recovery Time ≤3S Helium Recovery Machine for Accuracy 5% Vacuum Testing Equipment

Product Introduction with Vacuum Testing Equipment:

The helium recovery machine is designed to work in conjunction with the vacuum chamber helium leak detection equipment. After the helium leak detection process is completed, the recovery machine collects the helium, pressurizes it, and stores it in a storage tank. The helium is then transported through piping to the helium inlet of the helium leak detection equipment. One helium recovery machine is capable of serving four helium leak detection devices, and each device can be individually controlled.

Product Features with Vacuum Testing Equipment:

1.Automatic Helium Refill Function:

When the helium concentration within the recovery system falls below the set value, it automatically replenishes helium from an external pure helium cylinder until the helium concentration reaches the preset level.

2.Helium Concentration Monitoring Function:

The recovery system is equipped with a helium concentration monitoring function. If the helium concentration drops below the set value, the system automatically initiates the refill function. If the refill is insufficient within the specified time, the system automatically triggers an alarm.

3.Filtering Function:

One or multiple stages of filters are installed at the outlets of the storage tank, evacuation pump, and air compressor to ensure high-reliability filtration.

Product Parameters with Vacuum Testing Equipment:

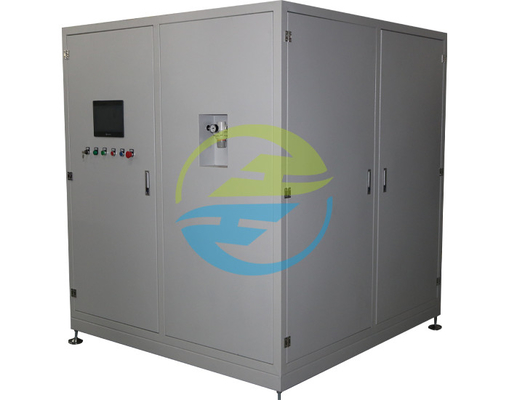

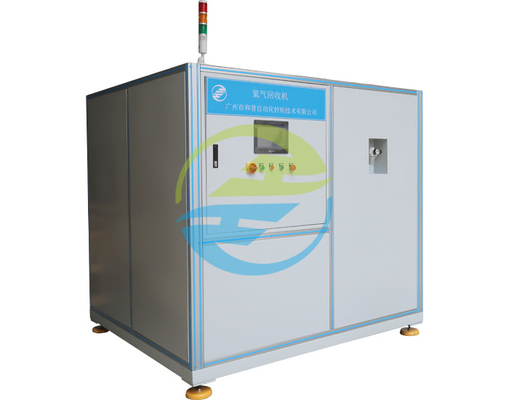

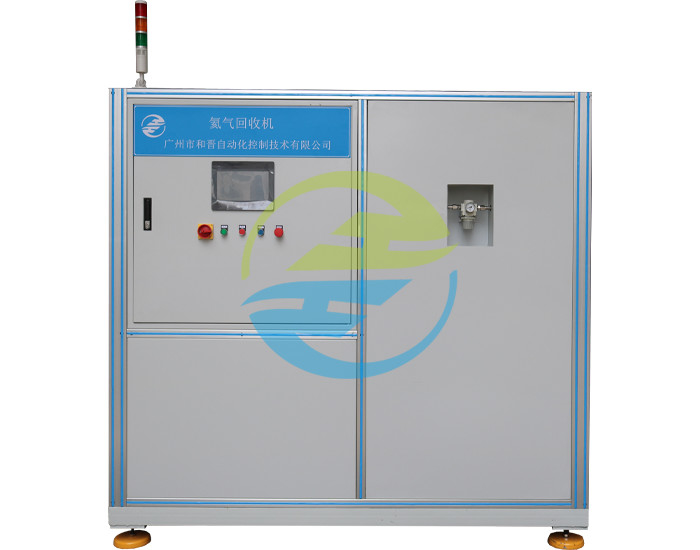

Product Image with Vacuum Testing Equipment:

Our advantage service:

We have our own developing and designing team, which ensure our own technological and innovative products for customers.
For any customers who have new idea about some products, just let us know, we can according to your idea provide a unique design of the products.

Technical support:

All our workers are experienced and skilled.

After sale service:
Our working team and sales teams can guarantee a fast and high efficiency after-sale service for our product sold to everywhere of the global.
