Total Power 75~400kW Vacuum Annealing Furnace With Vacuum Furnace Load Capacity 15000kg

Minimum Order Quantity : 1 Set Price : Negotiatable
Packaging Details : Plywood Delivery Time : 90 Days
Payment Terms : L/C, T/T Supply Ability : 10 Set per month
Place of Origin: China Brand Name: HeJin
Certification: Calibration Certificate(Cost Additional) Model Number: HJ-VF009

Detail Information

Vertical Maximum Dimension(mm): Φ2200×1800×2000 Vertical Maximum Furnace Load Capacity(kg): 15000
Vertical Minimum Dimension(mm): Φ800×800 Vertical Minimum Furnace Load Capacity(kg): 300
Horizontal Maximum Dimension(mm): Φ2600×1200×1200 Horizontal Maximum Furnace Load Capacity(kg): 6000
Horizontal Minimum Dimension(mm): Φ500×300×300 Horizontal Minimum Furnace Load Capacity(kg): 100
High Light:

15000kg Load Vacuum Annealing Furnace

,

400kW Vacuum Annealing Furnace

Product Description

Total Power 75~400kW Vacuum Annealing Furnace HJ-VF009 Vacuum Furnace Load Capacity 15000kg



Application Range with Vacuum Furnace:

The vacuum annealing furnace is specifically designed for small silicon steel laminated cores. It utilizes vacuum annealing technology to eliminate cold working stress in materials, restore internal grain structure, remove impurities from the core surface, and significantly enhance the magnetic conductivity of the core.



Product Features with Vacuum Furnace:

This product boasts a uniquely crafted design for its metal heaters and metal heat insulation screens, effectively addressing the issues of thermal deformation and damage caused by high temperatures. Additionally, the incorporated constant-rate cooling control system ensures precise temperature control and cooling during the annealing process of special materials, thereby guaranteeing the stability and reliability of product quality.



Product Parameters with Vacuum Furnace:

Furnace Type Effective Chamber Size (mm) Rated Furnace Temperature (℃) Furnace Load Capacity (kg) Total Power (kW)
Vertical Φ2200×1800×2000 900 15000 320
Φ1200×1200 1200 1000 220
Φ1000×1000 1200 500 180
Φ800×800 1200 300 150
Horizontal Φ2600×1200×1200 900 6000 200
Φ2600×1000×1200 900 5000 180
Φ2000×800×800 1600 1000 400
Φ1000×600×600 900 600 100
Φ800×500×500 900 400 80
Φ600×400×400 1200 200 95
Φ500×300×300 1200 100 75

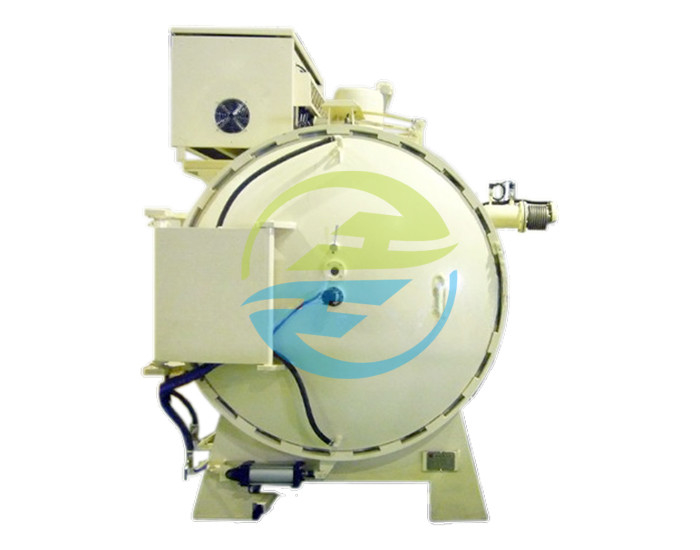

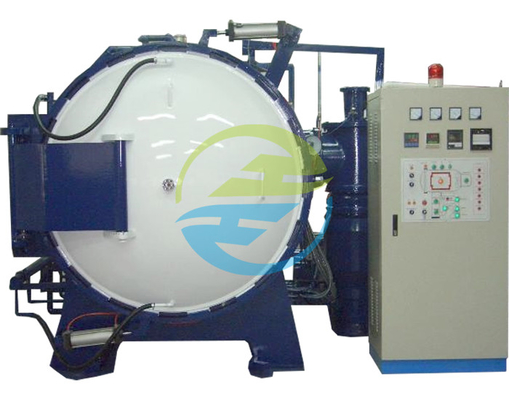

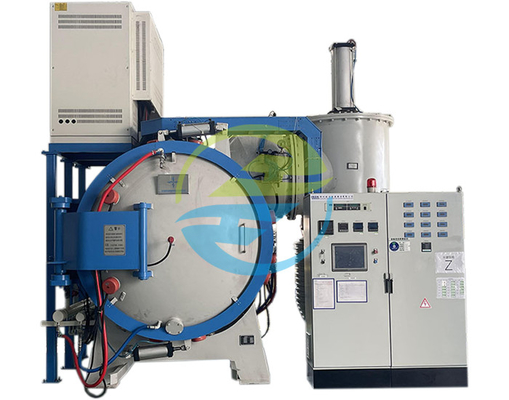

Product Image with Vacuum Furnace:

Total Power 75~400kW Vacuum Annealing Furnace With Vacuum Furnace Load Capacity 15000kg 0Total Power 75~400kW Vacuum Annealing Furnace With Vacuum Furnace Load Capacity 15000kg 1Total Power 75~400kW Vacuum Annealing Furnace With Vacuum Furnace Load Capacity 15000kg 2





Our advantage service:

We have our own developing and designing team, which ensure our own technological and innovative products for customers.
For any customers who have new idea about some products, just let us know, we can according to your idea provide a unique design of the products.



Technical support:

All our workers are experienced and skilled.


After sale service:
Our working team and sales teams can guarantee a fast and high efficiency after-sale service for our product sold to everywhere of the global.



About Us:

Guangzhou Hejin Automation Control Technology Co., Ltd. is a modern enterprise specialized in the research and development, manufacturing, and sales of technology-intensive industrial equipment. The company's leading products include vacuum helium leak detection equipment, automatic brazing machines for gas/liquid filling and recovery systems, lean production lines, and laboratory testing equipment. These products are widely used in industries such as automobiles, refrigeration, power, home appliances, electronics, pharmaceuticals, plumbing, military, and others. Led by Mr. Li Jianhe, an expert with profound knowledge in vacuum and automated testing equipment, the company possesses its own core technology and holds multiple invention and utility model patents. Relying on a high-level talent team, the company has adopted a new production model focused on development and design, assembly and debugging, as well as after-sales service, and provides products that are suitable for customers' specific usage and technical requirements. Since its establishment, the company has introduced various types of specialized equipment to the market, satisfying domestic market demand while also exporting to countries and regions in America, Europe, Asia, and Africa.
