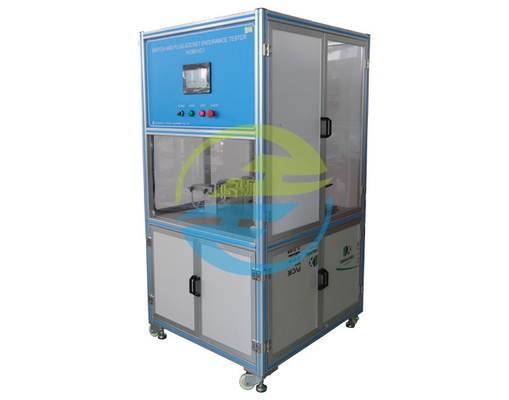

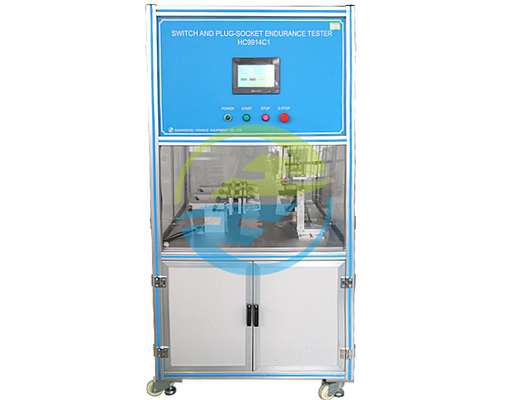

IEC Test Equipment Linear Stroke 100mm Switch Plug Socket Life Test Machine HC9914C1 (Three Workstations)

Product Description

Switch Plug Socket Life Test Machine HC9914C1 (Three Workstations)

Standards:

GB2099.1-2008 Clauses 20 and 21, GB15092.1, GB16915.1, IEC60884-1, IEC61058-1, IEC60669-1

Purpose:

For the on-off capability, breaking capacity, and normal operating life tests of switches, plugs, sockets, and couplers for household and similar fixed electrical installations.

Objective:

To assess whether switches, plugs, and sockets can withstand mechanical damage and electrical fatigue damage that may occur during normal use, as well as to check for contact adhesion, long-term closure or disconnection, excessive wear, and other harmful consequences.

Scope of Test Samples:

Switches, plugs, sockets, and couplers for household or similar uses.

Structure and Function: Equipped with an aluminum alloy frame and stainless steel cover plate, driven by a servo motor, precision ball screw and timing belt transmission, a 7-inch color LCD touch screen for user-friendly operation and powerful digital display functions, and a PLC control system. It can perform life tests on button switches, toggle switches, rocker switches, rotary switches, and plug sockets. It can also perform load tests with resistive, inductive, and capacitive loads, and has a corresponding control system. It can preset the number of tests, the current conduction time (opening time), the test rate, the test stroke, and the rotation angle (up to 15 angles can be set). It has a current display function that can display the sample's conduction current.

Product Parameters:
