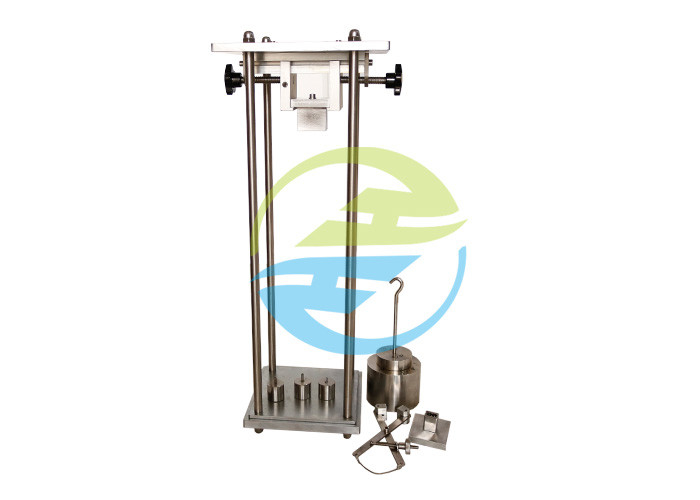

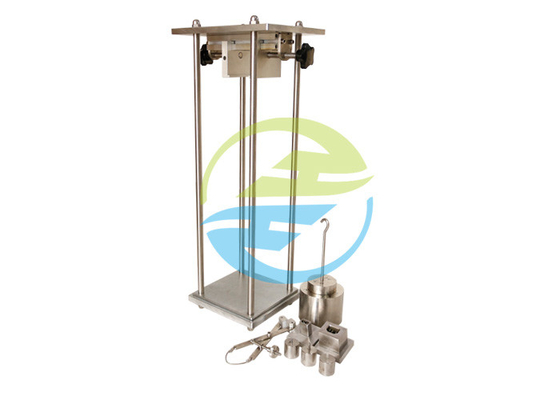

1 Stations IEC Test Equipment For Checking The Withdrawal Force

Minimum Order Quantity : 1 set Price : Negotiatable
Packaging Details : Plywood Delivery Time : 30 days
Payment Terms : L/C, T/T Supply Ability : 10 set per month
Place of Origin: China Brand Name: HeJin
Certification: Third party calibration certificate(cost additional) Model Number: HC9916

Detail Information

Product Name: Apparatus For Checking The Withdrawal Force Standards: IEC 60884-1, IEC 60320-1
Test Station: 1 Stations Test Sample: Plug And Socket-outlet, Couplers
Test Plug: Made Of Hardened Steel Operation Method: Manual Operation
High Light:

1 Stations IEC Test Equipment

,

Withdrawal Force IEC Test Equipment

Product Description

IEC Test Equipment Apparatus For Checking The Withdrawal Force



Standard of Apparatus For Checking The Withdrawal Force:

IEC 60320-1 ‘Appliance couplers for household and similar general purposes – Part 1: General requirements’ clause 16 and figure 3;

IEC 60884-1 ‘Plugs and socket-outlets for household and similar purposes – Part 1: General requirements’ clause 22, table 16 and figure 18.



Application of Apparatus For Checking The Withdrawal Force:

The construction of accessories shall allow the easy insertion and withdrawal of the plug, and prevent the plug from working out of the socket-outlet in normal use.

The construction of appliance couplers shall allow the easy insertion and withdrawal of the connector/appliance outlet, and prevent the connector/appliance outlet from working out of the appliance inlet/plug connector in normal use.



Parameter of Apparatus For Checking The Withdrawal Force:

1. Test plug: made of hardened steel, provide 3 test plugs and 2 test pins

2. Weights: one set. Superposition can be achieved 100N, the force applied by added weight of 1/10 test force

3. Operation: manual

4. With a safety rope, prevent the drop of test plug



Table 16 – Maximum and minimum withdrawal force for plugs and socket-outlets

Ratings of the accessory

Number of the

poles of the

accessory

Withdrawal force

N

Multi-pin

gauge

maximum

Multi-pin

gauge

maximum

Single-pin

gauge

maximum a

Up to and including 13 A 2 40 1.5 17
3 50
5 70
Up to and including 13 A 2 50 2.0 25
3 54
More than 3 70
Above 16 A up to and including 32 A 2 80 3.0 27
3 80
More than 3 100
a These withdrawal forces are only for testing the resilient earthing contact assembly of a plug.
