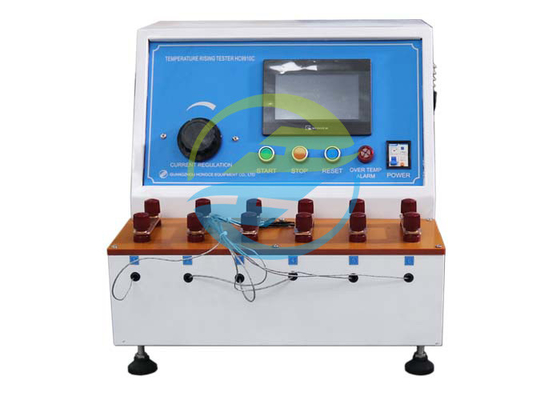

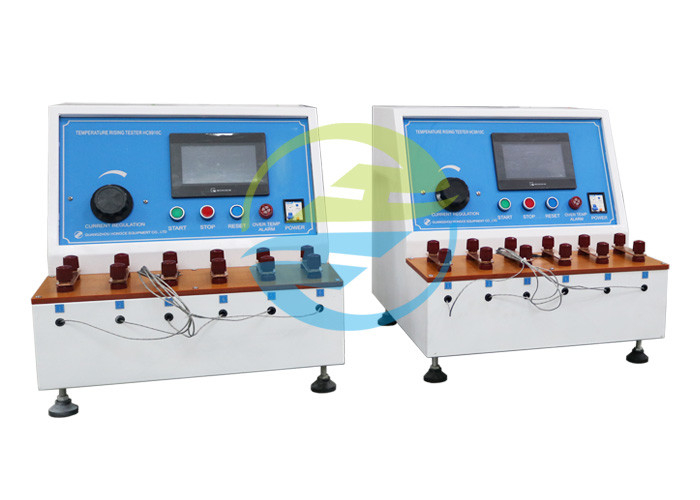

PLC Control 0 - 125A Temperature Rise IEC Test Equipment 60884 Six Stations

Minimum Order Quantity : 1 set Price : Negotiatable
Packaging Details : Plywood Delivery Time : 40 days
Payment Terms : L/C, T/T Supply Ability : 10 set per month
Place of Origin: China Brand Name: HeJin
Certification: Third party calibration certificate(cost additional) Model Number: HC9910C

Detail Information

Product Name: Temperature Rise Tester Standards: IEC 60320-1, IEC 60884-1
Test Station: 6 Stations Temperature Range: Temperature Range 0-200°C
Current Range: 0-125A Test Voltage: <12V
High Light:

125A IEC Test Equipment

,

60884 IEC Test Equipment

,

125A temperature test equipment

Product Description

PLC Control Temperature Rise Tester IEC60884 Test Equipment Six Stations​



Standard of Temperature Rise Tester:

IEC 60884-1 Plugs and socket-outlets for household and similar purposes – Part 1: General requirements clause 19.

IEC 60320-1 Appliance couplers for household and similar general purposes – Part 1: General requirements clause 21.



Application of Temperature Rise Tester:

Socket-outlets and plugs, contacts and other current‐carrying parts shall be so designed as to prevent excessive temperature rise due to the passage of current.



Feature of Temperature Rise Tester:

The temperature rise tester is mainly used to test the plug device and its accessories around, such as dimmers, fuses, switches, power regulators, etc., and it cannot reach excessive temperatures during normal use. It adopts PLC intelligent control system, humanized touch screen operation interface, which makes the recording and display more accurate, with historical data recording and can be read via USB, sensor signal input with 6 work stations, over-temperature and overload protection with voice prompts, strong applicability and stable performance.



Parameter of Temperature Rise Tester:

Item Parameters
Test station 6
Test current 0-125A adjustable
Test voltage Less than 12V
Test time 0-9999s, preset
Temperature range 0-200°C
Power supply 240V, 50HZ
Test object Plug pin / connector / circuit board
Operator interface 7" colour LCD touch screen
Operating system PLC control
