IEC 60069-1 IEC Test Equipment Conductor Damage Degree Test Apparatus Rate 10 ± 2 R/Min
Contact Person : Tessa Huang
Phone Number : +86 18027403449
WhatsApp : +8618027403449
| Minimum Order Quantity : | 1 set | Price : | Negotiatable |
|---|---|---|---|
| Packaging Details : | Plywood | Delivery Time : | 40 days |
| Payment Terms : | L/C, T/T | Supply Ability : | 10 set per month |
| Place of Origin: | China | Brand Name: | HeJin |
|---|---|---|---|
| Certification: | Third party calibration certificate(cost additional) | Model Number: | HC9915B |
|
Detail Information |
|||
| Product Name: | Inductive / Resistive Load Box | Standards: | IEC 60669-1, IEC 60884-1 |
|---|---|---|---|
| Test Station: | 3 Stations | Voltage Range: | 0-300v |
| Current Range: | 0-30A | Capacitance: | 70uf, 140uf, 7.3uf Optional |
| Highlight: | 60669-1 IEC Test Equipment,3uf IEC Test Equipment,60669-1 iec tester |
||
Product Description

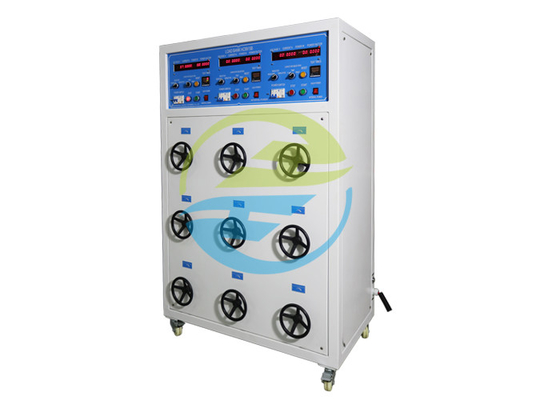

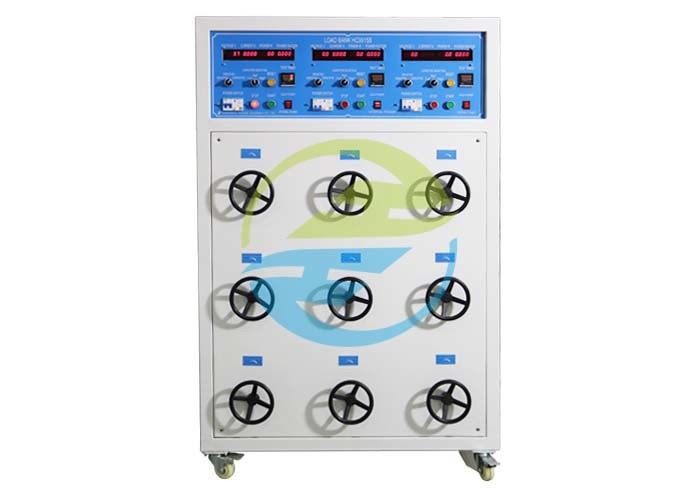

IEC 60669-1 Test Equipment Inductive Load Box Three Test Stations
Standard for Inductive Load Box:
IEC 60669-1: 2017 Switches for household and similar fixed electrical installations – Part 1: General requirements clause 18.2, 19.1 and 19.2.
IEC 60884-1 Plugs and socket-outlets for household and similar purposes – Part 1: General requirements clause 20and 21;
Application of Inductive Load Box:
It is applicable for household and similar fixed electrical installations switches and plug sockets breaking capacity and normal operation test. The purpose is assessing whether the switch is able to withstand the normal use of mechanical damage and electrical fatigue damage, and whether the contacts has adhesion phenomenon, long-term closed or disconnected phenomena, to examine whether the test samples excessive worn and have other harmful consequences.
Parameter of Inductive Load Box:
| Item | Parameter |
| Power Supply | AC380V, 50Hz |
| Voltage V | Range 0 ~ 300V accuracy ± 0.5% ± 2d |
| Current A | Range 0 ~ 30A accuracy ± 0.5% ± 2d |
| Power KW | Range 0～10KW, accuracy±05% |
| Power Factor | Range 0.3 to 0.999 accuracy ± 0.5% ± 2d |
| Load Selection | Resistive, Inductive and Capacitive load three in one, switchable |
| Capacitance Selection | 70uf, 140uf, 7.3uf optional |
| Output Mode | Each power, Interval power optional |
| Count/Preset | 0～999999 times, can be preset |
| Load power capacity | 3*10KVA |
| Output current limit | 30A, the load will be automatically cut off when over 32A |
| Output voltage limit | 300V, the load will be automatically cut off when over 320V |
| Atmospheric pressure | 80～106kpa |
| Ambient temperature | 5～40°C |
| Relative humidity | (20～90)%RH |
| Use environment | Requires no violent shaking, no vibration, no electromagnetic interference, no dust, no explosive, no corrosive gases, needs good heat dissipation place |
