Product Name: Self Ballasted Lamp Load Box Standards: IEC 60669-1
Test Station: 3 Stations Test Sample: Switches Intended For Self Ballasted Lamp (SBL) Loads
Voltage Range: 0-450v Material: Printed
High Light:

IEC self ballasted lamp

,

60669-1 self ballasted lamp

,

60669-1 self ballasted bulb

Product Description

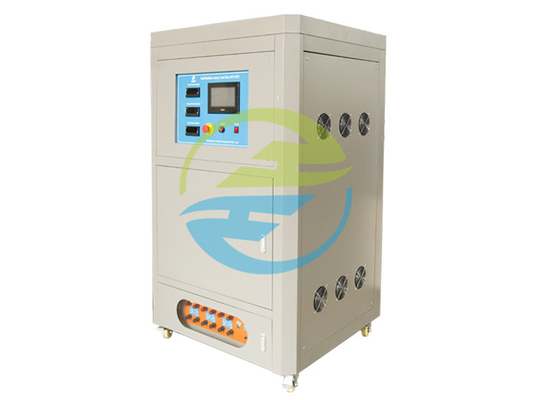

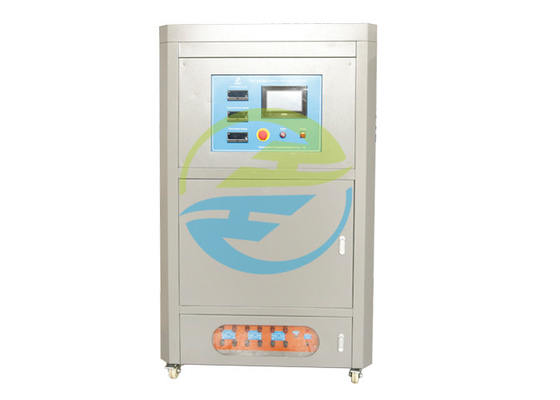

IEC 60669-1 Test Equipment Self Ballasted Lamp Load Box Three Test Stations



Standard for Self Ballasted Lamp Load Box:

IEC 60669-1: 2017 Switches for household and similar fixed electrical installations – Part 1: General requirements clause 19.3 Test for switches intended for self ballasted lamp loads.



Application of Self Ballasted Lamp Load Box:

Switches intended for self ballasted lamp (SBL) loads shall withstand, without excessive wear or other harmful effect, the electrical and thermal stresses occurring when controlling self ballasted lamp circuits. Compliance is checked by connecting the load as given in Figure 12b via the switch under test to a power supply.

The load shall be in accordance with Figure 12b. The values for the maximum peak value and the maximum I 2 t of the inrush current are given in Table 19.

Table 19 – Values for I peak and I 2 t depending on the type of distribution system

Rated current

[A]

Distribution

system [V]:

220/380

230/400

240/415

Ipeak

[A]

Distribution

system [V]:

220/380

230/400

240/415

I2t

[A2s]

Distribution

system [V]:

120/208

120/240

127/220

Ipeak

[A]

Distribution

system [V]:

120/208

120/240

127/220

I2t

[A]

Distribution

system [V]:

220/380

230/400

240/415

Rated power of the SBL circuit

[W]

Distribution

system [V]:

120/208

120/240

127/220

Rated power of the SBL circuit

[W]

Up to and including 10 108 2.8 162 5.9 100 60
Above 10 up to and including 13 142 5.5 162 5.9 150 60
Above 13 up to and including 16 170 9 200 11.5 200 100
Above 16 up to and including 20 192 13 231 18.5 250 150


Parameter of Self Ballasted Lamp Load Box:

Power supply 220V/50Hz
Digital voltage meter Range: 0 ~ 450V, accuracy: ±0.5%±2d
Digital power meter Range: 0~5A, accuracy: ±0.5%±2d
Output channel 3 channels
Counter 0~9999999 times



IEC 60669-1 Test Equipment Self Ballasted Lamp Bulb Load Box Three Test Stations 0
