Production Cycle Time ≥500 pcs/h Ceramic Component Multistation Helium Mass Spectrometer Leak Test Equipment
Contact Person : Tessa Huang
Phone Number : +86 18027403449
WhatsApp : +8618027403449
| Minimum Order Quantity : | 1 set | Price : | Negotiable |
|---|---|---|---|
| Packaging Details : | Plywood | Delivery Time : | 60 days |
| Supply Ability : | 1set /month |
| Place of Origin: | China | Brand Name: | HeJin |
|---|---|---|---|
| Certification: | Calibration Certificate(cost additional) | Model Number: | AM0060 |
|
Detail Information |
|||
| Vacuum Box Size: | 2m*2.5m*1.3m | Gas For Gross Leak Test: | Nitrogen |
|---|---|---|---|
| Pressure For Gross Leak Test: | 0.1-4.5Mpa | Cycle Time: | 20 Min/box |
| Equipment Alarm Leak Rate: | 1 G/year | Quick Clamps: | 1 Set |
| Highlight: | 0.1Mpa Leak Test Equipment,4.5Mpa Leak Test Equipment,4.5Mpa Helium Leak Test |
||
Product Description

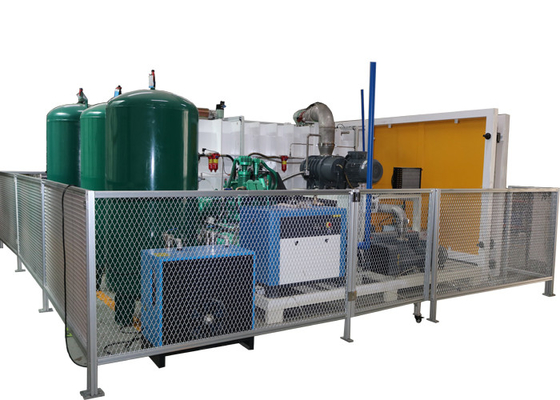

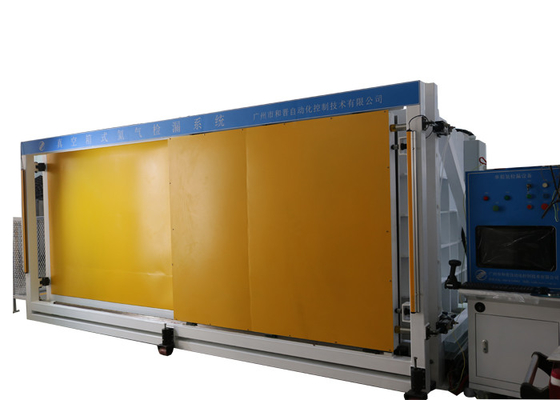

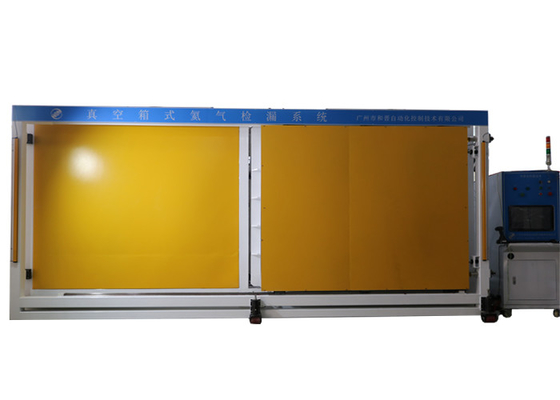

Ultra-large Product Vacuum Box Helium Leak Test Equipment
Product introduction:
The vacuum box helium leak detection recovery system is adopted. Helium is recycled to reduce costs. It detects the overall leak rate of the workpiece, and has high leak detection accuracy. The system is mature and reliable, and the layout is reasonable.Leak Testing Equipment
Features:
1. The core components of each unit are imported components. It can ensure the precision and high stability of the equipment.
2. The connecting pipes in the box are hoses and quick connectors, which can realize quick loading and unloading.
3. The automatic helium clearing function is a helium clearing method used by the high-precision leak detection system. Prolong the service life of the system.Leak Testing Equipment
4. The specially designed sealing fixture adopts two seals between the fixture and the workpiece, and the sealed space formed between the two seals is connected to the vacuum pump through an evacuation pipeline.
5. Convenience of system operation, the system adopts process automation technology, combines process equipment with electrical automatic control technology, and automatically controls the entire workpiece detection process by PLC and touch screen.
6. The system guarantees the quality of the product. The entire inspection process is automatically completed by the system, without the operator's judgment and execution, avoiding the influence of human factors on the inspection results, and ensuring the consistency, objectivity, stability and repeatability of the operation.Leak Testing Equipment
Parameters:
| Model | AM0060 |
| Workpiece to be inspected | Suitable for leak detection of various products |
| Vacuum box size | 2m*2.5m*1.3m |
| Number of vacuum boxes | 1 |
| The pipeline in the vacuum box | 2 |
| Gas for gross leak test | Nitrogen |
| Pressure for Gross Leak Test | 0.1-4.5Mpa(Adjustable) |
| Tracer gas | Helium |
| Equipment alarm leak rate | 1 g/year (5*10-7pa.m3/s) |
| Leak helium pressure | 0.1-4.5 Mpa(Adjustable) |
| Cycle time | 20 min/box (from closing box to opening box) |
| Customer Process Tube Channel Diameter | Inner diameter≥8mm |
| Workpiece loading and unloading | Manual loading and unloading Leak Testing Equipment |
| Data storage | With data storage function |
| Scan | With scan code gun Leak Testing Equipment |
| Quick Clamps/Connectors | 1 set |
