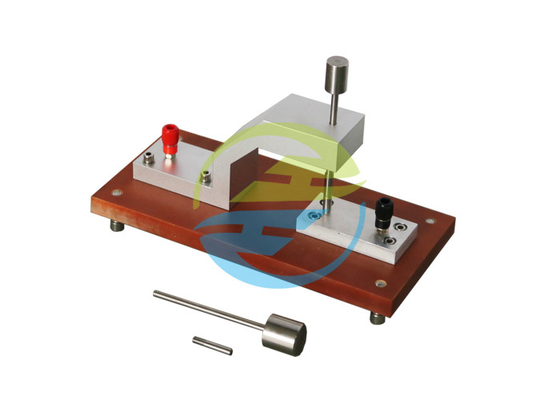

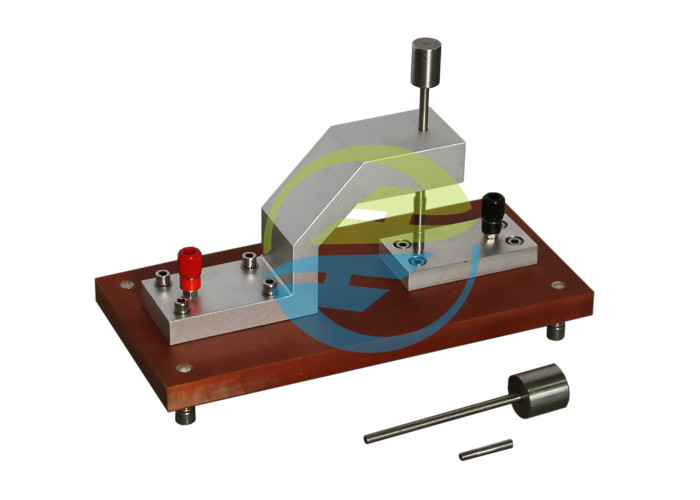

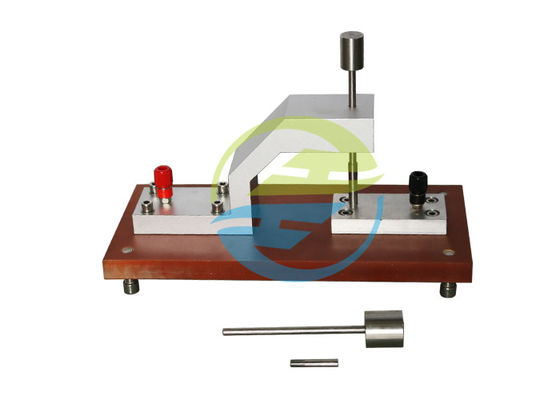

Dielectric Strength Test Instrument IEC 60065 Figure 6 Test Equipment

Dielectric Strength Test Instrument IEC 60065 Figure 6 Test Equipment

Dielectric Strength Test Instrument IEC 60065 Figure 6 Test Equipment

Brand Name: HeJin
Model Number: HX9801
MOQ: 1 Set
Price: Negotiatable
Payment Terms: T/T, L/C
Supply Ability: 10 set per month
Detail Information
Product Description
Ratings & Reviews
Detail Information
Place of Origin:
China
Certification:
Third party calibration certificate(cost additional)
Product Name:
Dielectric Strength Test Instrument
Working Station:
Single Station
Metal Pin Mass:
100g (50g Optional)
Metal Pin Diameter:
5 Mm ± 0.1 (Ф6.8 Optional)
Base:
Insulating Base
Edges Of The Test Pin:
Rounded With A Radius Of 0.5 Mm
Standard:
IEC 60065-1
Terminals For Test Voltage:
Two
Packaging Details:
Plywood
Highlight:

Dielectric Strength Test Instrument

,

IEC 60065 Strength Test Instrument

,

Figure 6 Test Equipment

Product Description

IEC 60065 Figure 6 Test Equipment Dielectric Strength Test Instrument



Standard:

IEC 60065-1 ‘Audio, video and similar electronic apparatus – Safety requirements’ clause 10.4.2 and figure 6 Dielectric Strength Test Instrument .



Application:

It is used to test the dielectric strength of the insulating materials.



Test sample:

Insulating materials. IEC Test Equipment



Parameter:

Metal pin mass 100g (50g optional)
Metal pin diameter 5 mm ± 0.1 (Ф6.8 optional)
Edges of the test pin Rounded with a radius of 0.5 mm
Base Insulating base
Terminals for test voltage Two

Dielectric Strength Test Instrument IEC 60065 Figure 6 Test Equipment 0
