Mandrel IEC Test Equipment 150N Force Manual Control

Brand Name:	HeJin
Model Number:	HX9804
MOQ:	1 set
Price:	Negotiatable
Payment Terms:	L/C, T/T
Supply Ability:	10 set per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Third party calibration certificate(cost additional)

Product Name:

Mandrel Test Device

Working Station:

Single Station

Test Weight:

50N*3PCS

Test Times:

3 Times

Test Force:

150N

Test Mothed:

Manual Control

Standard:

IEC 61558-1, IEC 60065-1

Usage:

Strength Testing Machine

Packaging Details:

Plywood

Highlight:

Mandrel IEC Test Equipment

150N IEC Test Equipment

Manual Control IEC Test Equipment

Product Description

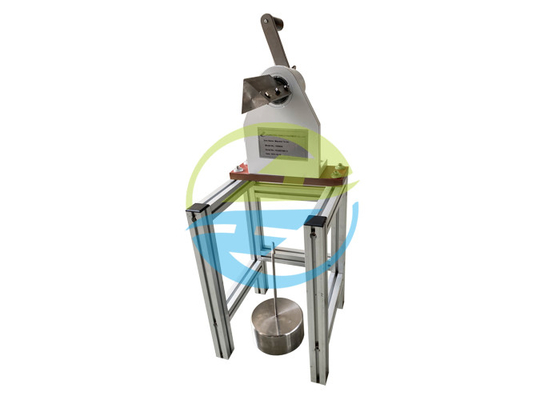

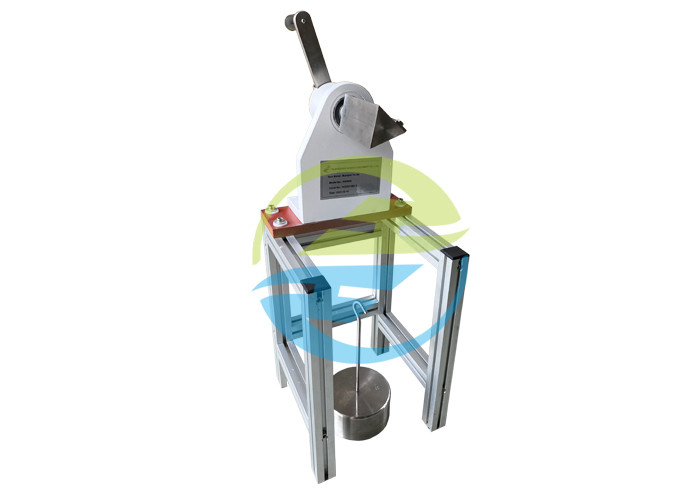

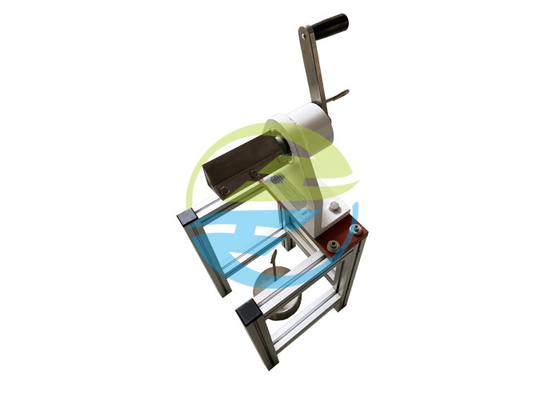

Mandrel Test Device IEC Test Equipment 150N Test Force Manual Control

Standard:

IEC 61558-1 ‘Safety of transformers, reactors, power supply units and combinations thereof – Part 1: General requirements and tests’ clause 26.3.4;

IEC 60065-1 ‘Audio, video and similar electronic apparatus – Safety requirements’ clause 8.21 and figure 14, figure 15, figure 16.

Application:

It mainly used for the insulating thin layer of the power transformer, power supply apparatus and similar products for mandrel test, mechanical strength and abrasion test. IEC Test Equipment

Feature:

The device has a mechanical position limit of 10° and 230° to ensure the accuracy of the test angle, and it also realize the simplification of operation method. The weight has a ring to prevent the sample from being pulled apart due to excessive force.

Parameter:

Test weight

50N*3PCS, can be combined to achieve 100N and 150N testing.

Test times

3 times

Test mothed

Manual control

IEC Test Equipment

Mandrel IEC Test Equipment 150N Force Manual Control 0

Mandrel IEC Test Equipment 150N Force Manual Control 1
