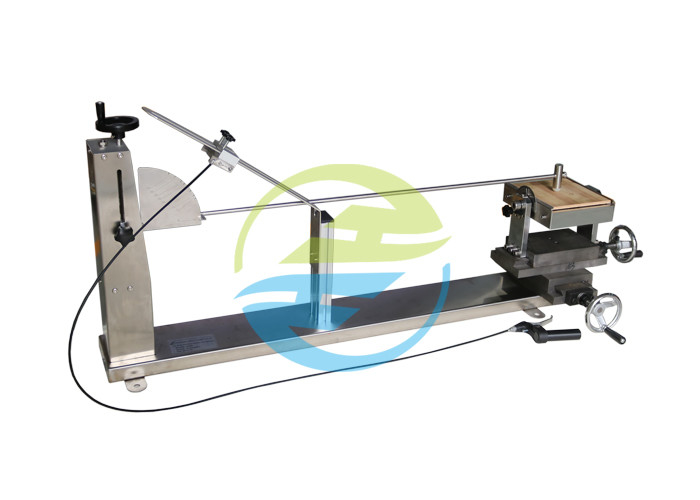

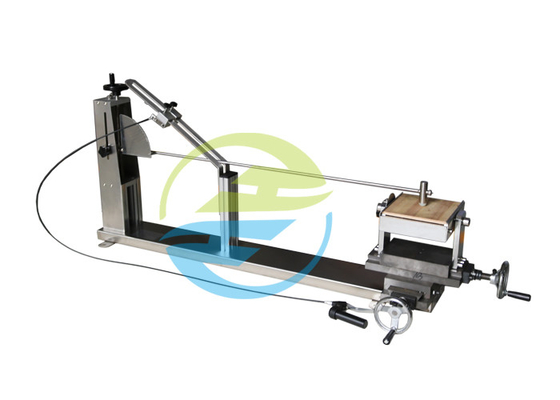

200g Striking IEC Test Equipment Pendulum Hammer Test Apparatus For Mechanical Strength

200g Striking IEC Test Equipment Pendulum Hammer Test Apparatus For Mechanical Strength

Brand Name: HeJin
Model Number: HC9921
MOQ: 1 set
Price: Negotiatable
Payment Terms: L/C, T/T
Supply Ability: 10 set per month
Detail Information
Place of Origin:
China
Certification:
Third party calibration certificate(cost additional)
Product Name:
Pendulum Hammer Test Apparatus
Pendulum Length:
1000mm
Release Mode:
Manual
Mounting Bracket:
Weight: 10 Kg ± 1 Kg
Standards:
IEC 60068-2-75, IEC60884-1
Mounting Plate:
175*175*8mm
Lead Time:
Within Very Short Time
Application:
Mechanical Strength Test For Accessories, Surface Mounting Boxes, Screwed Glands And Shrouds
Packaging Details:
Plywood
Highlight:

200g Striking IEC Test Equipment

,

Mechanical Strength IEC Test Equipment

,

Pendulum Hammer Test Apparatus

Product Description

IEC Test Equipment Pendulum Hammer Test Apparatus For Mechanical Strength



Standard:

IEC 60668-2-75-2014 Environmental testing – Part 2-75: Tests – Test Eh: Hammer tests clause 5 Test Eha: Pendulum hammer and Annex D;

IEC 60884-1 'Plugs and socket-outlets for household and similar purposes – Part 1: General requirements' clause 24.1, figure 22-26.



Application:

Accessories, surface mounting boxes, screwed glands and shrouds shall have adequate mechanical strength so as to withstand the stresses imposed during installation and use.

The specimens are checked by applying blows by means of the pendulum hammer test apparatus as described in IEC 60068-2-75 (test EHA), with an equivalent mass of 250 g. IEC Test Equipment



Parameter:

Model HC9921
Pendulum

Length: 1000mm

External diameter: 9mm

Wall thickness: 0.5 mm

Made by steel

Release mode Manual
Mounting bracket

Weight: 10 kg ± 1 kg

It is well-set and the Horizontal direction and the vertical direction can be adjusted. The whole bracket can be rotated 90°through the rotation axis.

Striking element 150g, equivalent mass 200g. (200g striking element for option). IEC Test Equipment
Mounted box

a sheet of plywood, 8 mm nominal thickness and approximately 175 mm square, secured at its top and bottom edges to a rigid bracket which is part of the mounting support.

200g Striking IEC Test Equipment Pendulum Hammer Test Apparatus For Mechanical Strength 0

Standards IEC 60068-2-75, IEC60884-1
