25mm Cone Shaped Articulated Test Finger Probe Hand 10.5 – 11.5 Year Age

Minimum Order Quantity :	1 set	Price :	Negotiatable
Packaging Details :	Cartoon Box	Delivery Time :	7 days
Payment Terms :	L/C, T/T	Supply Ability :	20 sets / per month

Place of Origin:	China	Brand Name:	HeJin
Certification:	calibration certificate (cost additional)	Model Number:	HT-U16

Detail Information
Product Name:	Articulate Probe With Flat And Cone Shaped Hand 10.5 – 11.5 Year Age	Standard:	UL 60335-2-24
Probe Material:	Stainless Steel	Middle Finger Length:	77mm
Middle Finger Diameter:	11.4mm	Hand Breadth (flat Hand Part):	62mm
Elbow To Wrist Length:	235mm	Cone Shaped Part At Finger Attachment:	25mm
Highlight:	Articulated Test Finger Probe , 25mm Cone Shaped Test Finger Probe

Product Description

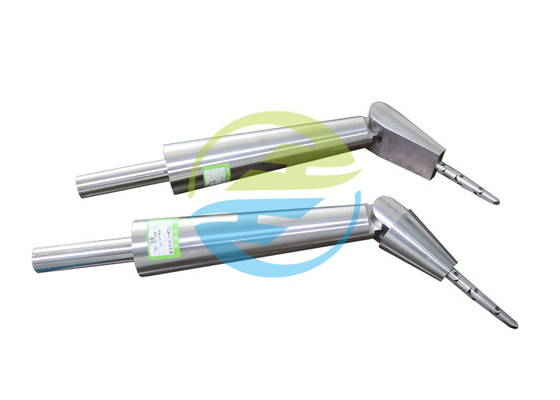

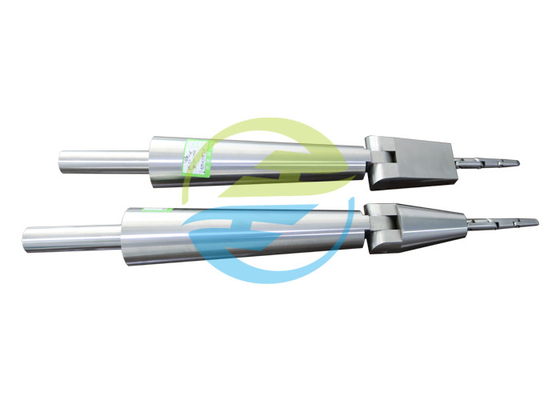

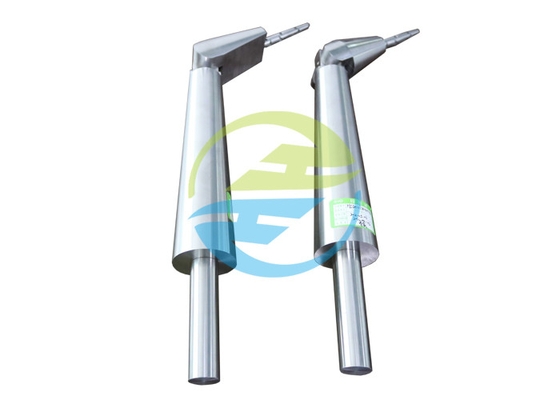

Articulate Probe With Flat And Cone Shaped Hand 10.5 – 11.5 Year Age

Standard:

UL 60335-2-24 Household and Similar Electrical Appliances – Safety – Part 2-24: Particular Requirements for Refrigerating Appliances, Ice-Cream Appliances and Ice-Makers, Annex 101.DVA, Figure 101. DVA.2

Application:

It is used for Hazard Assessment for Moving Parts; and Probes to Simulate Access to Hazardous Parts by Children.

When evaluating potential pinch points, i the probes of Figure 12DV, of the Part 1, Figure 101. DVA.1 and Figure 101. DVA.2 cannot penetrate the opening, or the maximum force exerted by the moving part onto the probe is less than 22,2 N (5 lbf) at any location ACCESSIBLE by the probe; Test Finger Probe

Parameter:

Item	Dimension description	Dimension mm
A	Middle finger length, 95 percentile	77
B	Middle finger diameter, 5 percentile	11.4
C	Hand length, 95 percentile	173
D	Elbow to wrist length, 95 percentile	235
E	Wrist diameter (circumference divided by pi), 5 percentile	37
F	Forearm diameter (circumference divided by pi), 5 percentile	57
G	Minimum hand CLEARANCE (cone shaped hand part), 5 percentile	49.4
H	Cone shaped part at finger attachment	25
I	Hand breadth (flat hand part), 5 percentile	62
J	Wrist breadth (used for the hand thickness – flat hand part), 5 percentile	29
K	Hand breadth at finger attachment (flat hand part)	46
L	Upper arm length, 95 percentile	a
Notes: 1 – The probes were designed with a center pin to rotate the hand with respect to the lower arm. That motion can be equivalently represented by rotating the probe. 2 – The finger "tip" is developed to match the dimensions of the UL articulated probe. The diameter from the tip to the first joint then tapers from the tip dimensions to the finger diameter. The joints are spaced equally along the finger length. 3 – The probe is designed to permit the hand to "bend" with respect to the arm using a hinge pin located 6 mm (0,24 in) from the hand length (wrist end) and the hand is restricted in bending not more than 90° with respect to the arm. ^aIf the upper arm is required to evaluate a part it shall consist of a flexible tube attached at the end of the lower arm, as the exact position of the elbow cannot be readily determined from the data points chosen. Test Finger Probe
