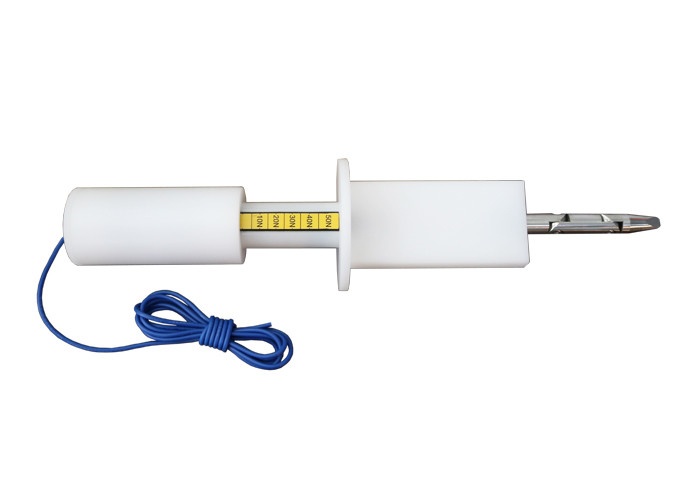

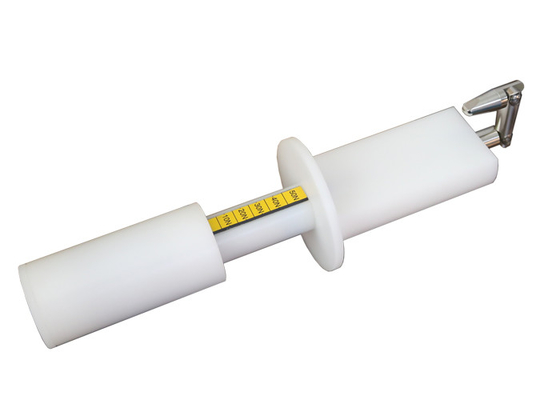

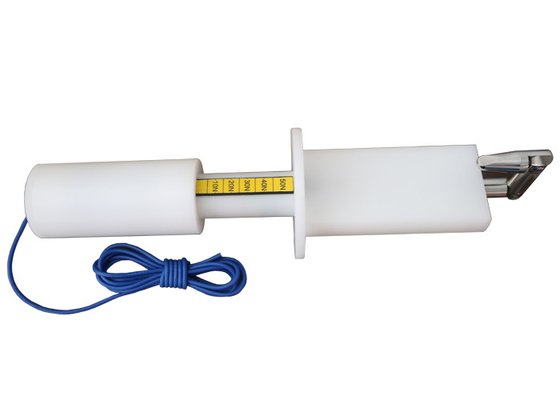

IEC 60529 Jointed Test Finger Probe Stainless Steel With 50N Force

Detail Information

Place of Origin:

China

Certification:

calibration certificate (cost additional)

Product Name:

Jointed Test Finger With Force

Standard:

IEC 60529, IEC 61032

Handle:

Nylon

Probe Material:

Stainless Steel

Finger Length:

80±0.2

Guard Diameter:

Ф75±0.2

Spherical:

R4±0.05

Cylindrical:

R2±0.05

Packaging Details:

Cartoon Box

Highlight:

Product Description

Test Finger Probe Access Probes of IEC 60529 Jointed Test Finger With 50N Force

Standard:

IEC 60529 Degrees of protection provided by enclosures (IP Code) Figure 1 – Jointed test finger.

IEC 61032 Protection of persons and equipment by enclosures –Probes for verification Figure 2–Test probe B.

And other standard such as IEC 60335-1, IEC60884-1, IEC 60598-1, IEC60065-1, IEC 62368-1 and etc.

Application:

It is used to verify protection of persons against access to hazardous live parts or hazardous mechanical parts. Test Finger Probe

Parameter:

Model	HT-I02	HT-I02T
Name	Jointed test finger	Jointed test finger With Force
Joint 1	30±0.2	30±0.2
Joint 2	60±0.2	60±0.2
Finger length	80±0.2	80±0.2
Fingertip to baffle	180±0.2	180±0.2
Cylindrical	R2±0.05	R2±0.05
Spherical	R4±0.05	R4±0.05
Fingertip cutting bevel angle	37^o 0 -10′	37^o 0 -10′
Fingertip taper	14^o 0 -10′	14^o 0 -10′
Test finger diameter	Ф12 0 -0.05	Ф12 0 -0.05
A-A Section diameter	Ф50	Ф50
A-A Section width	20±0.2	20±0.2
Baffle diameter	Ф75±0.2	Ф75±0.2
Baffle thickness	5±0.5	5±0.5
Force	---- Test Finger Probe	With force of 0-50N
Applied standard	IEC61032-1	IEC60529-1
