PLC IEC Test Equipment For Abrasion Resistance Speed 20 ± 5mm/s

Product Description

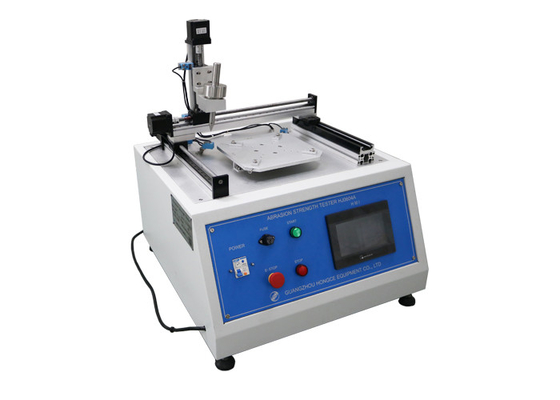

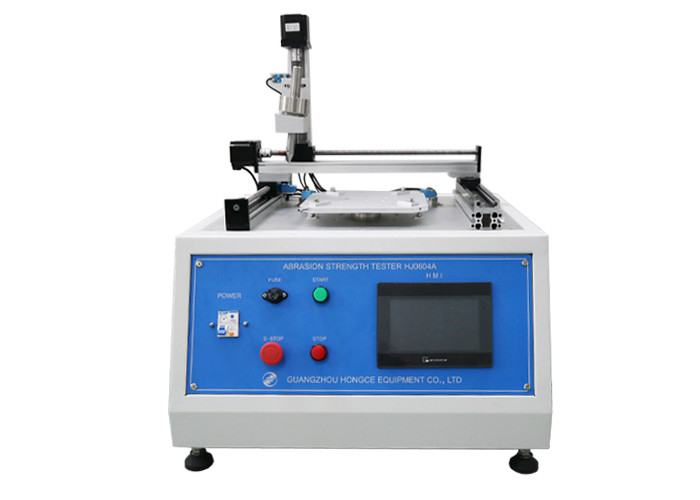

IEC Test Equipment For Abrasion Resistance Test With Speed Of 20 ± 5mm/s

Standard:

IEC 60335-1 ‘Household and similar electrical appliances – Safety – Part 1: General requirements’ clause 21.2;

IEC 60950-1 ‘Information technology equipment – Safety – Part 1: General requirements’ clause 2.10.8.4 and Figure 2K.

Application:

It is used for abrasion resistance test of printed circuit boards or the insulating accessible parts of the household appliances.

Test sample:

Accessible parts of solid insulation, coated printed boards and coated components. IEC Test Equipment

Standard description from IEC 60950-1:

Scratches are made across five pairs of conducting parts and the intervening separations at points where the separations will be subject to the maximum potential gradient during the tests.

The scratches are made by means of a hardened steel pin, the end of which has the form of a cone having a tip angle of 40°, its tip being rounded and polished, with a radius of 0.25 mm ± 0.02 mm.

Scratches are made by drawing the pin along the surface in a plane perpendicular to the conductor edges at a speed of 20 mm/s ± 5 mm/s as shown in Figure 2K. The pin is so loaded that the force exerted along its axis is 10 N ± 0.5 N. The scratches shall be at least 5 mm apart and at least 5 mm from the edge of the specimen.

Parameter:
