Detail Information |
|||

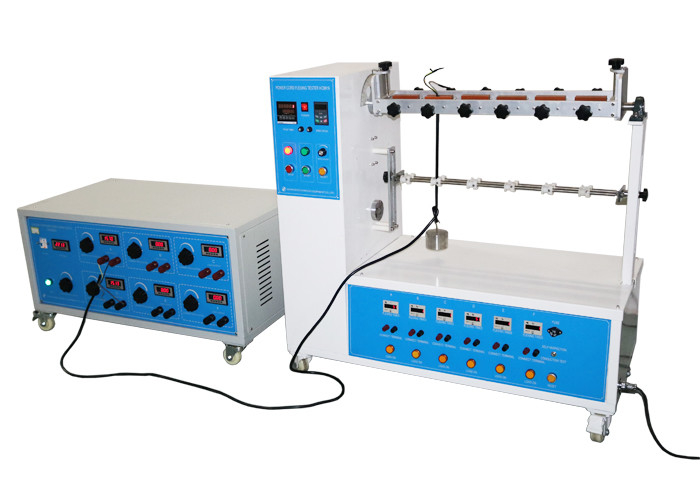

| Product Name: | POWER CORD FLEXING TESTER HC9919 | Standard: | IEC 60884-1, IEC60320-1 |
|---|---|---|---|
| Test Stations: | 6 | Rate Of Flexing: | 10~60 Rpm (adjustable) |
| Flexing Angles: | Swivel Angle On Either Side For 45°, 60°, 90° | Sample Connecting Wires: | 6 |
| Weights: | 10N/20N*6 | Output Current: | 0 ~ 40A Adjustable |
| High Light: | IEC 60884-1 Cable Flexing Test Apparatus,60rpm Cable Flexing Test Apparatus |
||
Product Description
IEC Test Equipment Flexible Cable Flexing Test Apparatus Flexing Angles Adjustable
Standard:
IEC 60884-1 2013 ‘Plugs and socket-outlets for household and similar purposes -- Part 1: General requirements’ clause 23.4 and figure 21；
IEC 60320-1 ‘Appliance couplers for household and similar general purposes –Part 1: General requirements’ clause 22.3 and figure 7.
Application:
Connectors/plug connectors shall be so designed that the cord cannot be subjected to excessive bending where it enters the connector/plug connector.
Non-rewirable plugs and non-rewirable portable socket-outlets shall be designed in such a way that the flexible cable is protected against excessive bending where it enters the accessory. IEC Test Equipment
Test sample:
Connectors/plug connectors, Non-rewirable plugs and non-rewirable portable socket-outlets.
Parameter:
| POWER CORD FLEXING TESTER HC9919 | |
| Power Supply | AC220V, 50Hz |
| Numbers of Test Stations | 6, with 6 sets of clamps |

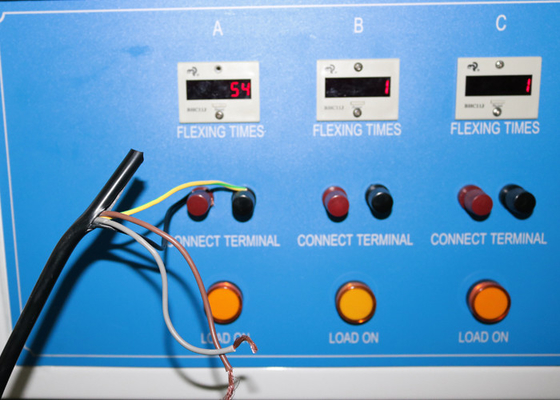

| Numbers of flexing times | 1-999999 (adjustable). With 6 independent counters corresponding to each station, and there is a general counter |
| Rate of Flexing | 10~60 rpm (adjustable) |
| Flexing Angles | Swivel angle on either side for 45°, 60°, 90° |
| Sample connecting wires | 6 PCS. IEC Test Equipment |
| Weights | 10N/20N*6(the weight of UL113g and 284g) |
| Breaking indication | Indicator display |
|
Mechanical theory |
The crank block on the reduction gearbox is driven by the electric motor to do the reciprocating action. |

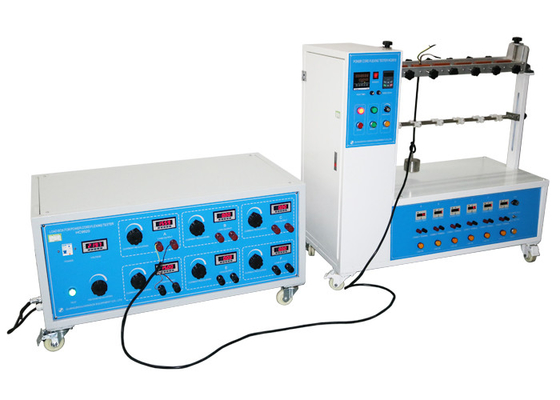

| LOAD BOX FOR POWER CORD FLEXING TESTER HC9920 | |
| Input voltage | AC220V±5%, 50Hz |
| Output current | 0 ~ 40A is arbitrary adjustable |
| Output voltage | 0 ~ 280V |
| Test station | Six stations |
| Ammeter Accuracy | ±1％ |
| Connecting wire | 7PIN Aviation wire |
