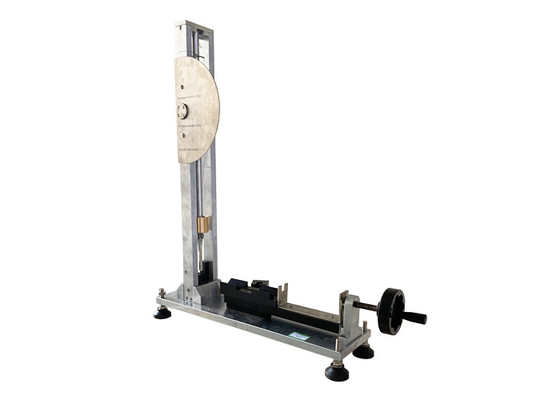

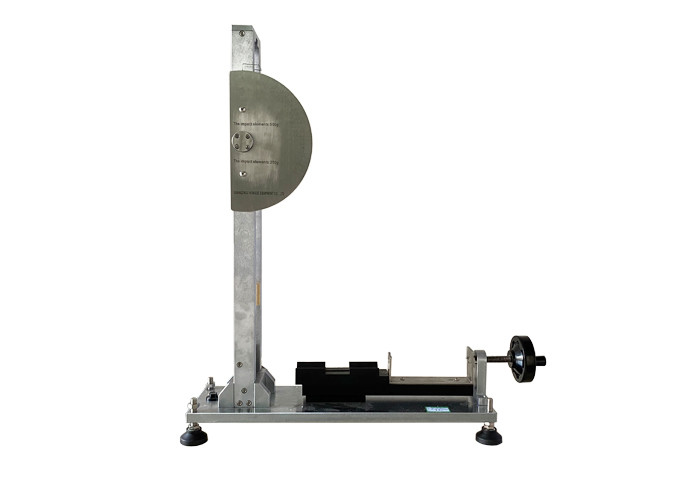

0.01J IEC Test Equipment Figure B.1 Calibration Device For Spring Hammer

Brand Name:	HeJin
Model Number:	SH-7
MOQ:	1 Set
Price:	Negotiatable
Payment Terms:	T/T, L/C
Supply Ability:	10 set per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Third party calibration certificate/ CE(cost additional)

Product Name:

Calibration Device For Spring Hammer Test Apparatus

Standard:

IEC 60068-2-75

Accuracy:

0.01J

Measurement Range:

0~2J

Balance Weight:

2J Copper Weight 1 Piece

Guide Groove Diameter:

51mm

Repeat Accuracy:

±0.01J

Trigger Distance:

Trigger Distance

Packaging Details:

Plywood

Highlight:

0.01J IEC Test Equipment

Figure B.1 IEC Test Equipment

Spring Hammer IEC Test Equipment

Product Description

IEC Test Equipment Figure B.1 Calibration Device For Spring Hammer Test Apparatus

Standard:

IEC 60068-2-75 Environmental testing – Part 2-75: Tests – Test Eh: Hammer tests Annex B and Figure B.1 Calibration device.

Standard description:

The spring hammer to be calibrated is put in the release base and is then operated three times by means of the release device; it shall not be released manually.

For each operation, the striking element of the spring hammer to be calibrated is turned in a different position. The average value of the three readings on the calibration device is taken to be the actual value of the impact energy of the specimen. IEC Test Equipment

Test sample:

Spring hammer test apparatus

Parameter:

1. Accuracy: 0.01J

2. Repeat accuracy: ±0.01J

3. Measurement range: 0~2J

4. Guide groove diameter: 51mm

5. The energy loss of the pendulum: <0.002J

6. Trigger distance: >30mm

7. Balance weight: 2J Copper weight 1 piece

Model	SH-7
Accuracy	0.01J
Accuracy	±0.01J
Measurement range	0-2J
Measurement range	51mm
The energy loss of the pendulum	<0.002J
Trigger distance	>30mm
Balance weight	2J Copper weight 1 piece

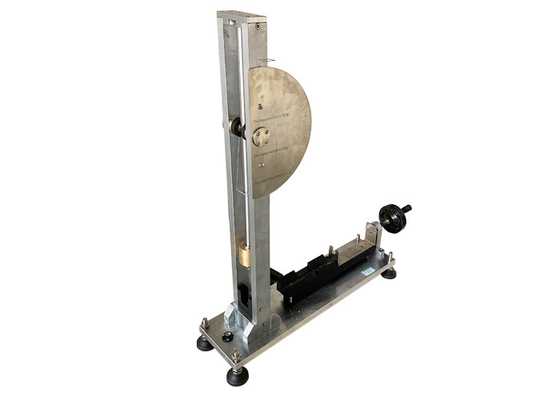

0.01J IEC Test Equipment Figure B.1 Calibration Device For Spring Hammer 0
