Articulate Test Finger Probe With Web Stop PA100A Stainless Steel Figure

Brand Name:	HeJin
Model Number:	HT-U02, HT-U03
MOQ:	1 set
Price:	Negotiatable
Payment Terms:	L/C, T/T
Supply Ability:	100 sets / per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

calibration certificate (cost additional)

Product Name:

Articulate Probe With Web Stop

Standard:

UL1278, UL 2157

Handle:

Nylon

Probe Material:

Stainless Steel

Figure 8.3:

Articulate Probe With Web Stop

Root Diameter Of Test Finger:

25.4mm

Tip Radius Of Test Finger:

3.5mm / 30°

Web Stop Wide:

50mm

Packaging Details:

Cartoon Box

Highlight:

UL 2157 Test Finger Probe

PA100A Test Finger Probe

Figure 8.3 Test Finger Probe

Product Description

UL Test Finger Probe Articulate Probe With Web Stop (PA100A) Stainless Steel Figure

Standard:

UL1278 Movable and Wall- or Ceiling-Hung Electric Room Heaters Figure 8.3;

UL 2157 Electric Clothes Washing Machines and Extractors Figure 1;

Other standard IEC62368Fig V1, UL474 Fig 5.1, UL507 Fig 9.2(PA100A), UL982 Fig 7.1, UL1017 Fig 2, UL1062 Fig1.2, UL1310 Fig 16.2, UL6500 Fig14, UL60065 Fig14 and UL60950 Fig NAF.1. Palm simulator and restricted joint movement simulates human finger movement.

Application:

It is a necessary appliance for anti electric shock protection test of household and similar electrical appliances. In the test, the finger simulation is mainly used to prevent the finger from approaching the dangerous parts under the condition of external force, so as to ensure that the product has sufficient safety protection against accidental contact with live parts in any normal use process. Test Finger Probe

Parameter:

Root diameter of test finger	25.4mm
Tip radius of test finger	3.5mm / 30°
Length of three joints	30mm per one
Web stop wide	50mm
Material	Stainless steel, nylon

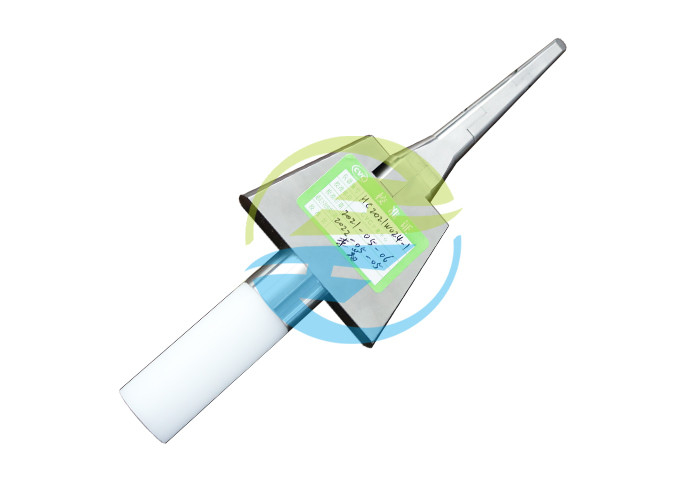

Articulate Test Finger Probe With Web Stop PA100A Stainless Steel Figure 0

Figure 8.3 Articulate probe with web stop
