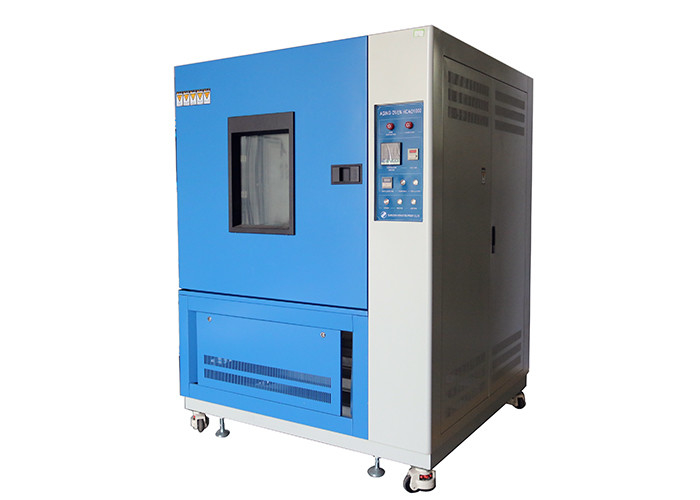

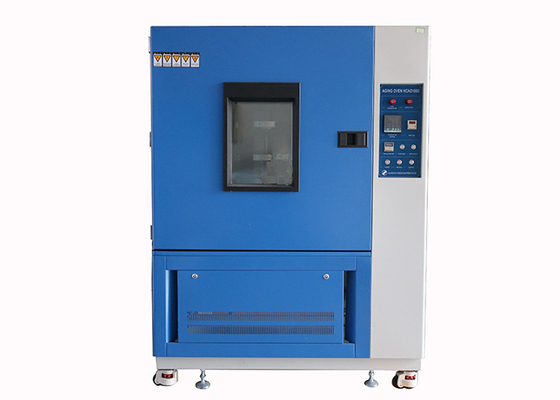

5r/Min 1000L IEC Test Equipment Thermal Ageing Oven

Brand Name:	HeJin
Model Number:	AO1000
MOQ:	1 Set
Price:	Negotiatable
Payment Terms:	T/T, L/C
Supply Ability:	10 set per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Third party calibration certificate/ CE(cost additional)

Product Name:

Thermal Ageing Oven

Chamber Inner Size:

1000*1000*1000mm

Temperature Range:

RT+10℃-200℃

Temperature Fluctuation:

≤±0.5℃

Air Exchange Frequency:

1-100times / H (Adjustable)

Air Flow Rate:

0.5-1.5m/s

Turntable Rotating Speed:

1-5r/min (Adjustable)

Air Exchange:

Natural And Forced Ventilation

Packaging Details:

Plywood

Highlight:

1000L IEC Test Equipment

5r/Min IEC Test Equipment

CE Thermal Ageing Oven

Product Description

IEC Test Equipment Thermal Ageing Oven with 1000L Volume Temperature range RT+10℃-200℃

Standard:

IEC 60811-11-2 ‘Common test methods for insulating and sheathing materials of electric and optical cables — Part 1-2: General application — Thermal ageing methods’ clause 8.1;

ISO 188 ‘Rubber, vulcanized or thermoplastic — Accelerated ageing and heat resistance tests’;

Application:

Thermal aging oven, suitable for heat resistance test of non-metallic materials, ventilation aging test of electronic parts and plastic products.

An oven with natural air flow or air flow by pressure. The air shall enter the oven in such a way that it flows over the surface of the test pieces and leaves near the top of the oven. The oven shall have not less than 8 and not more than 20 complete air changes per hour at the specified ageing temperature. IEC Test Equipment

Parameter:

Parameters Name	Parameter Data
Chamber inner size	100010001000mm
Temperature range	RT+10℃-200℃
Temperature fluctuation	≤±0.5℃
Temperature uniformity	≤±2℃
Air exchange frequency	1-100times / h (Adjustable)
Time setting range	1-9999H/M/S
Cycle mode	Fan forced circulation mode
Air flow rate	0.5-1.5m/s
Turntable rotating speed	1-5r/min (Adjustable)
Air exchange	Natural and forced ventilation
