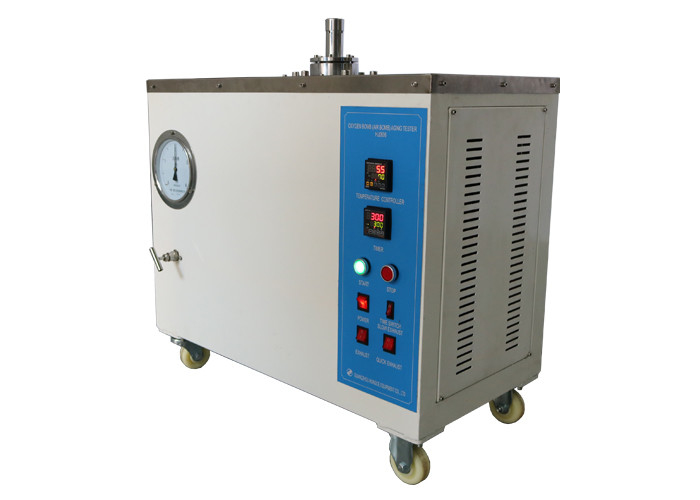

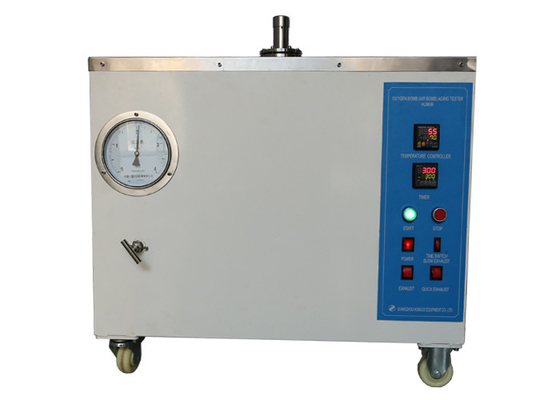

4000cm3 0.55MPa IEC Test Equipment Ageing In Air Oxygen Bomb

Name: 4000cm3 0.55MPa IEC Test Equipment Ageing In Air Oxygen Bomb
Brand: HJ AUTOMATIC CONTROL TECHNOLOGY CO., LTD
SKU: HJ0606
Availability: InStock

Brand Name:	HeJin
Model Number:	HJ0606
MOQ:	1 Set
Price:	Negotiatable
Payment Terms:	T/T, L/C
Supply Ability:	10 set per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Third party calibration certificate/ CE(cost additional)

Product Name:

Oxygen Bomb (air Bomb) Ageing Tester HJ0606

Usage:

Wire And Cable, Rubber

Material:

Stainless Steel

Temperature Range:

0-200℃

Tank Volume:

4000cm3

Temperature Deviation:

±1℃

Air Test Pressure:

0.55 MPa ± 0.02 MPa

Test Gas:

Oxygen / Air

Test Time:

96h

Oxygen Test Pressure:

2.1 MPa ± 0.07 MPa

Packaging Details:

Plywood

Highlight:

0.55MPa IEC Test Equipment

4000cm3 IEC Test Equipment

Product Description

IEC Test Equipment Ageing In An Air Bomb/Oxygen Bomb 0.55MPa Test Pressure

Standard:

IEC 60811-11-2 ‘Common test methods for insulating and sheathing materials of electric and optical cables — Part 1-2: General application — Thermal ageing methods’ clause 8.2 and 8.3 ;

IEC 60335-1 ‘Household and similar electrical appliances – Safety – Part 1: General requirements’ clause 22.32;

Application:

It is suitable for the aging test in the oxygen and compressed air to the wire and cable, rubber (plastic, leather) insulation and sheathing, as well as other polymer materials under the action of a predetermined pressure and temperature. IEC Test Equipment

Standard description:

The bomb shall be filled with air, which shall be free from oil and moisture, to a pressure of 0.55 ± 0.02 MPa. The test pieces shall be kept in the bomb at the temperature and for the time specified for the material in the standard for the type of cable.

The bomb shall be filled with commercial oxygen of not less than 97 % purity to a pressure of 2.1 ± 0.07 MPa. The test pieces shall be kept in the bomb at the temperature and for the time specified for the material in the standard for the type of cable.

Parameter:

Parameters Name	Parameter Data
Power	AC 220V±10%, 50Hz
Tank volume	4000cm³
Heater power	2.4KW
Maximum Working Pressure	4MP/cm2
Security Burst Pressure	2.7－3.3MP/cm²
Temperature Deviation	±1℃. IEC Test Equipment
Temperature self-control range	Room temperature 0-200℃
Temperature control	Digital display automatic control
Tank materials	Stainless steel

4000cm3 0.55MPa IEC Test Equipment Ageing In Air Oxygen Bomb 0
