Refrigeration Equipment Helium Mix Fill Suction Leak Detection System For Leak Testing High Sensitivity
Contact Person : Tessa Huang
Phone Number : +86 18027403449
WhatsApp : +8618027403449
| Minimum Order Quantity : | 1 Set | Price : | Negotiatable |
|---|---|---|---|
| Packaging Details : | Plywood | Delivery Time : | 90 days |
| Payment Terms : | T/T, L/C | Supply Ability : | 3 set per 3 month |
| Place of Origin: | China | Brand Name: | HeJin |
|---|---|---|---|
| Certification: | Third party calibration certificate(cost additional) |
|
Detail Information |
|||
| Test Sample: | Battery Metal Shell | Test Station: | 1 Station |
|---|---|---|---|
| Vacuum Chamber QTY: | 1 | Tracer Gas: | Helium |
| Leak Detection Accuracy: | 9.0E-11Pa.m3/sec. | Helium Dipping Pressure: | 4bar |
| Product Name: | Helium Leak Detection Systems | Standard Or Nonstandard: | Nonstandard |
| Highlight: | Nonstandard Helium Leak Testing Equipment,Battery Metal Shell Helium Leak Testing,Nonstandard Leak Testing Equipment |
||
Product Description

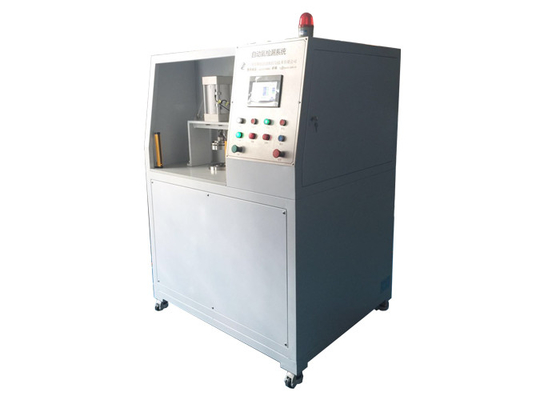

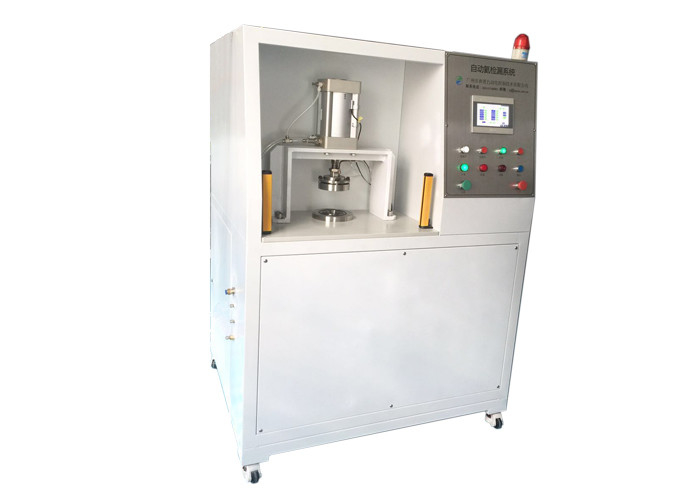

Helium Leak Testing Equipment For Battery Metal Shell With High Precision
Product information:
Our systems are based on a Mass Spectrometer Leak Detector that is connected to the vacuum line of a vacuum chamber. Helium is introduced inside the tested part. Any helium passing through a leak increases the helium partial pressure that is continuously monitored by the mass spectrometer.
The system consists at least of the following components:
A Mass spectrometer with its own vacuum system.
One chamber.
A vacuum group that evacuates the chamber thus reducing the helium partial pressure inside the chamber.
A valve manifold connected to the part that allows different steps of the detection routine (part evacuation, helium filling, helium exhaust, part venting…).
A power and control cabinet including touchscreen human operator interface.
Advantage:
Helium leak test equipment are the ideal solution for leak detection and leak-tightness testing under vacuum. The test gas Helium is safe and a small, light molecule which is suitable for detecting micro leaks. The detection range of Helium in vacuum tests lies between 10-2 and 10-13 Pa.m3/s. Helium leak detection is extremely accurate, quantitative and repeatable. Fast cycle times are a further advantage.Leak Testing Equipment
Parameter:
| Workpiece | Battery metal shell |
| Leak detection accuracy | 9.0E-11Pa.m3/sec. |
| Tracer Gas | Helium |
| Vacuum Chamber QTY | 1 (customizable) |
| Helium Dipping Tank QTY | 3 |
| Helium Dipping Pressure | 4bar. Leak Testing Equipment |
| Helium Dipping Time | 2 hours, the workpiece must be put into the vacuum chamber to complete the leak detection within 1 hour after it is removed from the dipping tank |
