Detail Information |
|||
Product Name: | Washing Machine Door Endurance Tester | Test Sample: | Washing Machine, Tumble Dryer |
---|---|---|---|
Operation Interface: | 7-inch Color LCD Touch Screen | Door Open /close Angle: | 0-120°,can Be Preset |
Test Times: | 0-999999 Preset | Station: | One Station For Tumble Washing Machine, One Station For Wave-wheel Washing Machine |
Standard: | IEC 60335-2-7, IEC 60335-2-11 | Door Open /close Speed: | 0-360°/s, ≥1.5/s Can Be Preset |
High Light: | IEC60335-2-7 IEC Test Equipment,Endurance Test IEC Test Equipment,IEC60335-2-7 Washing Machine Endurance Test |
Product Description

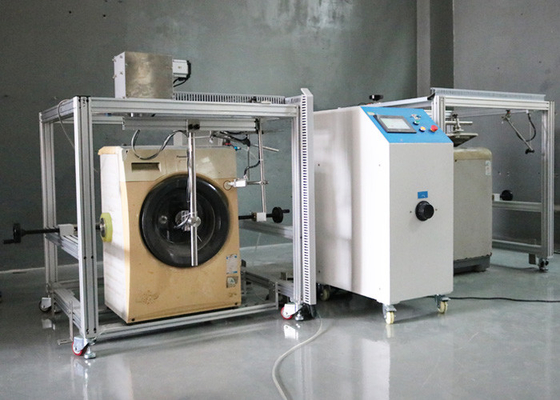

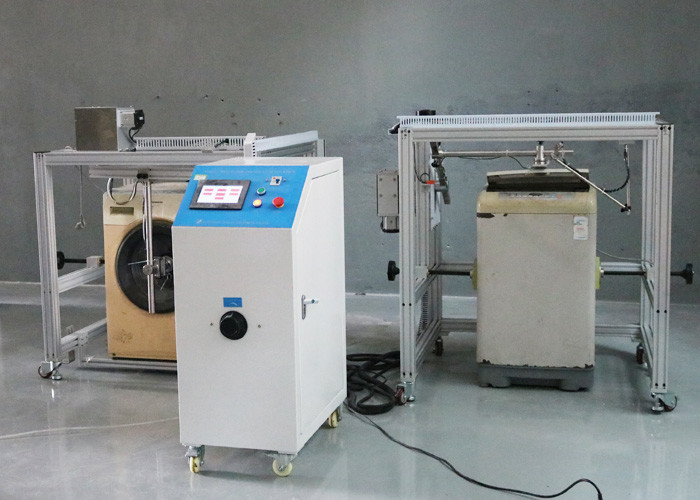

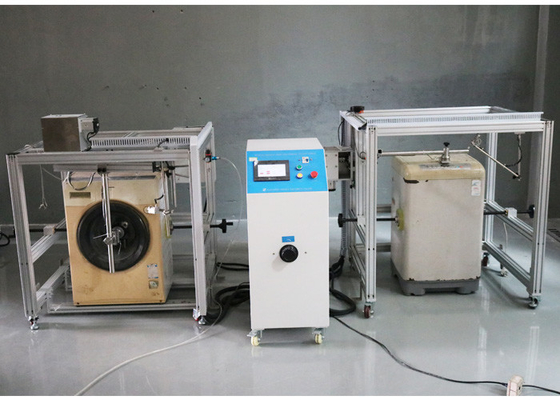

IEC Test Equipment 60335-2-7 Washing Machine Endurance Test Device
Standard:
IEC 60335-2-7 household and similar electrical appliances – safety: part 2-7: particular requirements for washing machines, clause 18;
IEC 60335-2-11 household and similar electrical appliances – safety: part 2-11: particular requirements for tumble dryers, clause 20.101.
Application:
The device is used for washing machine and tumble dryer mechanical endurance test to the lid or door interlock withstands the stresses to which it may be exposed in normal use. IEC Test Equipment
Test sample:
Washing machine, tumble dryer
Standard description:
IEC 60335-2-11 clause 20.101
It shall not be possible to open the door while the appliance is operating unless an interlock is provided that disconnects the motor before the door opening exceeds 75 mm. It shall not be possible to start the motor while the door opening exceeds 75 mm.
Compliance is checked by inspection, by measurement and by manual test, the appliance being supplied at rated voltage and operating under normal operation.
If means to prevent the door opening incorporates a coil or similar component to lock the door in the closed position, the component is energized and de-energized 6 000 times, six times a minute or at the rate imposed by the construction of the appliance if this is lower.
Parameter:
NO. | Item | Parameters. IEC Test Equipment |
1 | Power supply | AC220V±10%/50-60Hz |
2 | Test stations | 2 stations, tumble washing machine test station, wave-wheel washing machine test station |
3 | Operation interface | 7-inch color LCD touch screen |
4 | Driving mode | Servo motor |
5 | Control system | PLC programmable control |
6 | Test times |
0~999999 times, can be preset and displayed |
7 | Door open /close angle | 0-120°,can be preset |
8 | Door open /close speed | 0-360°/s, ≥1.5/s can be preset |
9 | Test project |
1. tumble washing machine door interlocks test 2. tumble washing machine door endurance test 3. tumble washing machine door structure test 4. wave-wheel washing machine lid endurance test 5. wave-wheel washing machine water extraction open lid test |
10 | Test environment | Atmospheric pressure 80 ~ 106kpa; ambient temperature 5 ~ 40 ° C; relative humidity (20 ~ 80)% RH; use place: no vigorous shaking, vibration, no electromagnetic interference, no dust, no explosive and corrosive gas, good heat dissipation |
