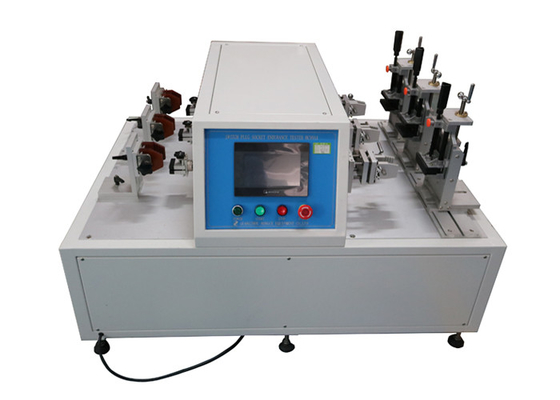

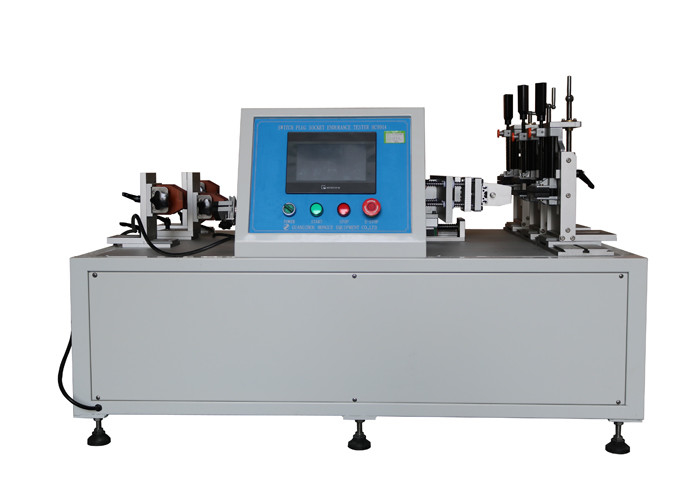

50Hz Plug Socket Endurance Tester

Name: 50Hz Plug Socket Endurance Tester
Brand: HJ AUTOMATIC CONTROL TECHNOLOGY CO., LTD
SKU: HC9914
Availability: InStock

Brand Name:	HJ
Model Number:	HC9914
MOQ:	1 set
Price:	Negotiatable
Payment Terms:	T/T, L/C
Supply Ability:	10 set /month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

calibration certificate (cost additional)

Product Name:

Switch And Plug-Socket Endurance Tester HC9914

Power Supply:

AC220V±5% 50Hz

Test Station:

6 Stations

Standard:

IEC 60884-1, IEC60069-1

Liner Stroke:

0-100mm, Preset

Rotate Angle:

0-360°, Preset

Control System:

PLC Control

Load Ports:

6 Ports

Packaging Details:

Plywood

Highlight:

50Hz Plug Socket Endurance Tester

Plug Socket Endurance Tester 50Hz

50Hz Socket Endurance Tester

Product Description

Plug Socket Test Equipment Life Test For Socket-Outlets And Plugs With Six Stations

Standard:

IEC 60884-1 ‘Plugs and socket-outlets for household and similar purposes – Part 1: General requirements’ clause 20, clause 21 and figure 16;

IEC 60669-1 ‘Switches for household and similar fixed electrical installations – Part 1: General requirements’ clause 18, clause 19.

Standard description:

IEC60884-1 clause 20 Breaking capacity

Accessories shall have adequate breaking capacity.

Compliance is checked by testing socket-outlets and plugs with pins which are not solid, by means of an appropriate test apparatus, an example of which is shown in figure 16. Plug Socket Test Equipment

IEC60884-1 clause 21 Normal operation

Accessories shall withstand without excessive wear or other harmful effect, the mechanical, electrical and thermal stresses occurring in normal use.

Compliance is checked by testing socket-outlets, and plugs with resilient earthing socket- contacts or with pins which are not solid, by means of an appropriate test apparatus, an example of which is shown in figure 16.

50Hz Plug Socket Endurance Tester 0

Parameters:

Model	HC9914. Plug Socket Test Equipment
Power supply	AC 220V±10% 50Hz
Operation interface	7 inch color LCD touch screen
Drive mode	servo motor + ball screw / timing belt or pneumatic
Control system	PLC control
Stations	6 Stations: 3 liner stations; 3 rotating stations. Synchronization control
Test sample	Button switch, rocker switch, toggle switch, rotary switch, plug and socket
Test times	0-999999, preset
Connecting time	0-99.9s, preset
Liner stroke	0-100mm, preset
Rotate angle	0-360°, preset
Test speed	15 times per min 7.5 times per min 30 times per min

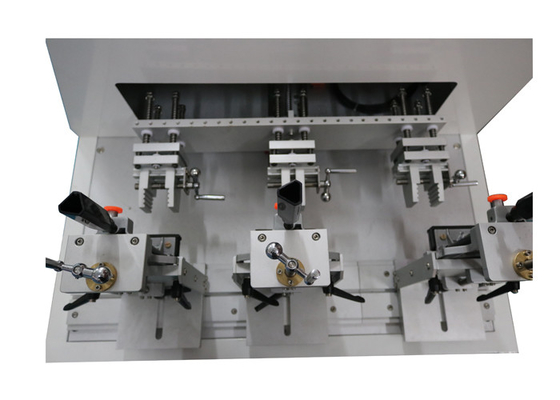

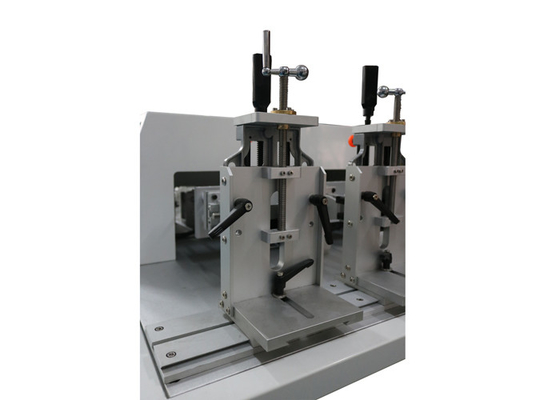

Clamp	XYZ three axis clamp
Test mechanism (multi)	Button switch push rod, toggle switch mechanism, rocker switch pulley mechanism
Load ports	6 ports
Dimension Weight	WDH=1090800700mm 147kg

50Hz Plug Socket Endurance Tester 1
