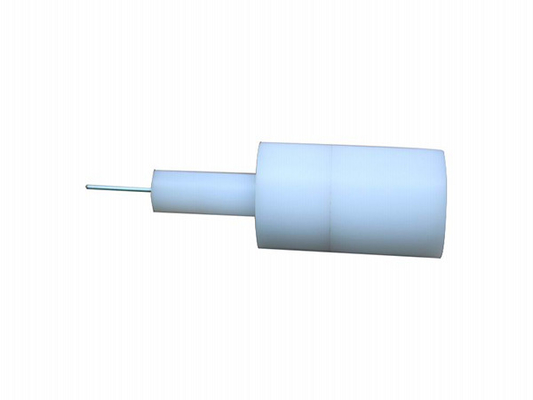

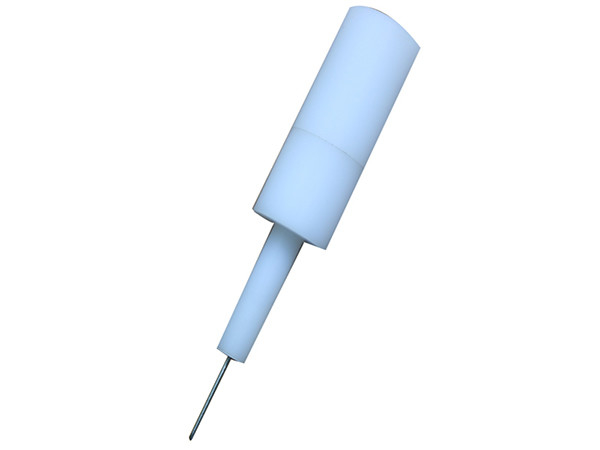

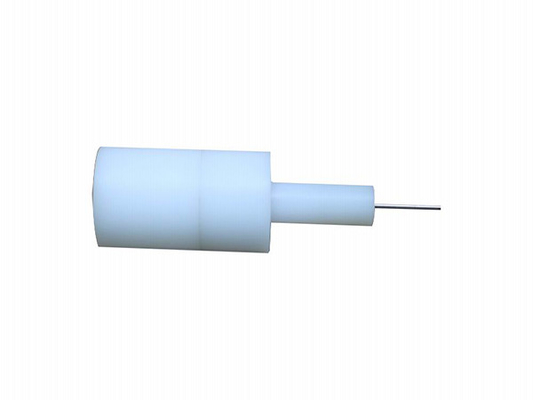

Small 50mm Handle Length IEC Test Finger Probe

Small 50mm Handle Length IEC Test Finger Probe

Brand Name: HeJin
Model Number: HT-I30
MOQ: 1 set
Price: Negotiatable
Payment Terms: L/C, T/T
Supply Ability: 100 sets / per month
Detail Information
Place of Origin:
China
Certification:
calibration certificate (cost additional)
Product Name:
Small Test Pin Probe HT-I30
Standard:
IEC 60065
Application:
Test Finger Probe
Sample Range:
Plug And Cover
Handle Length:
50±1 Mm
Handle:
Nylon
Material:
Stainless Steel
Usage:
IEC Test Equipment
Packaging Details:
Cartoon Box
Highlight:

IEC Test Finger Probe

,

50mm Handle Test Finger Probe

,

Small IEC Test Probe

Product Description

IEC 60065 Test Finger Probe Small Test Pin Probe Nylon handle with steel probe



Standard:

BS1363.1 clause 12.6.1 figure 1.

IEC 60065 Audio, video and similar electronic apparatus - Safety requirements.



Application:

It is used to test for the electronic equipment to see whether the hidden dangerous parts of the terminal device of can be touched.



Sample range:

Plug and cover.Test Finger Probe



Feature:

Nylon handle with steel probe.



Parameters:

Model HT-I30(BS probe,End rounding) HT-I30A Test Finger Probe
Probe diameter Ф1 0 -0.05 Ф1 0 -0.1
Diameter of insulating material Ф8 0 -0.05 Ф8
Handle diameter Ф20 0 -0.05 Ф20
Probe length 20 0 -0.05 20
Length of insulating material 30±0.2 30
Handle length 50±1 50
