10 Freq/Min 220V 50Hz IEC Integrated Test Device for Circular saws

IEC Test Equipment Integrated Test Device For Circular Saw Switch And Lower Guard

Standard:

IEC60745-2-5 ‘Hand-held motor-operated electric tools - Safety - Part 2-5: Particular requirements for circular saws’.2003 Annex BB.20.102.

EN 60745-2-5: 2010 clause 17.101 and clause 19.102.3.

EN 60745-2-5: 2010 Annex M21.18, Annex M21.18.301, Annex M21.203, Annex M21.301, figure M.301.

Application:

It is used to test the circular saw switch performance and circular saw lower guard’s durability and recovery time. IEC Test Equipment

Test sample:

Circular saws

Feature:

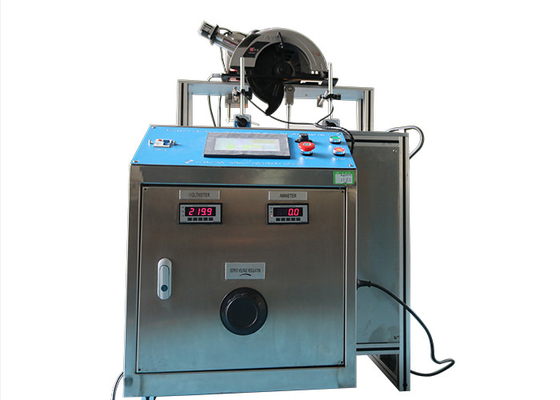

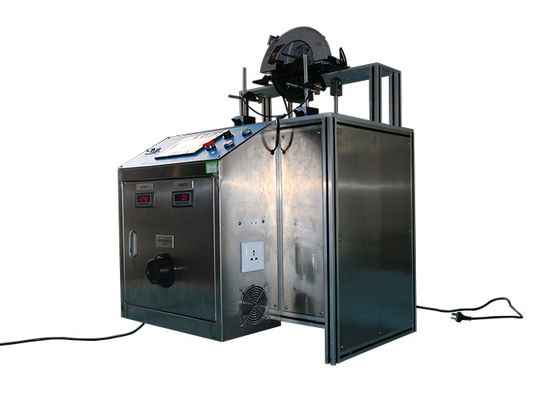

This equipment is composed of two parts, the mechanical system and electrical control system.

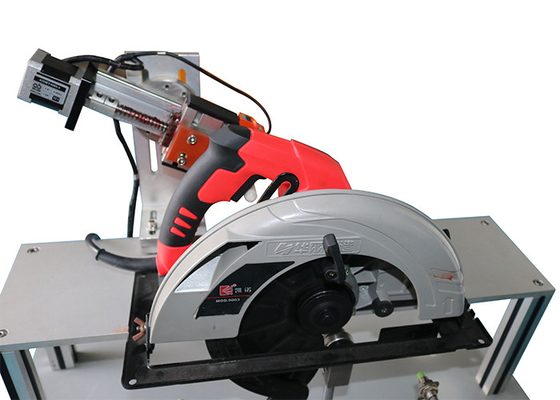

Mechanical system is the table for circular saw. There are a switch and sample socket on the table, operator can push the switch to turn on or off the load power supply to the test sample; different sizes of circular saws can be placed and fixed on the table; on the table, device for locking the switch of the hand-held circular saw in the “on” position; the blade can extend to the bottom of the table through the middle groove; on the table where under the blade, there are a the lower guard putter and two position sensors , which can be drive the lower guard of the circular saw to be opened or closed.

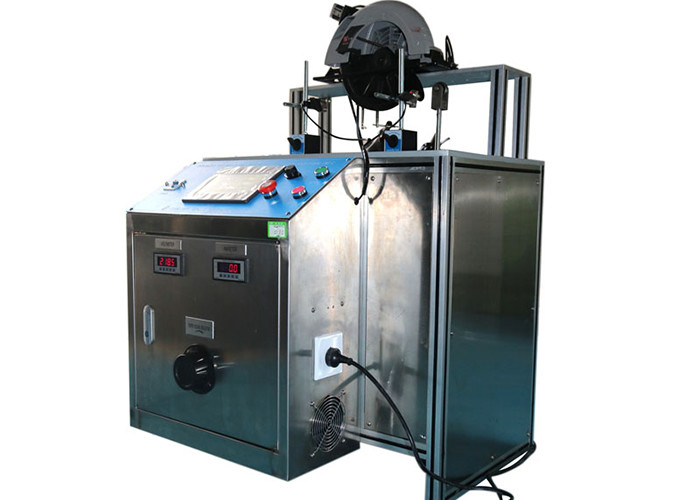

The electrical control system consists of the load power supply, MITSUBISHI PLC, 7 Inch Touch screen and etc. Can achieve manual operation and automatic operation.

Parameters:
