IEC 60069-1 IEC Test Equipment Conductor Damage Degree Test Apparatus Rate 10 ± 2 R/Min
Contact Person : Tessa Huang
Phone Number : +86 18027403449
WhatsApp : +8618027403449
| Minimum Order Quantity : | 1 Set | Price : | Negotiatable |
|---|---|---|---|
| Packaging Details : | Plywood | Delivery Time : | 30 days |
| Payment Terms : | T/T, L/C | Supply Ability : | 10 set per month |
| Place of Origin: | China | Brand Name: | HeJin |
|---|---|---|---|
| Certification: | Third party calibration certificate/ CE(cost additional) | Model Number: | HDX1309 |
|
Detail Information |
|||
| Product Name: | Low-Temperature Test Chamber HDX1309 | Test Sample: | Wire And Cable |
|---|---|---|---|
| Supply Voltage: | AC220V 50HZ | Total Power: | 3.5KW |
| Standard: | IEC60811-1-4 | Function: | IEC Test Equipment |
| Weight: | About 200KG | Material: | Stainless Steel Plate（SUS#304） |
| Highlight: | 3.5KW Low Temperature Test Chamber,200KG Low Temperature Test Chamber,200KG 3.5KW Low Temperature Test |
||
Product Description

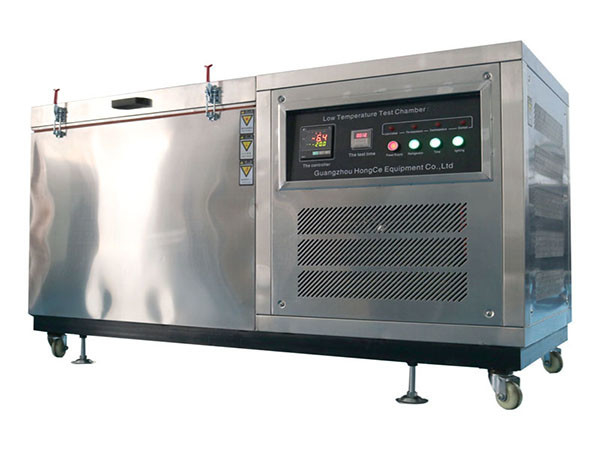

IEC Test Equipment Low-Temperature Test Chamber for Wire and cable
Standard:
IEC60811-1-4 ‘common test methods for insulating and sheathing materials of electric and optical cables-part 1-4:Methods for general application-Test at low temperature’.
Application:
Suitable for low temperature test of products such as electric wire and cable, electrical accessories, etc..
Test sample:
Wire and cable.IEC Test Equipment
Feature:

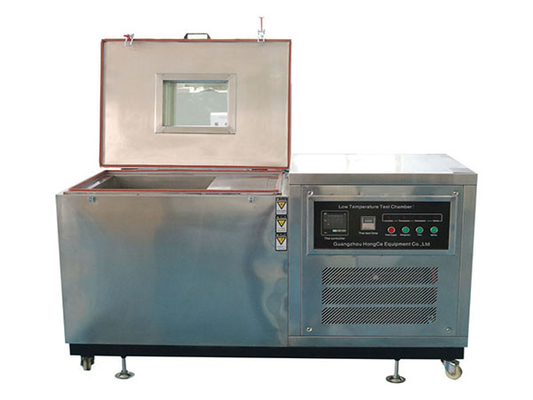

The low temperature test chamber mainly provides the low temperature environment of (0℃—-40℃) , to open the seal cover plate on the low temperature chamber, can clearly see the inside of the low temperature chamber through the transparent organic glass, mainly for proceeding variety of low temperature test.
Parameters:
| Inner test chamber size | L600 × H500 × W500mm |
| Outer chamber size | L1700 × H950 × W850mm |
| Inner chamber material | stainless steel plate(SUS#304) |
| Outer chamber material | stainless steel plate(SUS#304) |
| Heat preservation material | low temperature tank: high density PU foam |
| Total power | 3.5KW IEC Test Equipment |
| Supply voltage | AC220V 50HZ |
| Working current | 15A |
| Temperature range | room temperature～-40℃ |
| Cooling time | room temperature～-40℃ about 45 minutes to reach |
| Weight | about 200KG |
