IEC60065 Short Test Pin Probe HT-I09 IEC61032 Figure 9 Test Probe 13 Metal Pin Tip Diameter Ф3
Contact Person : Tessa Huang
Phone Number : +86 18027403449
WhatsApp : +8618027403449
| Minimum Order Quantity : | 1 set | Price : | Negotiatable |
|---|---|---|---|
| Packaging Details : | Cartoon Box | Delivery Time : | 3 days |
| Payment Terms : | L/C, T/T | Supply Ability : | 30 sets / per month |
| Place of Origin: | China | Brand Name: | HeJin |
|---|---|---|---|
| Certification: | calibration certificate (cost additional) | Model Number: | HT-I32 |
|
Detail Information |
|||
| Product Name: | Surface Temperature Probe HT-I32 | Standard: | IEC60335-2-11，IEC60335-2-6 |
|---|---|---|---|
| Application: | Test Finger Probe | Handle: | Nylon |
| Thermocouple: | Φ0.3K Type | Tube Inside Diameter: | Φ3 |
| Tube Outside Diameter: | Φ5 | Measuring Surface: | Φ5*0.5mm Tinned Copper Disc |
| Highlight: | IEC60335-2-6 Surface Temperature Probe,IEC60335-2-11 Surface Temperature Probe,HT-I32 Surface Temperature Probe |
||
Product Description

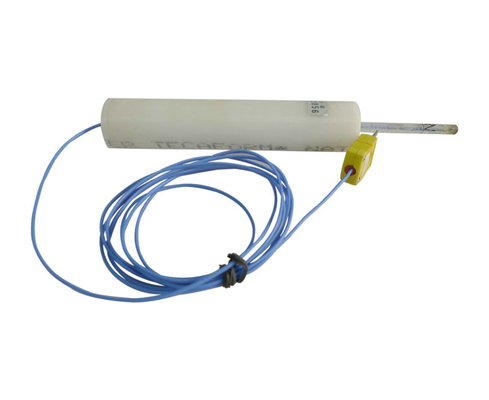

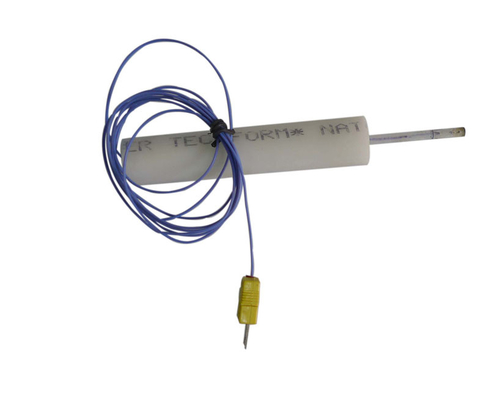

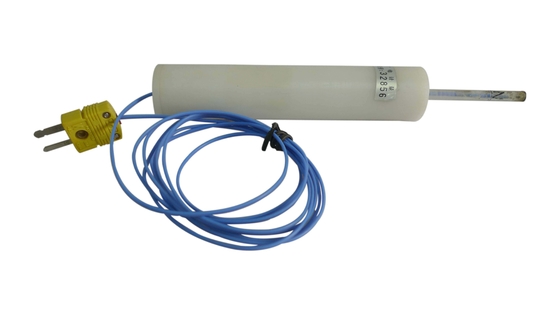

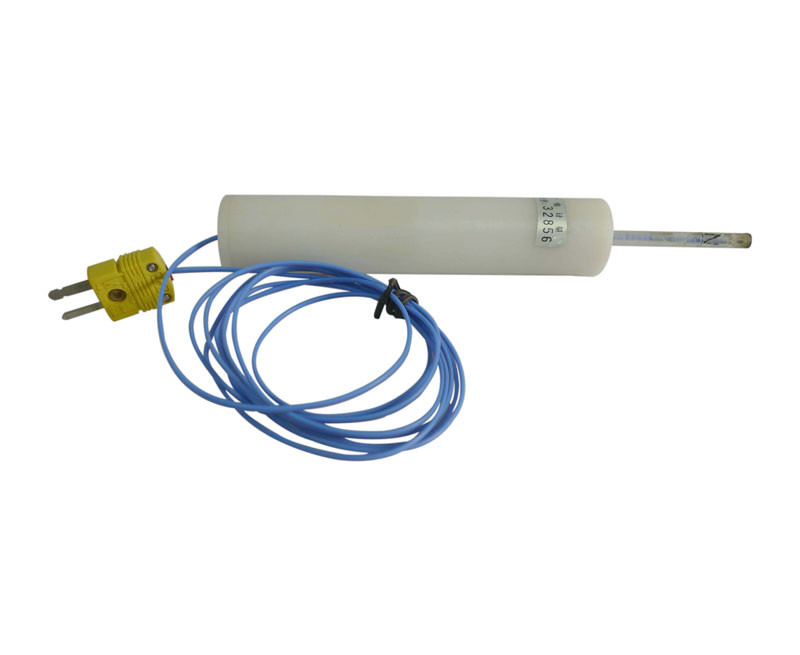

IEC60335-2-11 / IEC60335-2-6 Test Finger Probe Surface Temperature Probe
Standard:
IEC60335-2-11 ‘Household and similar electrical appliances - Safety - Part 2-11: Particular requirements for tumble dryers’ figure 101.
IEC60335-2-6 ‘Household and similar electrical appliances - Safety - Part 2-6: Particular requirements for stationary cooking ranges, hobs, ovens and similar appliances’ figure 104.
Application:
It is mainly used to measure the temperature rise on the front surface of the easily accessible parts of drum-type dryer, upright electric cooker, cooking bench and oven.
Test sample:
Drum-type dryer, upright electric cooker, cooking bench and oven.
Feature:
Hand held exterior temperature measurement.Test Finger Probe.
Parameters:
| Model | HT-I32 Test Finger Probe |
| Measuring surface | Φ5*0.5mm Tinned copper disc |
| Polycarbonate tube | Inside diameter:Φ3; outside diameter:Φ5 |
| Thermocouple | Φ0.3K type |
| Handle arrangement permitting a contact force | 4±1 N |
