HDX1310 High Temperature Indentation Device IEC Test Equipment

Name: HDX1310 High Temperature Indentation Device IEC Test Equipment
Brand: HJ AUTOMATIC CONTROL TECHNOLOGY CO., LTD
SKU: HDX1310
Availability: InStock

Brand Name:	HeJin
Model Number:	HDX1310
MOQ:	1 Set
Price:	Negotiatable
Payment Terms:	T/T, L/C
Supply Ability:	10 set per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Third party calibration certificate/ CE(cost additional)

Product Name:

High Temperature Indentation Device HDX1310

Sample Range:

Wire And Cable Products

Working Station:

Three Stations

Blade Width:

0.70±0.01mm

Standard:

IEC60884-1,IEC60598-2-20,EN60811-3-1

Function:

IEC Test Equipment

Material:

Stainless Steel Support

Usage:

Laboratory Test Equipment

Packaging Details:

Carton Box

Highlight:

HDX1310 High Temperature Indentation Device

HDX1310 IEC Test Equipment

High Temperature Indentation IEC Test Equipment

Product Description

IEC Test Equipment High Temperature Indentation Device For wire and cable products

Standard:

IEC60884-1-2002 ‘Plugs and socket-outlets for household and similar purposes -- Part 1: General requirements’ clause 30.1

IEC60598-2-20 ‘Luminaires -Part 2-20:Particular requirements -Lighting chains’ clause 20.15

EN60811-3-1 insulating and sheathing materials of electric and optical cables-common test methods

Application:

Used for PVC insulated and sheathed wire and cable products to measure the thermal pressure deformation resistance of PVC insulation and sheath under the simultaneous action of thermal and mechanical loads. The tested insulation core can be circular, fan-shaped and parallel flexible wire, and the tested sheath can be circular or flat. This test method is not recommended for the sample thickness (insulation or sheath) less than 0.4mm

Sample range:

PVC insulated and sheathed wire and cable products. IEC Test Equipment

Parameters:

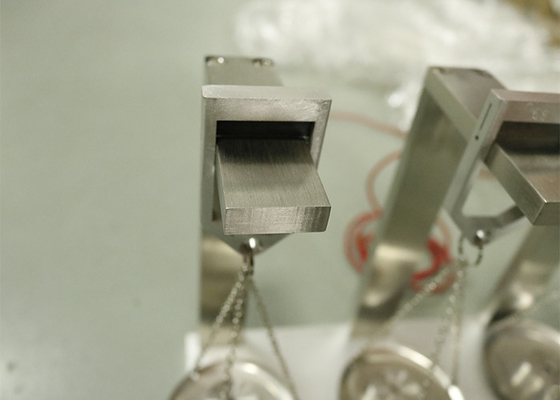

Blade width	0.70±0.01mm. IEC Test Equipment
Sample support plane	0°,90°,120° one piece per each,can replaceable use
Support	Smooth stainless steel support
The load weight is composed of a rectangular knife + weight +tray), rectangular knife and tray are 120g, and equip with two sets of a standard weight of 1~1kg

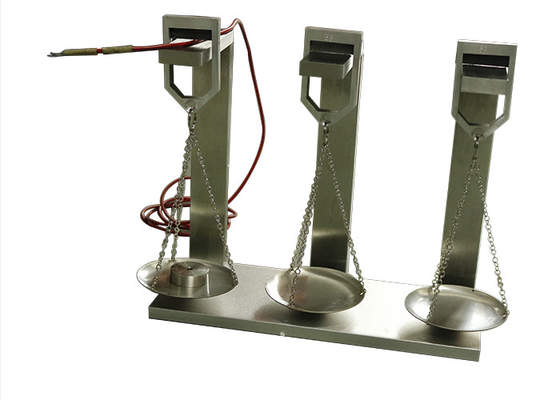

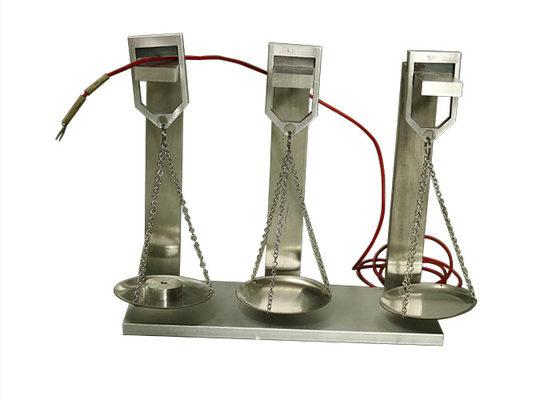

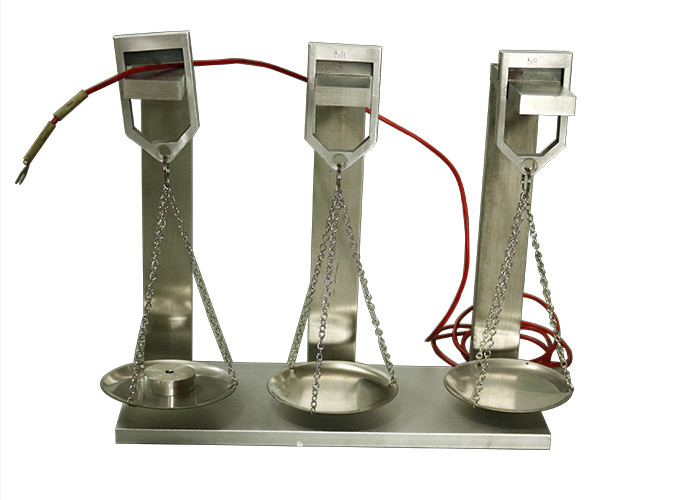

HDX1310 High Temperature Indentation Device IEC Test Equipment 0
