Three Stations AC220V Cold Elongation Test Machine IEC Test Equipment

Minimum Order Quantity : 1 Set Price : Negotiatable
Packaging Details : Plywood Delivery Time : 30 days
Payment Terms : T/T, L/C Supply Ability : 10 set per month
Place of Origin: China Brand Name: HeJin
Certification: Third party calibration certificate/ CE(cost additional) Model Number: HDX1308

Detail Information

Product Name: Cold Elongation Test Equipment Supply Voltage: 220V(AC)
Working Station: Three Stations Tensile Speed: (25±5)mm/min
Standard: IEC60811-1-4 Function: IEC Test Equipment
Sample Size: Ⅰ#, Ⅱ#Dumbbell Piece Chuck Type: Non Self Energizing
Highlight:

AC220V Cold Elongation Test Machine

,

Three Stations Cold Elongation Test Machine

,

IEC Test Equipment AC220V

Product Description

IEC Test Equipment Cold Elongation Test Equipment with three stations



Standard:

IEC60811-1-4 common test methods for insulating and sheathing materials of electric and optical cables-part 1-4: Methods for general application-Test at low temperature  clause 8.3 and 8.4.



Application:

It is used to test at low temperature for insulating and sheathing materials of electric cables.



Test sample:

Rubber, insulating and sheathing materials of electric cables.



Feature:

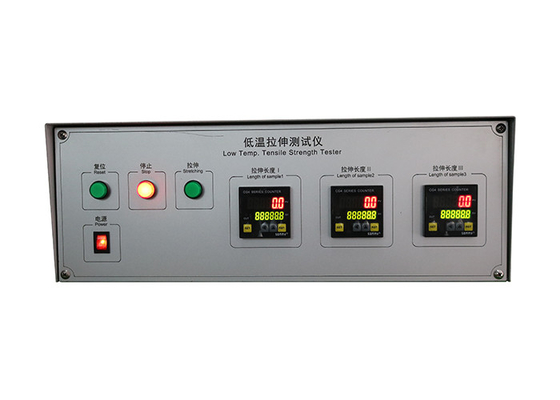

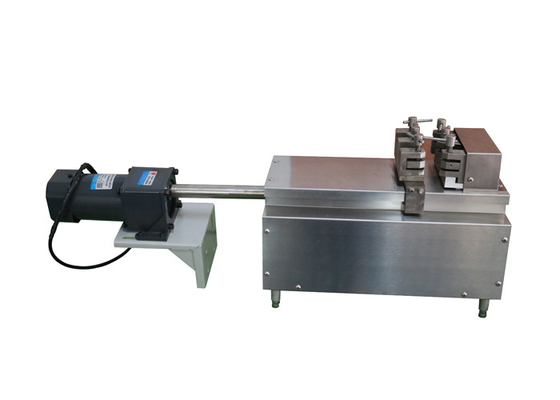

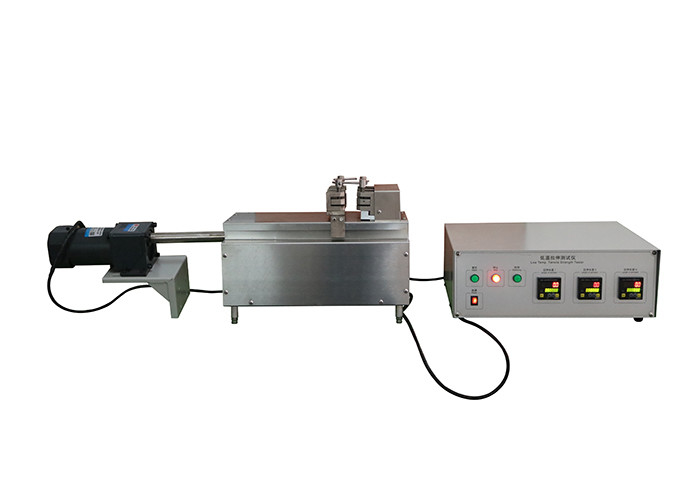

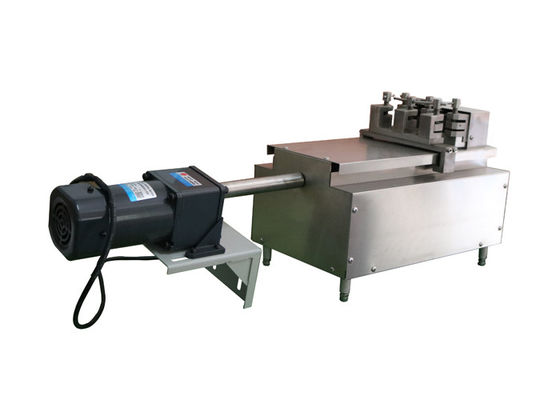

Adopt separation structure of control cabinet and the mechanical device, three stations synchronization, motor drive. IEC Test Equipment.



Parameters:

Item name Parameter data Item name Parameter data
Supply voltage

220V(AC)

IEC Test Equipment

Displacement measurement Digital display±1mm
Chuck type Non self energizing Tensile speed (25±5)mm/min
Sample size Ⅰ#,Ⅱ#Dumbbell piece samples can bedone in a single operation 3 PCS



Three Stations AC220V Cold Elongation Test Machine IEC Test Equipment 0Three Stations AC220V Cold Elongation Test Machine IEC Test Equipment 1
