Production Cycle Time ≥500 pcs/h Ceramic Component Multistation Helium Mass Spectrometer Leak Test Equipment
Contact Person : Anglia Chen
Phone Number : +86 17724266108
WhatsApp : +8617724266108
Minimum Order Quantity : | 1 Set | Price : | Negotiatable |
---|---|---|---|
Packaging Details : | Plywood | Delivery Time : | 90 days |
Payment Terms : | T/T, L/C | Supply Ability : | 3 set per 3 month |
Place of Origin: | China | Brand Name: | HeJin |
---|---|---|---|
Certification: | Third party calibration certificate(cost additional) |
Detail Information |
|||
Test Sample: | Air Conditioning Condenser / Evaporator | Vacuum Chamber Qty: | 3 |
---|---|---|---|
Leak Test Gas: | Helium | Control Mode: | PLC Control |
Detection Method: | Vacuum Chamber Method | Gas Pressure For Fine Leak Test: | 1.5Mpa |
Gas Pressure For Gross Leak Test: | 2.5 Mpa | Detectable Leak Rate: | 2g/Year |
Function: | Helium Leak Test System For Air Conditioning Condenser / Evaporator | Production Capacity: | 270 Pcs/hour |
High Light: | 270pcs/Hour Vacuum Chamber Leak Test,270pcs/Hour Vacuum Chamber,270pcs/Hour Leak Test For Air Conditioning |
Product Description
Leak Testing Equipment For Air-Conditioning Condenser / Evaporator Vacuum Chamber Method
product information:

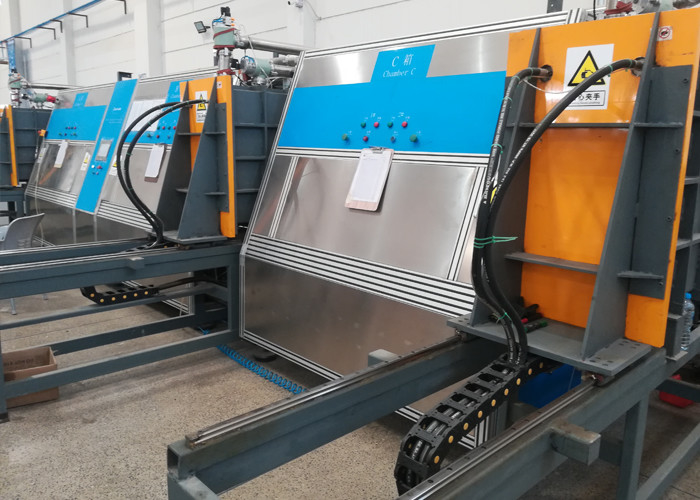

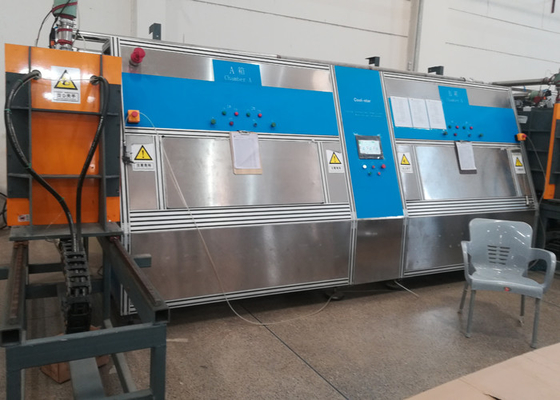

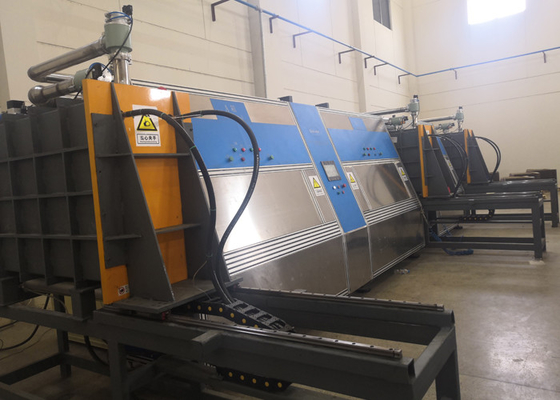

The vacuum chamber helium leak detection system has three vacuum chambers, and three vacuum chambers work linked. The operator puts the parts into the vacuum chamber and connects them with the quick joints, and then simultaneously presses the two green buttons on the upper edge of the vacuum chamber. The chamber door is closed and the detection cycle begins automatically. Grating protectors are installed on both sides of the vacuum chamber door, and when the door is closed, it is ensured that there is no object in the door area that interferes with the movement of the door. Once one of the doors is closed, the detection cycle in this chamber begins. Leak Testing Equipment
Parameter: (can be customized according to client's requirements)
Workpiece |
Air conditioning condenser / evaporator |
Vacuum chamber size | L1250mmX W480mmX D300mm |
Vacuum chambers | 3 pieces (2 pieces per chamber) |
Fixture | 6 sets. Leak Testing Equipment |
Gas for gross leak detection | 2.5 Mpa (downward adjustable) |
Tracer gas | Helium |
Reject point | 2g/year |
Tracer gas pressure | 2.5 Mpa (downward adjustable) |
Production capacity | 270 pcs/hour |
Helium recovery | Recovery rate ≥95% |
Vacuuming time | 50s |
Helium filling and detection time | 10s |
Helium recovery time | 8s |
Workpiece loading and unloading | Manual |
System Configuration:
No. | Item | Brand |
1 | Chamber and fixture | HJ |
2 | Chamber door and auto- closing mechanism | HJ |
3 | Helium-filled and recovery connector | HJ |
4 | Vacuum pump | BAOSI |
5 | Vacuum gauge | Agilent |
6 | Leak detector | Agilent |
7 | Pressure sensor | JUMO etc. |
8 | Electromagnetic valve | AIRTAC, SMC etc. |
9 | High pressure valve | GSR, ASCO etc. |
10 | Standard leak | HJ |
11 | Helium boosting system | HJ |
12 | PLC | OMRON |
13 | Touch screen | Weinview |
14 | Electrical parts | FUJI, Schneider etc. |
15 | Pipes and fittings | Made in china |
16 | Helium concentration detector | HJ |
