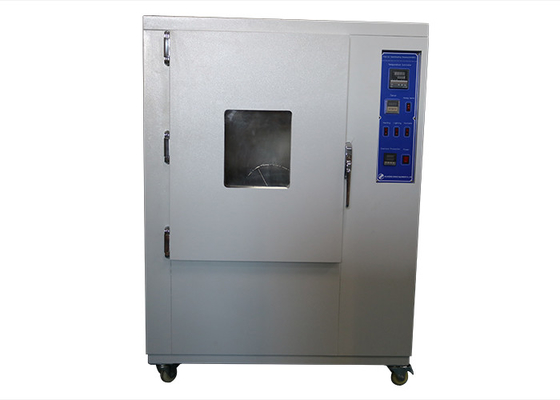

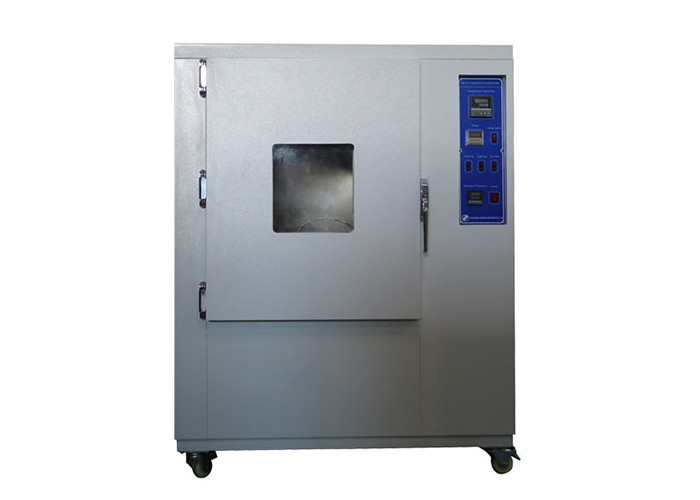

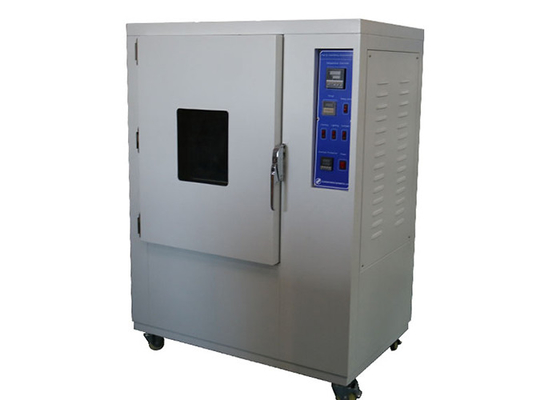

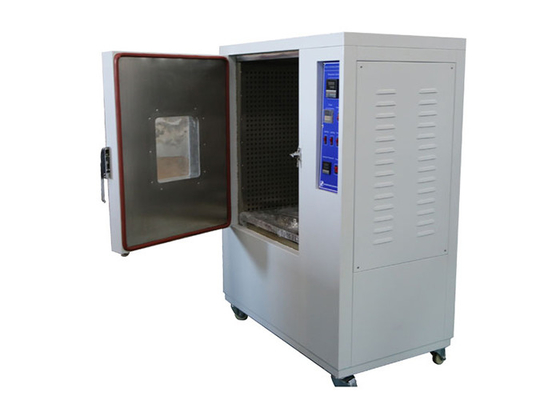

120kgs 50*60*80cm Natural Circulation Heating Cabinet

Minimum Order Quantity : 1 Set Price : Negotiatable
Packaging Details : Plywood Delivery Time : 20 days
Supply Ability : 15 set per month
Place of Origin: China Brand Name: HeJin
Certification: calibration certificate (cost additional) Model Number: HH0812

Detail Information

Product Name: Natural Circulation Heating Cabinet HH0812 Working Box: 50*60*80cm
Temperature Range: RT ~ 300 ° C Temperature Control: PID Digit Setting
PID Digit Setting: 0.1℃ Temperature Fluctuation: ±1℃
Air Circulation: Natural Ventilation Standard: IEC 60884-1
High Light:

50*60*80cm Natural Circulation Heating Cabinet

,

120kgs Natural Circulation Heating Cabinet

,

120kgs Circulation Heating Cabinet

Product Description

IEC Test Equipment Natural Circulation Heating Cabinet For Polymer Materials



Standard:

IEC 60884-1 2013 ‘Plugs and socket-outlets for household and similar purposes -- Part 1: General requirements’ clause 16.1



Application:

This device is use to perform thermal aging test to polymer materials (plastics, plastics and electrical insulating materials such as: wire and cable sheathing, heat shrinkable tube, rubber test or PVC materials, and the insulating components, or use for drying, baking, heat treatment and so on.

The natural ventilation aging test chamber is suitable for the footwear industry, leather industry, electric wire industry, electronics industry, etc., and is used to study the physical property changes of various test pieces under a heating in a fixed time; the function of the hot air circulation ensures the uniform distribution of temperature.



Test sample:

polymer materials, wire and cable sheathing, heat shrinkable tube, PVC and so on.IEC Test Equipment



Feature:

1. Microcomputer electronic digital control mode is adopted, it is precise, accurate, stable and reliable.

2. The chamber insulation package is made of silicon, high temperature resistant, never aging; and an observation window is attached to facilitate the observation of the sample during the experiment.

3. Heating adopts natural circulation (convection wind). The air supply method has a rapid temperature rising speed and uniform distribution.

4. With P.I.D. control system, and double over-temperature protection, it is safe and reliable.

5. The temperature setting is simple, and the operation is much convenient.

6. Attachment turntable, the height is adjustable.



Parameters:

No. Parameter Name Specification
1 Temperature range Normal temperature RT ~ 300 ° C
2 Inner chamber size L 50cm * W 60cm* H 80cm
3 Temperature control PID digit setting, (power about 3300w)
4 Test stand Two trays, two turntables
5 Timer 0~9999H/M/S IEC Test Equipment
6 Temperature resolution 0.1℃
7 Temperature fluctuation ±1℃
8 Distribution error ±2.5℃
9 Air circulation Natural ventilation
10 Observation window Square window
11 Material Inner chamber SUS#304 stainless steel, outer chamber electrostatic spray paint
12 Equipment weight About 120kgs
13 Equipment size 1060mm×700mm×1445mm
14 Power Supply AC 220V, 50Hz





120kgs 50*60*80cm Natural Circulation Heating Cabinet 0
