IEC 60069-1 IEC Test Equipment Conductor Damage Degree Test Apparatus Rate 10 ± 2 R/Min
Contact Person : Tessa Huang
Phone Number : +86 18027403449
WhatsApp : +8618027403449
| Minimum Order Quantity : | 1 Set | Price : | Negotiatable |
|---|---|---|---|
| Packaging Details : | Plywood | Delivery Time : | 30 days |
| Payment Terms : | T/T, L/C | Supply Ability : | 10 set per month |
| Place of Origin: | China | Brand Name: | HeJin |
|---|---|---|---|
| Certification: | Third party calibration certificate/ CE(cost additional) | Model Number: | HDX1301 |
|
Detail Information |
|||
| Product Name: | Universal Conductor Resistance Fixture HDX1301 | Measuring Effective Length: | 1000mm |
|---|---|---|---|
| Standard: | IEC60245-1，IEC60245-2 | Function: | IEC Test Equipment |
| Highlight: | Universal Conductor Resistance Fixture,1000mm Measuring Conductor Resistance Fixture |
||
Product Description

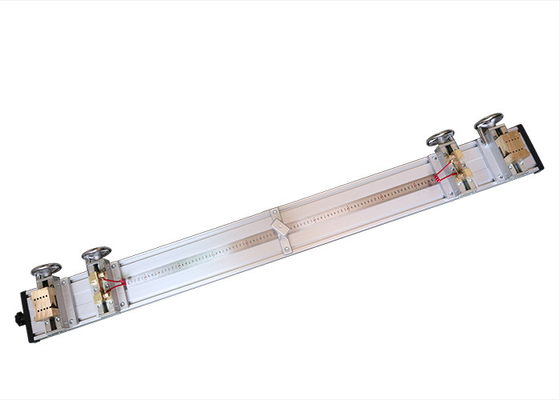

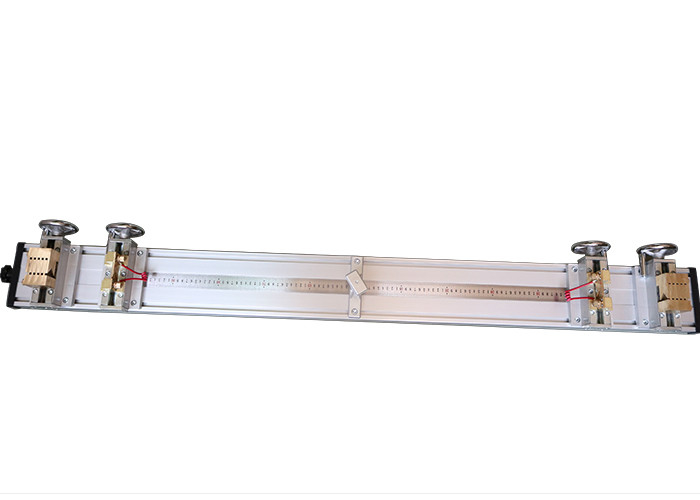

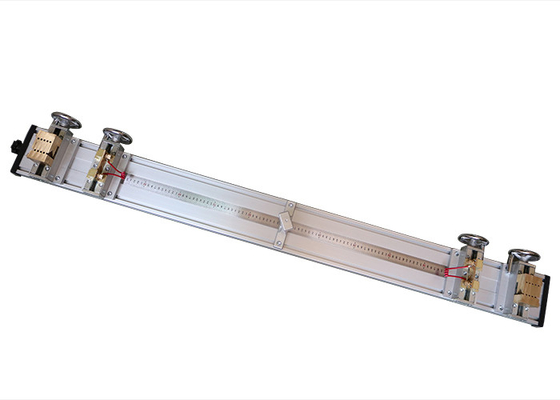

IEC Test Equipment Universal Conductor Resistance Fixture For Power Cable
Standard:
IEC60245-1 Rubber insulated cables-Rated voltages up to and including 450/750 V-Part 1:General requirements.
IEC60245-2 Rubber insulated cables-Rated voltages up to and including 450/750 V-Part 2: Test methods.
Application:
Applicable to the DC resistance measurement of variety of power cables and electrical equipment, wire and cable equipment specified in "Test methods for electrical properties of electric cables and wires" , it can also be used for DC resistance measurement of other conductor materials. IEC Test Equipment.
Test sample:
1mm² ~ 630mm² Single or multi-stand conductor and core of power cable.IEC Test Equipment.
Feature:
It adopts the fast clamp and withdraw structure by using positive and negative threaded rod, and the voltage and the current clamp are separated to improve the contact point of the sample. Aluminum alloy base plate, copper clamp.
Products Introduction:
The apparatus adopts aluminum alloy base plate, reasonable structure and convenient use. It uses screw quick clamping and withdrawing structure, supplemented by adjustable tension device, which is more convenient and flexible. The voltage clamp and current clamp are separated to improve the contact point with the sample.
Test Method:
| 1.Adjustment distance | Since the clamp is adjustable, it is necessary to check whether the distance between the two voltage clamping head is 1 meter before the measurement; the fixture should periodically calibrate the length of 1 meter to the local calibration department |
| 2. Adjust the distance between two current clamping head and the voltage clamping head so that the distance is not less than 1.5 times the circumference of the cross section of the test sample | |
| 3. Wiring | connect the corresponding current, voltage terminals |
| 4.Install the sample | Unscrew the current clamping head, place the sample in the current clamping head ①, ④, straighten the sample and tighten, and rotate the handle ⑥ to tighten the sample (the force should not be too large); then the voltage clamping head ②, ③gently tighten until it is in effective contact |
| 5. The test begins and is recorded | |
Parameters:
| The distance between two voltage clamping head | 100~1000mm |
| Sample application range | 1mm2-630mm2 Single or multiple stranded conductor core |
| Measuring effective length | 1000mm |
| Dimensions | 1530 × 210 × 150mm |
| Adapting electrical bridge | Any bridge and digital resistance tester with four point measurement |
