AC220V 50Hz Electric Wire Abrasion Test Apparatus IEC Test Equipment

Name: AC220V 50Hz Electric Wire Abrasion Test Apparatus IEC Test Equipment
Brand: HJ AUTOMATIC CONTROL TECHNOLOGY CO., LTD
SKU: HDX1304
Availability: InStock

Brand Name:	HeJin
Model Number:	HDX1304
MOQ:	1 Set
Price:	Negotiatable
Payment Terms:	T/T, L/C
Supply Ability:	10 set per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Third party calibration certificate/ CE(cost additional)

Product Name:

Electric Wire Abrasion Test Apparatus HDX1304

Power Supply:

AC200V±10% 50Hz

Working Station:

Counter:

0~999999 (can Be Preset)

Standard:

IEC60245-1，IEC60245-2

Function:

IEC Test Equipment Wear-resistance Test

Test Rate:

Single Strokes 40±1 Times/minute

Test Stroke:

0.1m Up-and-down Movement

Packaging Details:

Plywood

Highlight:

Electric Wire Abrasion Test Apparatus

50Hz Abrasion Test Apparatus

AC220V Abrasion Test Apparatus

Product Description

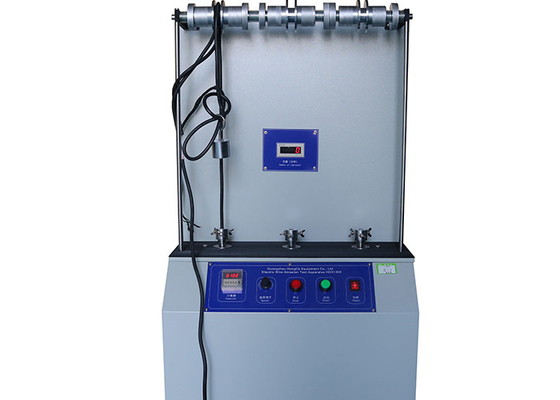

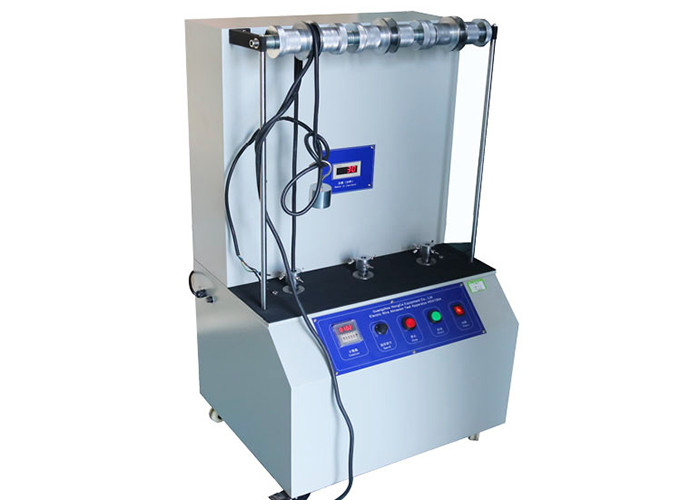

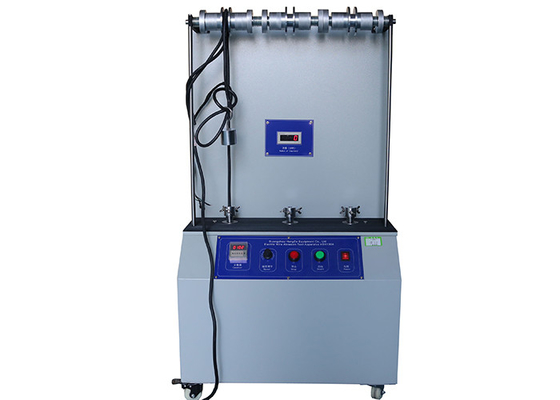

IEC Test Equipment Electric Wire Abrasion Test Apparatus For Completed Flexible Cables

Standard:

IEC60245-1 Rubber insulated cables-Rated voltages up to and including 450/750 V-Part 1:General requirements.

IEC60245-2 clause 3.3 and Figure 3 Rubber insulated cables-Rated voltages up to and including 450/750 V-Part 2: Test methods.

Application:

It is used for checking the wear resistance test of the completed flexible cables. IEC Test Equipment

Test sample:

Completed flexible cables.

Feature:

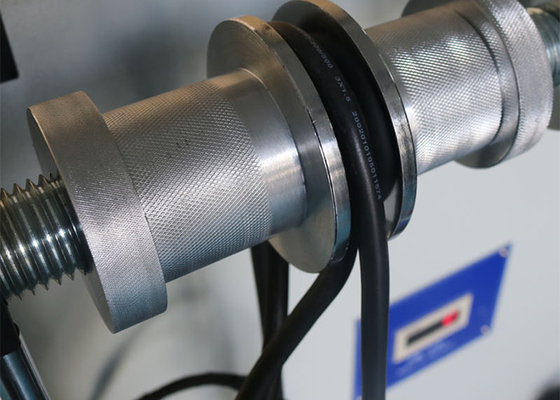

This test shall be made on three pairs of samples of flexible cable, each sample having a length of about 1 m. In each pair one sample shall be wound so as to give nearly two turns on a fixed reel having a diameter of 40 mm at the bottom of the groove as shown in figure 3, the distance between the flanges of the reel being such that the turns are in close contact with each other. The sample shall then be fixed to prevent any movement relative to the reel. The other sample shall be placed in the groove formed by the turns and a weight having a mass of 500 g shall be attached to one end. The other end shall be moved up and down over a distance of 0.10 m, at a rate of about 40 single strokes per minute.

Parameters:

Power supply	AC220V 50Hz IEC Test Equipment
Fixed shaft diameter	Φ40±0.3mm
Test rate	Single strokes 40±1 times/minute
Test stroke	0.1m up-and-down movement
Working station	3
Weight	500±5g*3
Counter	0~999999 (can be preset)
Dimension	1200×400×1400 (mm)
