AC220V 50HZ Flexible Cable Flexing Tester IEC Test Equipment

Minimum Order Quantity : 1 set Price : Negotiatable
Packaging Details : Plywood Delivery Time : 30 days
Payment Terms : L/C, T/T Supply Ability : 10 set /month
Place of Origin: China Brand Name: HeJin
Certification: calibration certificate (cost additional) Model Number: HDX1302

Detail Information

Product Name: Flexible Cables Flexing Tester HDX1302 Power Supply: AC 220V/ 50HZ
Testing Speed: 0.33m/s Voltage Loading: 0-400V
Testing Distance: 1000±20mm Current Loading Of Cores: 0-25A
Suitable Cores: 2-18 Standard: IEC60245
Highlight:

50HZ Flexible Cable Flexing Tester

,

AC220V Flexible Cable Flexing Tester

,

50HZ IEC Test Equipment

Product Description

IEC Test Equipment Flexible Cables Flexing Tester For Completed Flexible Cables



Standard:

IEC60245-1’Rubber insulated cables-Rated voltages up to and including 450/750 V-Part 1:General requirements’.

IEC60245-2 ‘Rubber insulated cables - Rated voltages up to and including 450/750 V - Part 2: Test methods’clause 3.1.



Application:

It is used for checking mechanical strength of completed flexible cables. This test does not apply to flexible cables with cores of nominal cross-sectional area greater than 4mm2 and cables having more than 18 cores laid up in more than two concentric layers.



Test sample:

Completed flexible cables.



Feature:

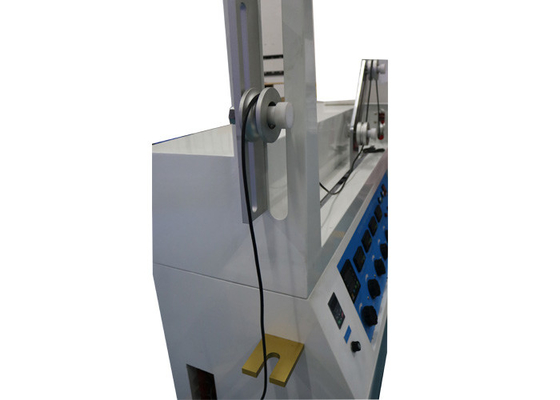

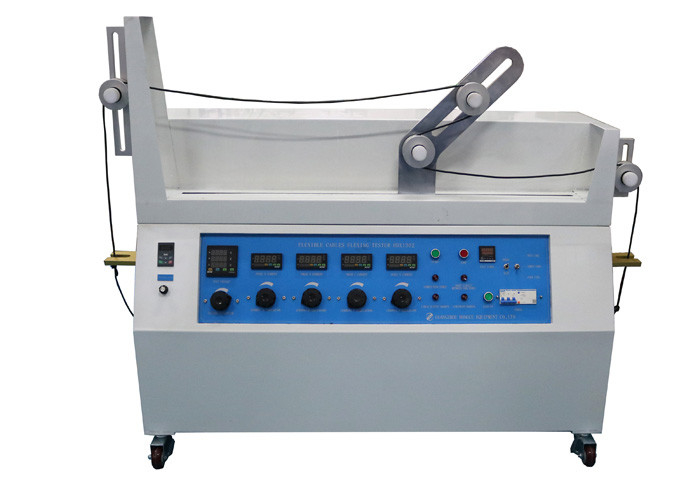

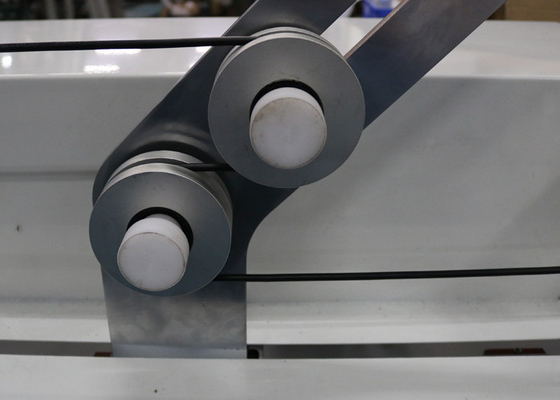

This cable tester consists of a carrier C (see IEC60245-2 Figure 1),a driving system for the carrier and four pulleys for each sample of cable to be tested. The carrier C supports two pulleys A and B, which are of the same diameter. The two fixed pulleys, at either end of the apparatus, may be of a different diameter from pulleys A and B, but all four pulleys shall be so arranged that the sample is horizontal between them. The carrier makes cycles (forward and backward movements) over a distance of 1 m at an approximately constant speed of 0,33m/s between each reversal of the direction of movement. A sample of flexible cable about 5 m long shall be stretched over the pulleys, each end being loaded with a weight. The mass of this weight and the diameter of pulleys A and B are given in following table.



Parameters:

Power supply AC 220V/ 50HZ
Current loading of cores 0-25A
Voltage loading 0-400V
Testing speed 0.33m/s
Testing distance 1000±20mm
Suitable cores 2-18
Nominal cross-sectional area 0.2~4mm2
Diameter of pulleys 60,80,120,160,200mm ( Customer optional: Standard equipped 3pcs)
Combined weights 0.5kg, 1kg, 1.5kg, 2kg, 2.5kg, 3kg, 3.5kg, 4kg, 6kg, 7.5kg, 8kg
Fault testing Current interruption, short circuit between conductors, test and short circuit between the pulley.



AC220V 50HZ Flexible Cable Flexing Tester IEC Test Equipment 0AC220V 50HZ Flexible Cable Flexing Tester IEC Test Equipment 1
