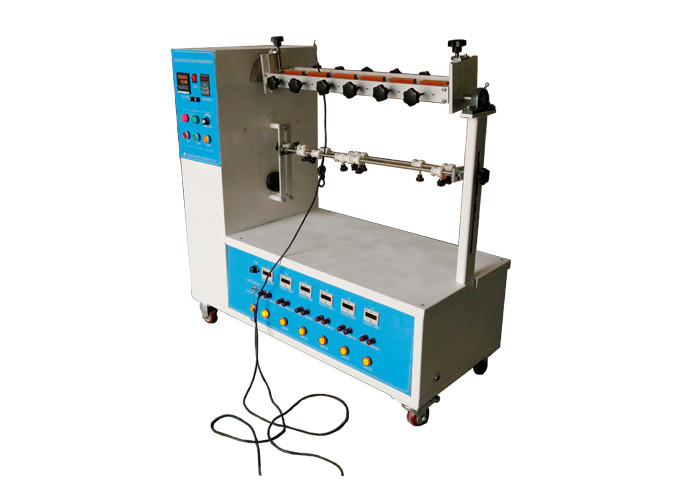

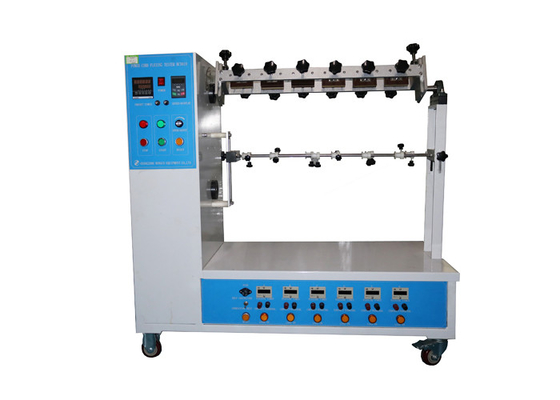

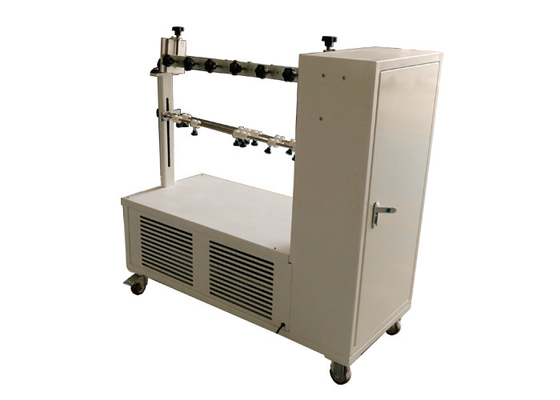

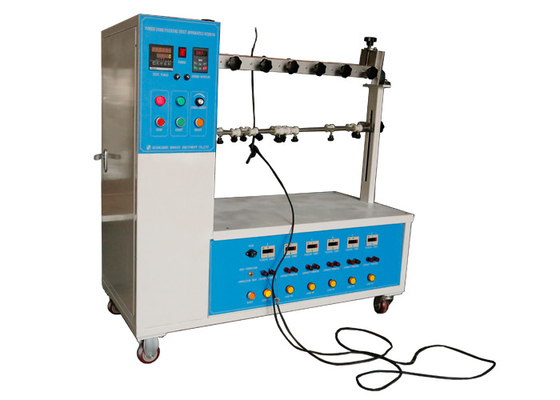

IEC60884 Power Cord Flexing Test Apparatus

Name: IEC60884 Power Cord Flexing Test Apparatus
Brand: HJ AUTOMATIC CONTROL TECHNOLOGY CO., LTD
SKU: HC9919
Availability: InStock

Brand Name:	HeJin
Model Number:	HC9919
MOQ:	1 set
Price:	Negotiatable
Payment Terms:	L/C, T/T
Supply Ability:	10 set /month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

calibration certificate (cost additional)

Product Name:

Power Cord Flexing Tester HC9919

Power Supply:

AC 220V 50Hz

Test Station:

6 Stations

Standard:

IEC 60884-1

Weight:

10N, 20N

Function:

Flexing Test For Non-rewirable Plugs And Non-rewirable Portable Socket-outlets

Test Time:

0-999999 Preset

Flexing Rate:

10-60rpm

Packaging Details:

Plywood

Highlight:

IEC60884 Power Cord Flexing Test Apparatus

IEC60884 Flexing Test Apparatus

IEC60884 Power Cord Test Apparatus

Product Description

IEC 60884 Figure 21 Plug Socket Test Equipment Power Cord Flexing Tester

Standard:

IEC 60884-1 2013 ‘Plugs and socket-outlets for household and similar purposes -- Part 1: General requirements’ clause 23.4 and figure 21

Application:

This device is used for test the flexing properties of non-rewirable plugs (terminals) and non-rewirable portable socket-outlets, check the fatigue strength of the power cable and jacket. Plug Socket Test Equipment

Test sample:

Non-rewirable plugs and non-rewirable portable socket-outlets.Plug Socket Test Equipment

Feature:

The speed reducing motor controls the crank sliding block structure to do the reciprocating motion, the left and right flexing angles are adjusted by manual scale, and angle automatic adjustment touch screen model can be customized.

Tester will automatic shutdown when preset test times completed.

Parameters:

Power supply	AC220V 50Hz
Flexing angle	Swivel angle on either side for 45° , 60°, or 90°. Adjustable
Flexing rate	10~60rpm (frequency conversion), the default 60 times /min
Weights	20N, 10N. 6 each(UL 113g and 284g weights can be customized)
Test station	6 stations, with 6 sets of clamp device
Test times	one general counter, 6 individual counters. 0~999999 preset
Mechanical theory	The crank block on the reduction gearbox is driven by the electric motor to do the reciprocating action
Cord broken indicator	Φ25 red indicating light
Dimension	L1000mmW500mmH1100 mm

IEC60884 Power Cord Flexing Test Apparatus 0
