GB12021.9 1600mm Ceiling Fan Air Performance Tester Chamber
Contact Person : Anglia Chen
Phone Number : +86 17724266108
WhatsApp : +8617724266108
Minimum Order Quantity : | 1 Set | Price : | Negotiatable |
---|---|---|---|
Packaging Details : | Plywood | Delivery Time : | 3 months |
Payment Terms : | T/T, L/C | Supply Ability : | 1 set per 3 month |
Place of Origin: | China | Brand Name: | HeJin |
---|---|---|---|
Certification: | Third party calibration certificate(cost additional) | Model Number: | HJFVA01 |
Detail Information |
|||
Product Name: | Table Fan/ Pedestal Fan Air Performance Test Chamber HJFVA01 | Function: | Performance Test Chamber For Comfort Fan |
---|---|---|---|
Test Sample: | Table Fan, Wall Fan, Floor Fan, Top Fan And Louver Fan, Pedestal Fan | Standard: | GB13380, GB12021.9, IEC 60879 |
Test Sation: | Customizable | Test Sample Range: | 200mm ~ 600mm |
Usage: | Performance Test Of Fan, Air Performance Test | Control: | Computer Control |
High Light: | Pedestal Fan Performance Test Lab,GB13380 Fan Performance Test Lab,GB13380 Computer Control Fan Performance Test |
Product Description
Appliance Performance Test Lab Table Fan/ Pedestal Fan Air Performance Test Chamber
Standard:
GB13380 AC electric fans and regulators annex A
GB 12021.9 Minimum allowable values of energy efficiency and energy efficiency grades for AC electric fans
IEC 60879 Comfort fans and regulators for household and similar purposes- Methods for measuring performance clause 5.2
Application:
The table fan/floor fan air performance test system meets the requirements of GB/T13380-2007 standard for air performance test. It has a reasonable design, high degree of automation, easy to use, and durable. It is made of steel plate with a thickness of at least 30mm, which is load-bearing and resistant. Strong vibration ability; Appliance Performance Test Lab
Test sample range:
200mm ~ 600mm table fan, wall fan, floor fan, top fan and louver fan, pedestal fan;
Feature:
The system adopts computer control, which can display the wind speed value of each test point, generally one measurement point every 3 minutes (including walking position, delay and test time), and the average wind speed and point air volume of each ring can automatically generate detection The results and process curves are printed out.

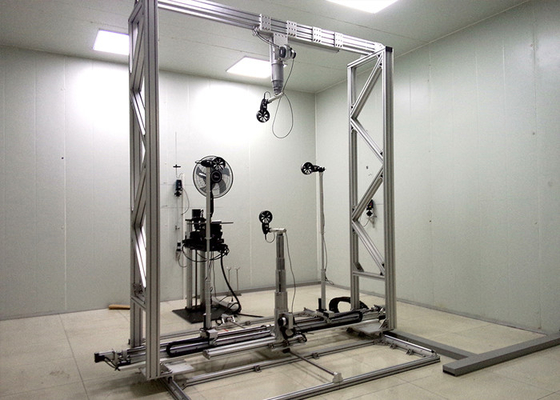

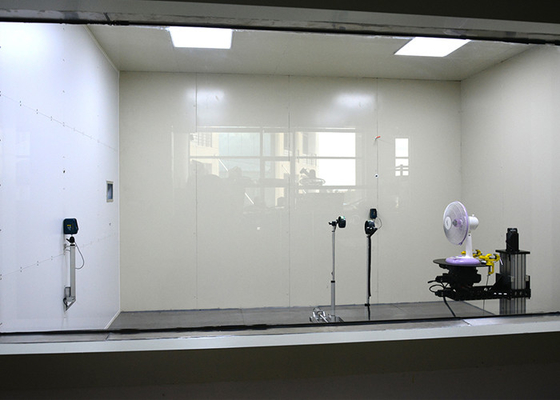

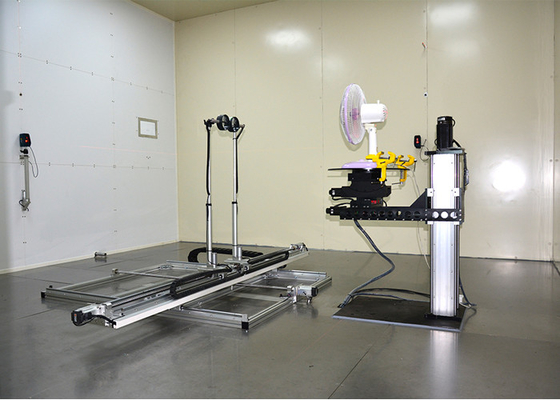

Test Chamber:
Length | Electric fan less than or equal to 400mm is 4500mm, electric fan greater than 400mm is 6000mm |
Width | 4500mm |
Height | 3000mm |
