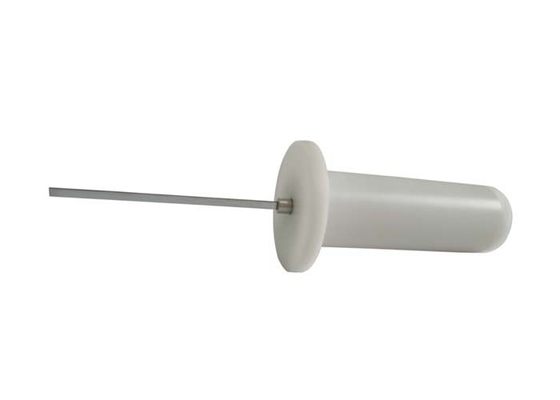

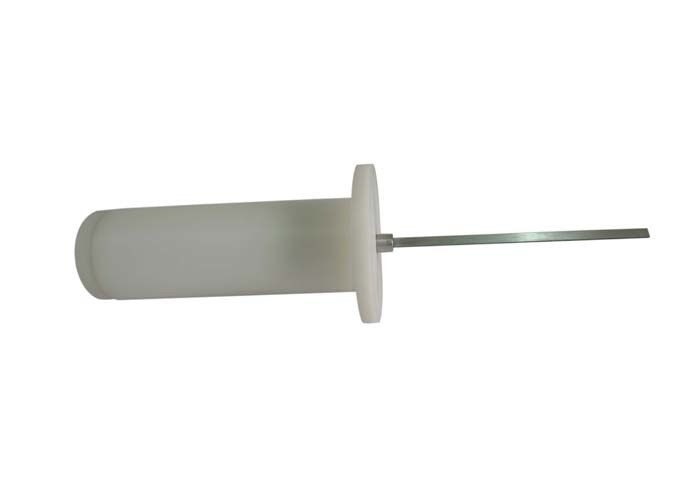

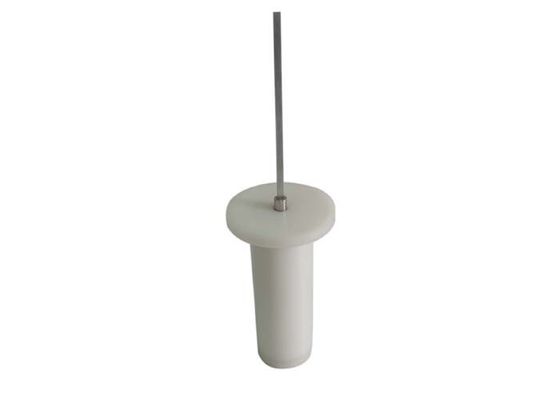

HT-I10 Figure 10 Test Finger Probe 14 With 80mm Length Bar

Name: HT-I10 Figure 10 Test Finger Probe 14 With 80mm Length Bar
Brand: HJ AUTOMATIC CONTROL TECHNOLOGY CO., LTD
SKU: HT-I10
Availability: InStock

Brand Name:	HeJin
Model Number:	HT-I10
MOQ:	1 set
Price:	Negotiatable
Payment Terms:	L/C, T/T
Supply Ability:	30 sets / per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

calibration certificate (cost additional)

Product Name:

Test Probe 14 HT-I10

Usage:

Access Probes To Hazardous Live Parts Or Hazardous Mechanical Parts

Probe Code:

14, Test Finger Probe

Description:

Bar: 3 × 1

Standard:

IEC 61032,

Material:

Steel Bar + Nylon Handle

Bar Width:

3mm

Bar Height:

1mm

Bar Length:

80mm

Application:

Test Finger Probe

Packaging Details:

Cartoon Box

Highlight:

HT-I10 Test Finger Probe

Figure 10 Test Finger Probe

HT-I10 Test Probe 14

Product Description

IEC61032 Test Finger Probe Figure 10 Test Probe 14 With 80mm Length Bar

Standard:

IEC 61032 ‘Protection of persons and equipment by enclosures – Probes for verification’ figure 10 test probe 14.

Application:

Other access probes to verify protection of persons against access to hazardous live parts or hazardous mechanical parts.

This bar is intended to verify the protection against access to hazardous live parts of socket- outlets through shutters.

Feature:

It can be used for enclosure protection test when open threaded hole of M6 at the end of the handle (connected with pull and push gauge).

Parameters:

Model	HT-I10
Name	Test Probe 14 Test Finger Probe
Long pin width	3+0.03 0
Long pin height	1+0.015 0
Long pin length	80±0.5
Chamfer edge	R0.2±0.05

HT-I10 Figure 10 Test Finger Probe 14 With 80mm Length Bar 0
