15mm Length Figure 9 Test Probe 13 Of IEC 61032

Place of Origin:	China	Brand Name:	HeJin
Certification:	calibration certificate (cost additional)	Model Number:	HT-I09

Detail Information
Product Name:	Test Probe 13 HT-I09	Usage:	Access Probes To Hazardous Live Parts Or Hazardous Mechanical Parts
Probe Code:	13, Test Finger Probe	Description:	Conical Pin: ∅ 3 To 4 – Length 15
Standard:	IEC 61032, IEC 60335-1, IEC 60950-1, IEC 60065-1	Material:	Steel Conical Pin + Nylon Handle
Metal Pin Diameter:	Ф3 To 4mm	Metal Pin Length:	15mm
Baffle Thickness:	4mm	Baffle Diameter:	Ф25mm
High Light:	Test Probe 13 Of Iec 61032 , 15mm Figure 9 Test Probe , Figure 9 Test Probe Iec 61032

Product Description

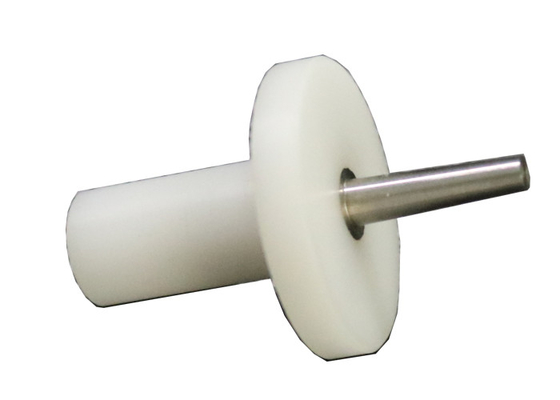

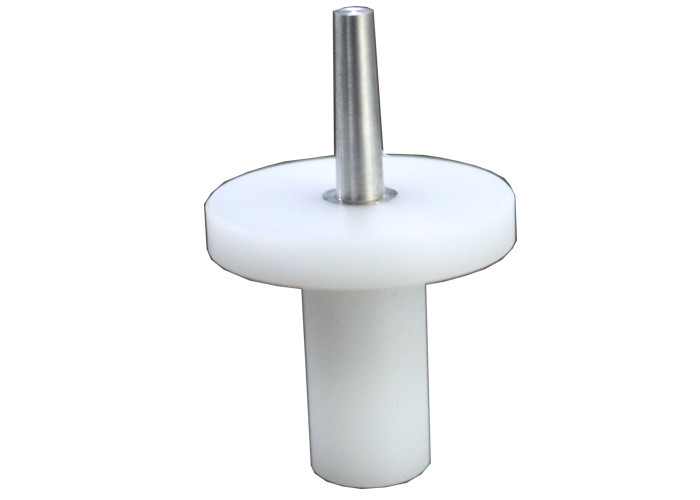

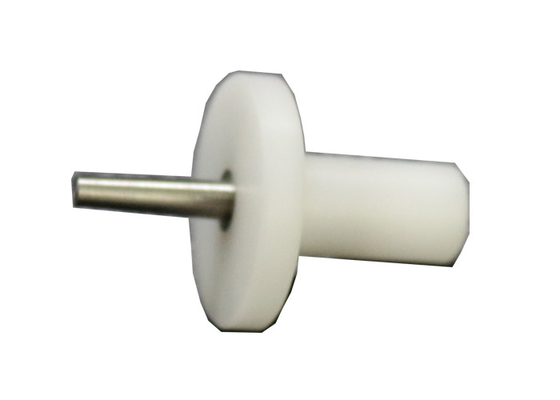

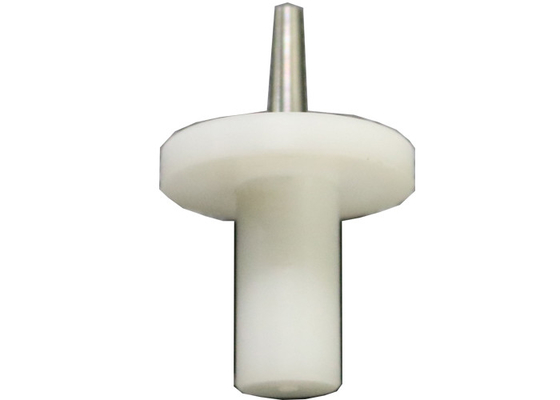

IEC61032 Test Finger Probe Figure 9 Test Probe 13 With 15mm Length Metal Pin

Standard:

IEC 61032 ‘Protection of persons and equipment by enclosures – Probes for verification’ figure 9 test probe 13.

IEC 60335-1 ‘Household and similar electrical appliances – Safety – Part 1: General requirements’

IEC 60950-1 ‘Information technology equipment – Safety – Part 1: General requirements’ figure 2B.

Application:

Other access probes to verify protection of persons against access to hazardous live parts or hazardous mechanical parts.

This pin is intended to verify the protection against access to hazardous live parts in class 0 equipment and class II equipment (see IEC 60536).

Feature:

It can be used for enclosure protection test when open threaded hole of M6 at the end of the handle (connected with pull and push gauge).

Parameters:

Model	HT-I09
Name	Short Test Pin Probe Test Probe 13 Test Finger Probe
Metal pin tip diameter	Ф3 0 -0.05
Metal pin tail diameter	Ф4 0 -0.05
Metal pin length	15 0 -0.1
Baffle diameter	Ф25±0.2
Baffle thickness	4
Handle diameter	Ф10
Handle length	20

15mm Length Figure 9 Test Probe 13 Of IEC 61032 0
