Long Cylindrical 50mm Length Pin IEC 61032 Test Probe 12

Name: Long Cylindrical 50mm Length Pin IEC 61032 Test Probe 12
Brand: HJ AUTOMATIC CONTROL TECHNOLOGY CO., LTD
SKU: HT-I08
Availability: InStock

Brand Name:	HeJin
Model Number:	HT-I08
MOQ:	1 set
Price:	Negotiatable
Payment Terms:	L/C, T/T
Supply Ability:	30 sets / per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

calibration certificate (cost additional)

Product Name:

Test Probe 12 HT-I08

Usage:

Access Probes To Hazardous Live Parts Or Hazardous Mechanical Parts

Probe Code:

12, Test Finger Probe

Description:

Cylindrical Pin: ∅ 4 – Length 50

Standard:

IEC 61032

Material:

Steel Cylindrical Pin + Nylon Handle

Metal Pin Diameter:

Ф4mm

Metal Pin Length:

50mm

Packaging Details:

Cartoon Box

Highlight:

IEC 61032 Test Probe 12

50mm IEC 61032 Test Probe

Cylindrical IEC 61032 Test Probe

Product Description

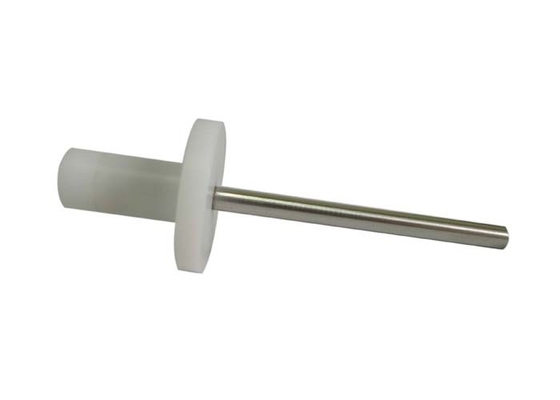

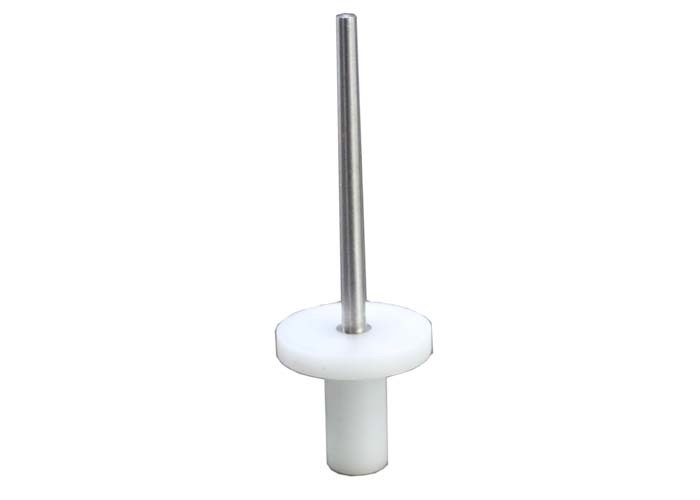

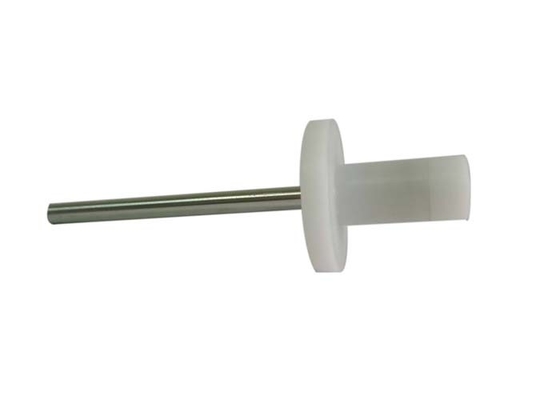

IEC61032 Test Finger Probe Figure 8 Test Probe 12 With 50mm Length Pin

Standard:

IEC 61032 ‘Protection of persons and equipment by enclosures – Probes for verification’ figure 8 test probe 12.

Application:

Other access probes to verify protection of persons against access to hazardous live parts or hazardous mechanical parts.

This pin is intended to be used on appliances for verifying the inaccessibility of hazardous live parts or hazardous mechanical parts which are liable to be touched accidentally by a tool, for example a screwdriver or similar pointed object in normal use.

Feature:

It can be used for enclosure protection test when open threaded hole of M6 at the end of the handle (connected with pull and push gauge).

Parameters:

Model	HT-I08
Name	Long Pin Test Probe 12 Test Finger Probe
Metal pin diameter	Ф4±0.05
Metal pin length	50±0.15
Baffle diameter	Ф25±0.2
Baffle thickness	4
Handle diameter	Ф10
Handle length	20
