80mm Length Unjointed Figure 7 IEC 61032 Test Probe 11

Name: 80mm Length Unjointed Figure 7 IEC 61032 Test Probe 11
Brand: HJ AUTOMATIC CONTROL TECHNOLOGY CO., LTD
SKU: HT-I07
Availability: InStock

Brand Name:	HeJin
Model Number:	HT-I07
MOQ:	1 set
Price:	Negotiatable
Payment Terms:	L/C, T/T
Supply Ability:	30 sets / per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

calibration certificate (cost additional)

Product Name:

Test Probe 11 HT-I07

Usage:

Access Probes To Hazardous Live Parts Or Hazardous Mechanical Parts

Probe Code:

11, Test Finger Probe

Description:

Unjointed Test Finger

Standard:

IEC 61032, IEC 60335-1, IEC 60884-1, IEC 60598-1

Material:

Steel Test Finger+ Nylon Handle

Test Finger Length:

80mm

Test Finger Diameter:

∅ 12mm

Packaging Details:

Cartoon Box

Highlight:

IEC 61032 Test Probe 11

Figure 7 IEC 61032 Test Probe

Unjointed IEC 61032 Test Probe 11

Product Description

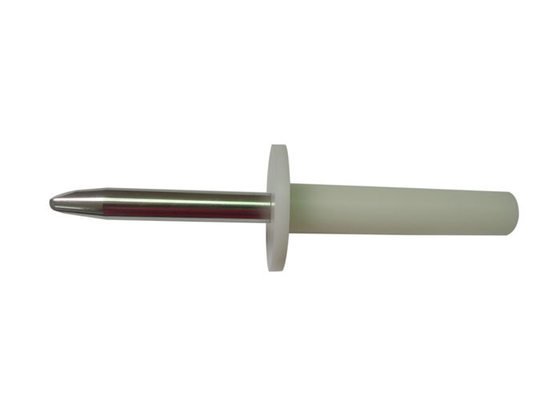

IEC61032 Test Finger Probe Figure 7 Test Probe 11 Unjointed Test Finger

Standard:

IEC 61032 ‘Protection of persons and equipment by enclosures – Probes for verification’ figure 7 test probe 11.

IEC 60335-1 ‘Household and similar electrical appliances – Safety – Part 1: General requirements’

Application:

Other access probes to verify protection of persons against access to hazardous live parts or hazardous mechanical parts

This probe may be used to verify the protection of persons against access to hazardous parts, and to verify the mechanical strength of openings in the enclosure or internal barriers.

Feature:

Unjointed test finger.

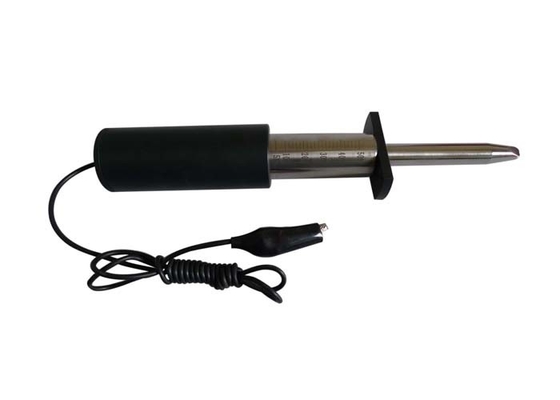

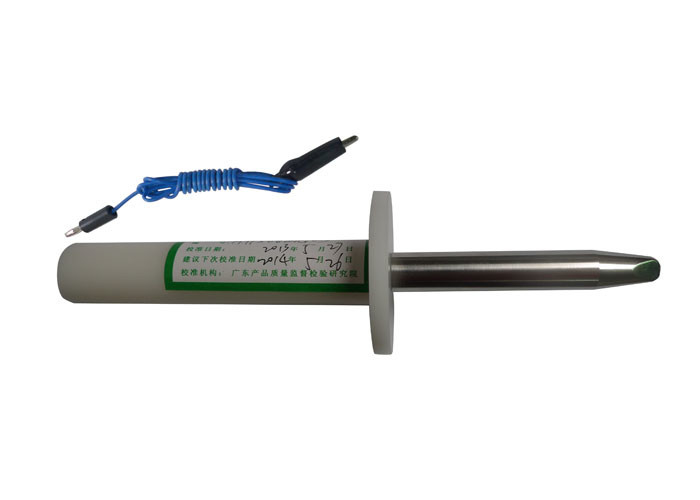

Can be used with an electrical indicator for anti-electric shock test.

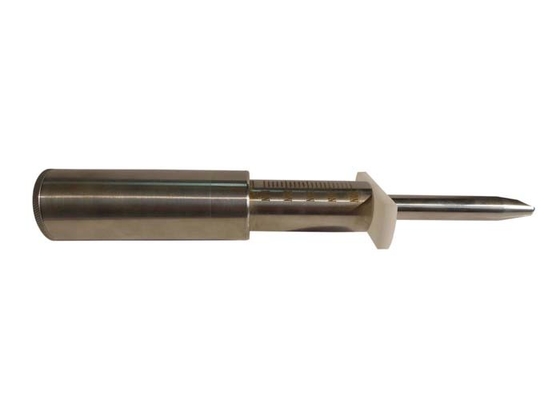

A hole (M6) can be made at the end of the handle for connection with a push-pull gauge. The model with ‘T’ means that this model is with force.

There are two kinds of shell that can be chosen: the nylon shell(for anti-electric shock test) and stainless steel shell(for strength test).

Parameter:

Parameters /Model	HT-I07	HT-I07T1	HT-I07T2
Name	Rigid Finger Probe Test Probe 11 Unjointed Test Finger.	Rigid Finger Probe with 50N force	Rigid Finger Probe with 75N force
1	20 0 -0.05	20 0 -0.05	20 0 -0.05
2	80±0.2	80±0.2	80±0.2
3	R2±0.05	R2±0.05	R2±0.05
4	S4±0.05	S4±0.05	S4±0.05
5	37o 0 -10’	37o 0 -10’	37o 0 -10’
6	14 o 0 -10’	14 o 0 -10’	14 o 0 -10’
7	Ф12 0 -0.05	Ф12 0 -0.05	Ф12 0 -0.05
8	Ф50	Ф50	----
9	5±0.5	5±0.5	----
10	----	With force of 0-50N	With force of 0-75N

80mm Length Unjointed Figure 7 IEC 61032 Test Probe 11 0
