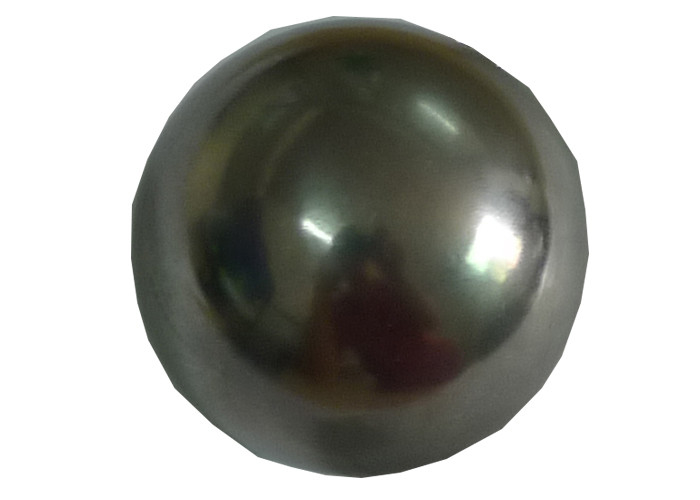

500g 50mm Diameter Steel Sphere Figure 5 Test Probe 1

Minimum Order Quantity : 1 set Price : Negotiatable
Packaging Details : Cartoon Box Delivery Time : 3 days
Payment Terms : L/C, T/T Supply Ability : 30 sets / per month
Place of Origin: China Brand Name: HeJin
Certification: calibration certificate (cost additional) Model Number: HT-I05

Detail Information

Product Name: Test Probe 1 HT-I05 Usage: Object Probes Of IEC 60529 (IP Code)
Probe Code: 1, Test Finger Probe Description: Sphere: ∅ 50
Standard: IEC 61032, IEC 60529-1, IEC 60335-1 Material: Steel
Sphere: Ф50mm Weight: 500±25g
High Light:

50mm Figure 5 Test Probe 1

,

500g Figure 5 Test Probe 1

,

Steel Sphere Figure 5 Test Probe

Product Description

IEC61032 Test Finger Probe Figure 5 Test Probe 1 With 50mm Diameter Sphere

Standard:



IEC 61032 ‘Protection of persons and equipment by enclosures – Probes for verification’ figure 5 test probe 1.

IEC 60529 Degrees of protection provided by enclosures (IP Code) IP1X

IEC 60335-1 ‘Household and similar electrical appliances – Safety – Part 1: General requirements’



Application:

This sphere is intended to verify the degree of protection of enclosures against ingress of solid foreign objects having a diameter of 50 mm or greater.

Object probes of IEC 60529 (IP code) to verify protection of equipment against ingress of solid foreign objects.



Feature:

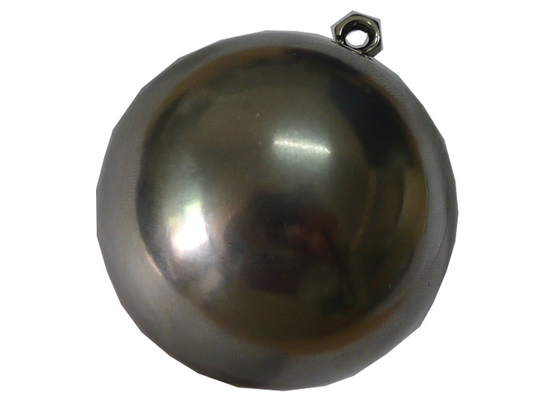

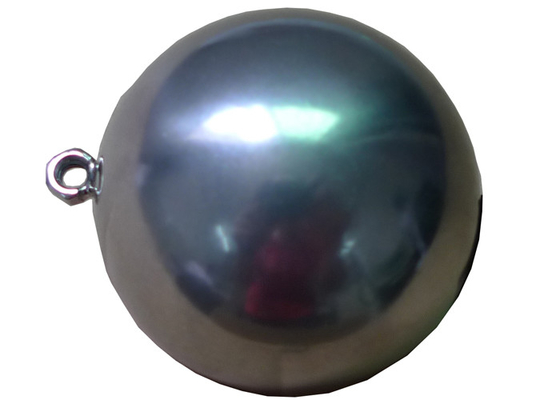

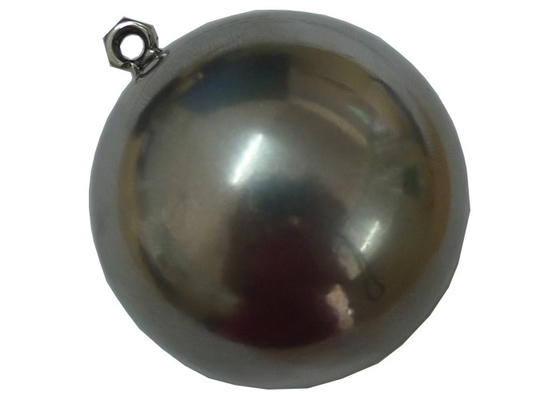

Steel ball, a model with ring is for option. Can be used for dropping impact test. Steel ball with other diameters can be customized.



Parameter:

Model HT-I05 HT-I05A HT-I05B
Name

Test probe 1

Test Finger Probe

50mm steel ball with ring 50.8mm steel ball with ring
Steel ball diameter SФ50±0.2 SФ50 SФ50.8
Weight 500±25g 500±25g 535±25g
Applied standard IEC61032.1 GB4943.1-2011 UL507



500g 50mm Diameter Steel Sphere Figure 5 Test Probe 1 0



FAQ:

Q: How long is the warranty?

A: It is 1 year, we will provide free spare parts to you for repairing during the warranty period.

Q: Do you accept OEM or ODM?

A: Yes, you only need to provide your logo files or your ideas.

Q: Can I order samples of aroma diffuser scent air machine for testing at first?

A: Yes, of course!

Q: How can I order?

A: You need to tell us the model and quantity you are interested then we will make proforma invoice for you. The cargo will be sent to you in 3 days(for samples) after the payment is received.

Q: Do you have a factory?

A: Yes, we have our own factory with more than 15 years' experience in safety testing equipment marketing.
