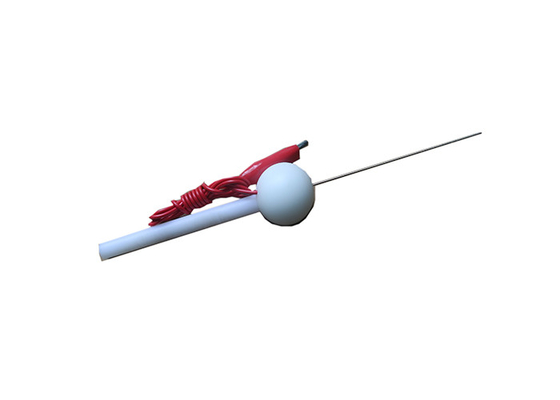

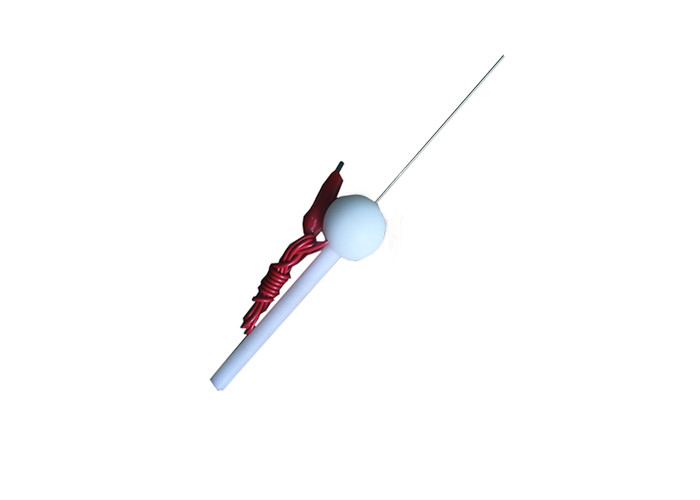

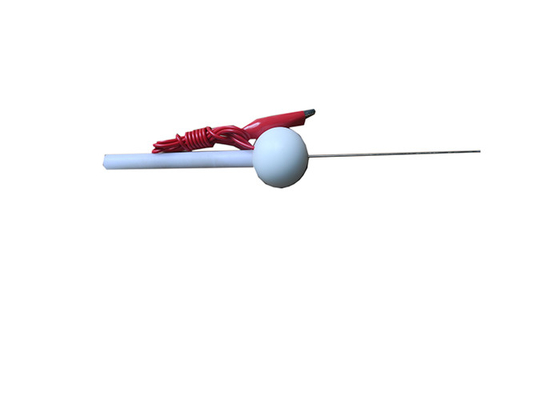

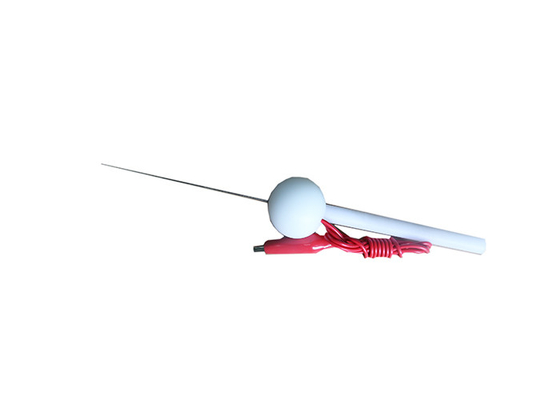

Ф1.0mm Wire IEC Figure 4 Terminal Test Probe D

Name: Ф1.0mm Wire IEC Figure 4 Terminal Test Probe D
Brand: HJ AUTOMATIC CONTROL TECHNOLOGY CO., LTD
SKU: HT-I04
Availability: InStock

Brand Name:	HeJin
Model Number:	HT-I04
MOQ:	1 set
Price:	Negotiatable
Payment Terms:	L/C, T/T
Supply Ability:	30 sets / per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

calibration certificate (cost additional)

Product Name:

Test Probe D HT-I04

Usage:

Access Probes Of IEC 60529 (IP Code)

Probe Code:

D, Test Finger Probe

WIRE:

Ф1.0mm

Description:

Wire: ∅ 1,0 – Length 100

Standard:

IEC 61032, IEC 60529-1, IEC 60335-1

Material:

Nylon Handle + Metal Wire

Sphere:

Ф35mm

Rod Length:

100mm

Handle Length:

100mm

Packaging Details:

Cartoon Box

Highlight:

IEC Terminal Test Probe C

Ф1.0mm Terminal Test Probe C

Ф1.0mm Figure 3 Test Probe C

Product Description

IEC61032 Test Finger Probe Figure 4 Test Probe D With 1mm Diameter Wire

Standard:

IEC 61032 ‘Protection of persons and equipment by enclosures – Probes for verification’ figure 4 test probe D.

IEC 60529 Degrees of protection provided by enclosures (IP Code) IP4X

IEC 60335-1 ‘Household and similar electrical appliances – Safety – Part 1: General requirements’

Application:

This wire is intended to verify the protection of persons against access to hazardous parts. It is also used to verify the protection against access with a wire.

Access probes of IEC 60529 (IP code) to verify protection of persons against access to hazardous live parts or hazardous mechanical parts

Feature:

Can be used with an electrical indicator for anti-electric shock test.

A hole (M6) can be made at the end of the handle for connection with a push-pull gauge. The model with ‘T’ means that this model is with force.

Parameter:

Model	HT-I04	HT-I04T
Name	Test probe D Test Finger Probe	Test rod probe with force
Diameter of the metal wire	Ф1+0.05 0	Ф1+0.05 0
Sphere diameter	SФ35±0.2	SФ35±0.2
Handle diameter	Ф10	Ф10
Probe length	100±0.2	100±0.2
Handle length	100	----
Force	----	With force of 1N
Applied standard	IEC 61032	IEC 60529-1

Ф1.0mm Wire IEC Figure 4 Terminal Test Probe D 0
