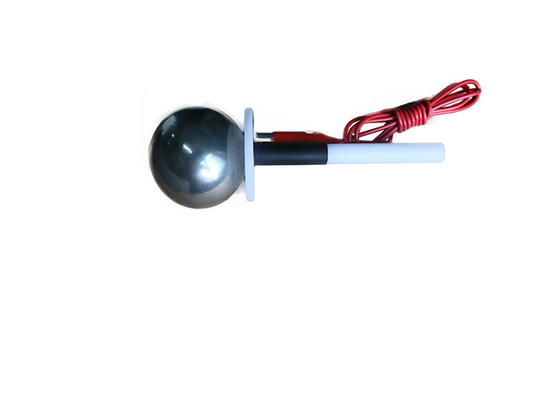

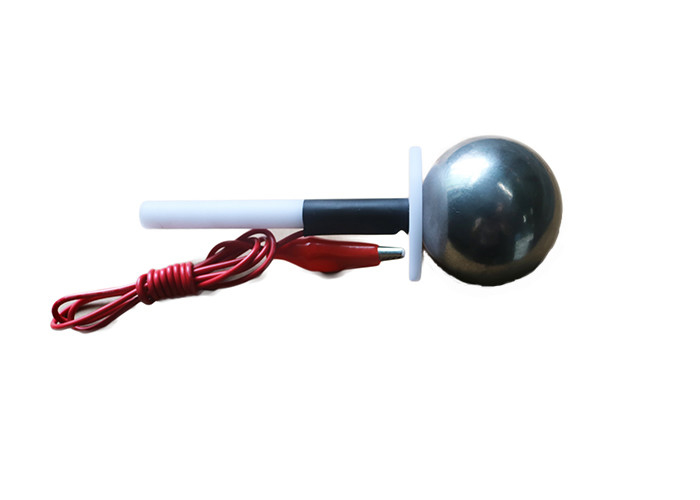

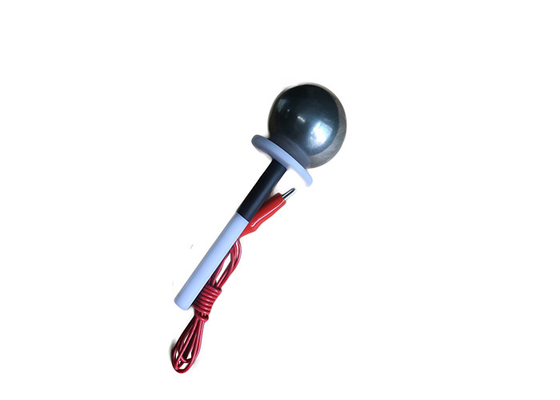

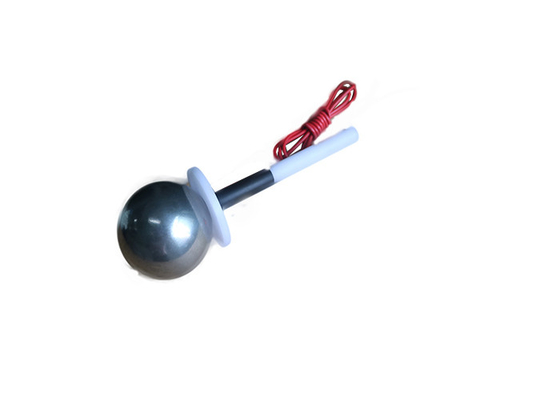

Nylon Handle Figure 1 50mm Sphere Test Finger Probe A

Name: Nylon Handle Figure 1 50mm Sphere Test Finger Probe A
Brand: HJ AUTOMATIC CONTROL TECHNOLOGY CO., LTD
SKU: HT-I01
Availability: InStock

Brand Name:	HeJin
Model Number:	HT-I01
MOQ:	1 set
Price:	Negotiatable
Payment Terms:	L/C, T/T
Supply Ability:	30 sets / per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

calibration certificate (cost additional)

Product Name:

Test Probe A HT-I01

Usage:

Access Probes Of IEC 60529 (IP Code)

Color:

White

Probe Code:

A, Test Finger Probe

Sphere:

∅ 50mm

Description:

Sphere: ∅ 50 With Handle

Standard:

IEC 61032, IEC 60529-1, IEC 60335-1

Material:

Nylon Handle + Stainless Steel Sphere

Packaging Details:

Cartoon Box

Highlight:

Sphere Test Finger Probe A

50mm Test Finger Probe A

Nylon Handle Figure 1 Test Probe

Product Description

IEC61032 Test Finger Probe Figure 1 Test Probe A With 50mm Sphere

Standard:

IEC 61032 ‘Protection of persons and equipment by enclosures – Probes for verification’ figure 1 test probe A.

IEC 60529 Degrees of protection provided by enclosures (IP Code) IP1X

IEC 60335-1 ‘Household and similar electrical appliances – Safety – Part 1: General requirements’

Application:

This probe is intended to verify the protection of persons against access to hazardous parts. It is also used to verify the protection against access with the back of the hand.

Access probes of IEC 60529 (IP code) to verify protection of persons against access to hazardous live parts or hazardous mechanical parts

Feature:

A hole (M6) can be made at the end of the handle for connection with a push-pull gauge. The model with ‘T’ means that this model is with force.

Parameter:

Model	HT-I01	HT-I01T
Name	Test probe A Test Finger Probe	Test probe A with force
Rigid test ball diameter (metal)	SФ50+0.05 0	SФ50+0.05 0
Baffle diameter (nylon)	Ф45±0.2	Ф45±0.2
Baffle thickness	4	4
Handle diameter	Ф10	Ф10
Handle length (nylon)	100	100
Force	----	With force of 0-50N
