Rustproof Ingress Protection Test Equipment Access Probes

Detail Information

Place of Origin:

China

Certification:

calibration certificate (cost additional)

Usage:

Tests For Protection Of Persons Against Access To Hazardous Parts

Application:

Test Conditions For Degrees Of Protection Indicated By The First Characteristic Numeral 1,2,3,4

Function:

Tests For Protection Against Solid Foreign Objects Indicated By The First Characteristic Numeral

Material:

Stainless Steel And Nylon

Packaging Details:

Carton Box

Highlight:

Product Description

IP Test Equipment Access Probes For The Tests For Degrees Of Protection By IP1X To IP4X

Standard:

IEC 60529 Degrees of protection provided by enclosures (IP Code) IP1X, IP2X, IP3X, IP4X

Application:

It is used to indicate the degrees of protection provided by an enclosure against access to hazardous parts, ingress of solid foreign objects.

Parameter:

It is concluded to the following test probes according to the degree of protection provided by an enclosure is indicated by the IP Code:

Test Sphere Probe HT-I01, Sphere 50 mm diameter, test force 50N±10 %
Test Finger Probe B HT-I02, Jointed test finger, test force 10N±10 %
Test Rod Probe C HT-I03, Test rod 2.5 mm diameter, 100 mm long, test force 3N± 10 %
Test Rod Probe D HT-I04, Test rod 1.0 mm diameter, 100 mm long, test force 1N± 10 %

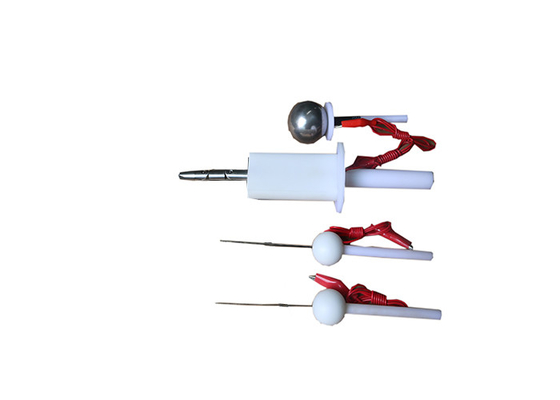

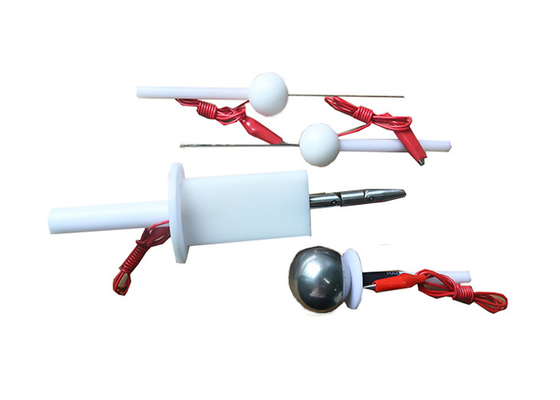

Rustproof Ingress Protection Test Equipment Access Probes 0

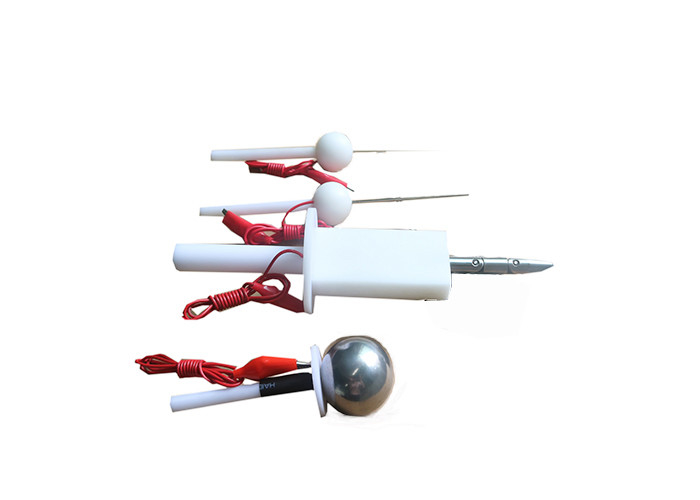

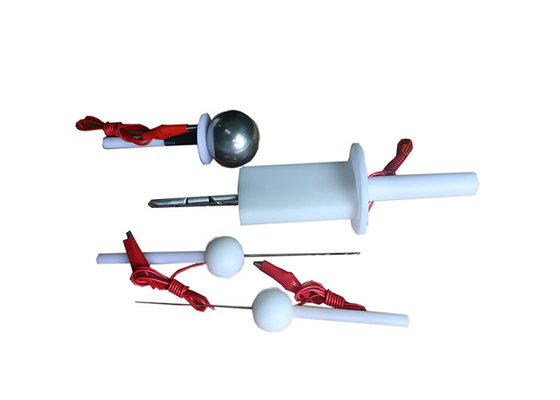

Rustproof Ingress Protection Test Equipment Access Probes 1

Model	HT-I01
Name	Test probe A
Rigid test ball diameter (metal)	SФ50+0.05 0
Baffle diameter (nylon)	Ф45±0.2
Baffle thickness	4
Handle diameter	Ф10
Handle length (nylon)	100
Force	----

Model	HT-I02
Name	Standard Test Finger
Joint 1	30±0.2
Joint 2	60±0.2
Finger length	80±0.2
Fingertip to baffle	180±0.2
Cylindrical	R2±0.05
Spherical	R4±0.05
Fingertip cutting bevel angle	37^o 0 -10′
Fingertip taper	14^o 0 -10′
Test finger diameter	Ф12 0 -0.05
A-A Section diameter	Ф50
A-A Section width	20±0.2
Baffle diameter	Ф75±0.2
Baffle thickness	5±0.5
Force	----
